45 degree dvl off flue collar to dvl adapter?

Post in 'The Hearth Room - Wood Stoves and Fireplaces' started by lethal dose, Jan 29, 2011.

  1. lethal dose

    lethal dose Member

    Joined:
    Jan 10, 2011
    Messages:
    133
    Loc:
    eastern ohio
    Can you run a 45 off the stove to offset the appliance from where the stack will pass through the wall? I might move my stove upstairs in which case I would remove a window and plywood it in to do my pass through so I wouldn't have to cut through walls. Thing is, that window is close to my t.v. (which I'm not gonna move) so I wanted to offset the stove to the left of the window.

    Helpful Sponsor Ads!





  2. lethal dose

    lethal dose Member

    Joined:
    Jan 10, 2011
    Messages:
    133
    Loc:
    eastern ohio
    To be more clear... I have a flue to dvl adapter... I would run the 45 off it to my telescoping dvl, then to my 90 degree dvl elbow, then dvl to passthrough.
  3. bogydave

    bogydave Minister of Fire

    Joined:
    Dec 4, 2009
    Messages:
    8,426
    Loc:
    So Cent ALASKA
    Picture would really help.
    If stove goes up stairs, down stairs won't be warm. Heat like to go up.
    How about a register above the stove?
  4. lethal dose

    lethal dose Member

    Joined:
    Jan 10, 2011
    Messages:
    133
    Loc:
    eastern ohio
    I guess what I'm trying to get at is: can you have a 45 degree doublewall elbow on your flue? I'd take a pic, but I post from my phone.
  5. begreen

    begreen Mooderator Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    46,729
    Loc:
    South Puget Sound, WA

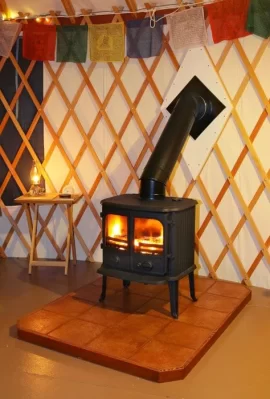

    Do you mean like this?

    Attached Files:

  6. lethal dose

    lethal dose Member

    Joined:
    Jan 10, 2011
    Messages:
    133
    Loc:
    eastern ohio
    Almost. Might not be enough angle.
  7. begreen

    begreen Mooderator Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    46,729
    Loc:
    South Puget Sound, WA
    That's an installation with a pair of Simpson 6" DVL 45's.
  8. lethal dose

    lethal dose Member

    Joined:
    Jan 10, 2011
    Messages:
    133
    Loc:
    eastern ohio
    Gotchya. Ok... could I turn the 45 off the collar so it's outlet was horizontal with the front of the stove, run my dvl, then put the 90 on and out the window?
  9. begreen

    begreen Mooderator Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    46,729
    Loc:
    South Puget Sound, WA
    Sounds possible, as long as clearances are safely met and the window pass through is done with a proper thimble+ class A pipe.
  10. lethal dose

    lethal dose Member

    Joined:
    Jan 10, 2011
    Messages:
    133
    Loc:
    eastern ohio
    Gotchya. I was just thinking I heard somewhere if you had one 45, you had to have a 2nd. Maybe I'm mistaken. Could have just been to clear an eve with two 30s or two 15s.
  11. lethal dose

    lethal dose Member

    Joined:
    Jan 10, 2011
    Messages:
    133
    Loc:
    eastern ohio
    I just don't wanna be out of compliance. Inspectors around my neck of the woods don't like to help much unless they're getting paid to do the install.
  12. Dakotas Dad

    Dakotas Dad Minister of Fire

    Joined:
    Mar 19, 2009
    Messages:
    1,343
    Loc:
    Central Kentucky
    So.. you plan to go sideways from the stove top, at a 45 degree angle, then hit a 90, which will then take you out the thimble.. Right? if so, then it should work, the angles are fine. The two 45 thing is to get back to verticle if needed. If you were running sideways and then straight up, 2 45's would need to be used, but 1 can be used for an offset, and then turned straight out of the structure with the 90..

    The problem inspection wise I think would be the through window thing, but if all clearances are met, should work, but if an inspection is needed, go talk to the inspector first, draw him a picture...
