A few pictures of our boiler systems.

Post in 'The Boiler Room - Wood Boilers and Furnaces' started by Gasifier, Nov 4, 2011.

  1. ewdudley

    ewdudley Minister of Fire

    Joined:
    Nov 17, 2009
    Messages:
    1,697
    Loc:
    Cayuga County NY
    Looks more like pharmaceutic production room, or a Confederate Air Force hangar. Not much sign of any sawdust!

    Helpful Sponsor Ads!





  2. Gasifier

    Gasifier Minister of Fire

    Joined:
    Apr 25, 2011
    Messages:
    3,137
    Loc:
    St. Lawrence River Valley, N.Y.
    Nice 711. Thanks for sharing. This is what is cool with all these pictures in one place. You never know what idea you are going to pick up from someone else. Seeing everyone elses system is sharing ideas without even talking about them. You never know when you are going to help someone elses learning curve be a little easier for them. This site does this in several ways. Very cool.
  3. 711mhw

    711mhw Feeling the Heat

    Joined:
    Dec 7, 2010
    Messages:
    415
    Loc:
    Western ME
    I like to think that I come up with an original idea now and then, but eventually I realize that I saw it somewhere else before!
  4. Gasifier

    Gasifier Minister of Fire

    Joined:
    Apr 25, 2011
    Messages:
    3,137
    Loc:
    St. Lawrence River Valley, N.Y.
    I know we all come up with are own, good, original ideas. It is just that we read and see so much with all the information we process sometimes we can't remember where it came from, if we thought of it, found it, lost it and found it again. I can not tell you how many times I am telling someone about something cool I read and can't remember where I read it. E-mail, thread, news on line, newspaper, magazine, book, etc, etc, etc.
  5. leeeallen

    leeeallen Member

    Joined:
    Oct 21, 2009
    Messages:
    46
    Loc:
    s. Maine
    711mhw
    Is that a factory smoke removing hood or did you manufacture it? Nice to keep that smoke out of the house.
  6. stee6043

    stee6043 Minister of Fire

    Joined:
    Aug 22, 2008
    Messages:
    2,350
    Loc:
    West Michigan
    Here is a shot of my setup before she got insulated. I believe I took this during one of my cleaning runs before draining and refilling...

    [​IMG]
  7. Gasifier

    Gasifier Minister of Fire

    Joined:
    Apr 25, 2011
    Messages:
    3,137
    Loc:
    St. Lawrence River Valley, N.Y.
  8. goosegunner

    goosegunner Minister of Fire

    Joined:
    Oct 15, 2009
    Messages:
    1,278
    Loc:
    WI

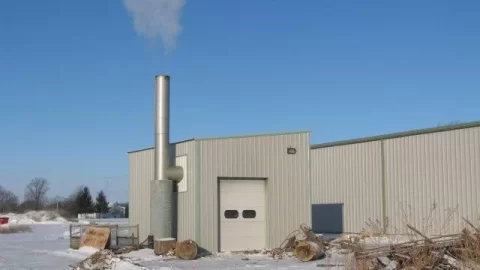

    Started the building last year October 2010. The boiler was online without storage December 2010. I am finishing the insulation of the 1000 gallon pressurized storage now.

    Boiler is in the 12'X16' area on front of building, Tank is in 6'X20' enclosed lean directly behind boiler room.

    gg

    Attached Files:

  9. Gasifier

    Gasifier Minister of Fire

    Joined:
    Apr 25, 2011
    Messages:
    3,137
    Loc:
    St. Lawrence River Valley, N.Y.
    WOW! Holy sh!t GG. That is one beautiful looking building you have there. Nice system. Where do you keep your wood supply? Thanks for posting pictures of your system.
    Fiddler likes this.
  10. goosegunner

    goosegunner Minister of Fire

    Joined:
    Oct 15, 2009
    Messages:
    1,278
    Loc:
    WI
    Thanks, Its been quite a project.

    I have rolling carts that I can get about a weeks worth of wood on. I keep that in the boiler building, it dries very nice. I have enough wood in the big building to carry me through the snow months. I have another 25 full cords cut and out of sight. I do have to handle my wood more than I like but I will work on that in the near future.

    gg
  11. Briquetmaker

    Briquetmaker Member

    Joined:
    Sep 5, 2010
    Messages:
    58
    Loc:
    southern CT

    EW, The keystoker has a hopper feed on it?
  12. 711mhw

    711mhw Feeling the Heat

    Joined:
    Dec 7, 2010
    Messages:
    415
    Loc:
    Western ME
    Yes . It's the factory unit that I can't life without it. It even sucks the dust out of the air when it's cleaning time!
  13. infinitymike

    infinitymike Minister of Fire

    Joined:
    Aug 23, 2011
    Messages:
    1,697
    Loc:
    Long Island, NY
    She's not hooked up yet but I'm almost there!
    I have the pipe run from the garage to the oil burner which is 70 feet away.
    Tuesday my hvac guy is coming to do the hook up.

    Should be up and running by Thursday.


    [​IMG]

    [​IMG]
    The white pipe is the monoflow system that runs around the first floor.

    [​IMG]
    This is the 60 year old oil beast that I will be hooking up in parallel to the wood gun.

    I have a silly question.

    Is primary/secondary the same thing as parallel?
  14. Gasifier

    Gasifier Minister of Fire

    Joined:
    Apr 25, 2011
    Messages:
    3,137
    Loc:
    St. Lawrence River Valley, N.Y.
    Wow! Looks great Mike. It won't be long now. Good luck this week. Keep us up to date. Thanks for sharing the pics of the progress!
  15. ewdudley

    ewdudley Minister of Fire

    Joined:
    Nov 17, 2009
    Messages:
    1,697
    Loc:
    Cayuga County NY
    Yeah, pretty basic, but it's simple, efficient, and looks like it will live up to its reputation for being reliable. Off-the-shelf Honeywell and Grainger control components.

    Although it's annoying to have to take ashes out all the time, it's arguably cheaper and more convenient that maintaining a wood supply and feeding the wood boiler.

    But psychologically it's so much nicer to heat the house as warm as I want with as much wood as it takes.

    --ewd

    Attached Files:

  16. bigburner

    bigburner Feeling the Heat

    Joined:
    Aug 28, 2010
    Messages:
    438
    Mine!!

    Attached Files:

  17. Gasifier

    Gasifier Minister of Fire

    Joined:
    Apr 25, 2011
    Messages:
    3,137
    Loc:
    St. Lawrence River Valley, N.Y.
    COOL bigburner! I assume you made that! What is it? I can't tell if it is a boiler or a hot air furnace. Again, I'm technically challenged with some things. :lol: Very cool. Tell us a little about what you did there man. Thanks for sharing the pictures. That's awesome!

    My neighbor has a home made pallet burner for his large metal building that is his workshop. No insulation it that building. It gets cold in there. Until he starts driving up to the dutch doors with the Gehl skidsteer and loading 4 or 5 pallets at a time into it. The thing throws some serious heat off. Have a good one.
  18. Gasifier

    Gasifier Minister of Fire

    Joined:
    Apr 25, 2011
    Messages:
    3,137
    Loc:
    St. Lawrence River Valley, N.Y.
    Bigburner. Can you explain this system to me a little. It is a little hard for me to tell from the pictures how it works. Is that a storage tank on the right hand side there? What do you heat with it? Anymore information you could give would be appreciated. Very cool to see all the different systems.
  19. infinitymike

    infinitymike Minister of Fire

    Joined:
    Aug 23, 2011
    Messages:
    1,697
    Loc:
    Long Island, NY
    Bigburner,

    That thing is insane! That is one big burner (no pun intended)
    Based on the ladder that thing must be 15 feet high! Holy Macaroni dude.

    No need to split anything either, just throw the whole dame tree in!

    I guess you are heating half of Michigan!

    Very impressive.
  20. bigburner

    bigburner Feeling the Heat

    Joined:
    Aug 28, 2010
    Messages:
    438
    welded 1932 steam boiler rated for 30 psi [Hydro at 45 psi] Hot water 1200 gallon, about 800 ft 3" fire tube, several skids of refractory for burn chamber, set up to do up flow gasification with counter flow passages and bypass, wood loaded with two wheel dolly, door hand cranked gear box -open/closed, 4,000 gal storage [unpressurized], Heats - 9,000 sq ft shop @ 60F in slab + 2500 Sq ft house @ 70F Air to Air with under floor tile areas + 1,000 sq ft indoor pool room & 12,000 gal pool + 700 sq ft garage Air to Air [mounted on unit heater] + 800 sq ft apartment in slab, wood consumption - not sure we burn every thing [hard ,soft wet, dry] some days it seems like it is very very efficient and others not as much. My guess when burning hot [fire brick glowing] it has efficiency as good as anything out there. This is fourth season Plan on doing some stack reading this winter, find out where the short falls are in the burn cycle/air adjustment. Hope to also experiment with straw bales and wood chips.
    Fiddler likes this.
  21. Gasifier

    Gasifier Minister of Fire

    Joined:
    Apr 25, 2011
    Messages:
    3,137
    Loc:
    St. Lawrence River Valley, N.Y.
    Very cool bigburner. Thanks for sharing your system.

    Boiler guys. Is this all the systems in the boiler room forum. I think not! C'mon, we want to see pictures of your system. Does not matter what it looks like, we just like to see you heating systems! See how others do things. Never know what you might learn or what idea you might give to someone else.
  22. Gasifier

    Gasifier Minister of Fire

    Joined:
    Apr 25, 2011
    Messages:
    3,137
    Loc:
    St. Lawrence River Valley, N.Y.
    I see there are many new systems and new members. So I thought I would bring this thread up again and see if any of you want to add pics of your systems who have not already. I like to see pics of your systems. Thanks in advance.
  23. ozzie88

    ozzie88 Member

    Joined:
    May 13, 2011
    Messages:
    199
    Loc:
    maine
    All homemade here,up-draft Gasser. Works great! 2nd year in maine, Lots of welding here. Basebboard in propane tank for dhw. works great also. 330 gal. storage

    Attached Files:

  24. ozzie88

    ozzie88 Member

    Joined:
    May 13, 2011
    Messages:
    199
    Loc:
    maine
    All homemade here,up-draft Gasser. Works great! 2nd year in maine, Lots of welding here. Basebboard in propane tank for dhw. works great also. 330 gal. storage
  25. hartkem

    hartkem Member

    Joined:
    Jan 24, 2012
    Messages:
    188
    Loc:
    KC
    I just finished mine this year. Put about 5 loads through it a few weeks ago during a cold spell and it worked good. 500 gallons of pressurized storage in basement. Boiler shack about 120' from the house. Homemade A coil in forced air plenum. shack.JPG overall.JPG piping.JPG

    Attached Files:
