auger moter cb1200

[dirtcar]

can anyone tell me what auger moter goes in cb1200, my stove was built in the year 2000



[Don2222]

can anyone tell me what auger moter goes in cb1200, my stove was built in the year 2000

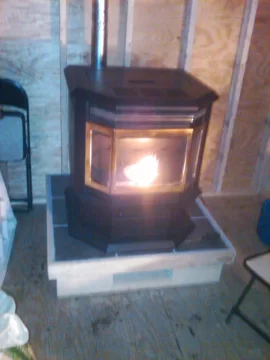

Same as mine!! Can you post pics of your stove please? After working on my Quadrafire Classic Bay CB1200 FS, I would luv to see your pics!

Also please tell me what feed setting you use in your hopper feeder lever?
See
Quadrafire Classic Bay Hopper Feeder Setting??
https://www.hearth.com/econtent/index.php/forums/viewthread/91142/

Quadrafire calls the auger motor a Feed Motor. It is 2 RPM for your stove.
Your stove model is 810-0120 and the feed motor part # is 812-3690. This motor can be ordered thru your local Quadrafire dealer. The part # is in the older manual for your stove
see
Obtaining the correct Owners Manual and Parts List for the Quadrafire Classic Bay 1200 FS or other Quad model.
https://www.hearth.com/econtent/index.php/forums/viewthread/90867/

See my posts
Quadrafire Auger renew! How is your Auger?
https://www.hearth.com/econtent/index.php/forums/viewthread/90758/

Also see
Quadrafire Classic Bay 1200FS Feed Motor and Auger Assembly - Steps to remove? Finally got it!!
https://www.hearth.com/econtent/index.php/forums/viewthread/90644/

and see
Finally, the Quadrafire Classic Bay install of the Refurbished CB1200FS with working pics
https://www.hearth.com/econtent/index.php/forums/viewthread/91157/



[imacman]

The first one listed here (2 rpm) looks like the same unit, but check the dimensions shown at the bottom of the page. Gleason Avery makes a good motor:

www.gleasonavery.com/catalog/Series-vac-gearmotors.html



[DexterDay]

Quad has a small spot to fit in the auger.

Gleason Avery makes a solid unit as imacman suggested. Just double check dimensions.

2 RPM will do it.

Whats wrong with the stove? Is your auger just not spinning on start-up? It may be the Vacuum hose is plugged? When was the last time you removed the hose from the vacuum switch and blew in to the hose towards stove?

Did you troubleshoot the vacuum switch 1st?

Just asking??? Might save you some $$$?



[dirtcar]

shouild i use auger model #812-3690 or 812-4421 for older cb1200



[imacman]

shouild i use auger model #812-3690 or 812-4421 for older cb1200

Looks like either one will work. Gleason Avery is much cheaper (IF it fits), but this one is the correct replacement for the 812-4421:

www.stove-parts-unlimited.com/Quadra_Fire_Feed_Motor_2_4_RPM_p/812-4421.htm
