kk2002

New Member
Sep 30, 2008
5
western PA
Hi! New to this forum, though i have been lurking while I was trying to decide on a new woodburner. Today I bought the Englander 30 NC, it is being delivered on Saturday. Here is one little problem i have. My existing woodburner is 5 1/2 inches taller than the new one. So I either need another piece of pipe, which i did buy, or build a base of some sort to make it higher. I would like it to be higher, (don't have to bend over as far to put logs in!! LOL)

Any suggestions as to what or how to build something to handle the weight of it? I was think of stone, but like i said, i need to raise it up about 5 inches or so. Then I thought of building a frame and doing some kind of concrete?? I only have a few days to get this built, If anyone has pictures of anything like this i would appreciate it.

Keep in mind if you do a build up that the protection from combustibles in the hearth must be at least R 1.5. If wood studs are used, that will mean some combination of insulation like Micore, and cement board on top of them. I think you'll find the 6" extension pipe a lot easier in the short run.

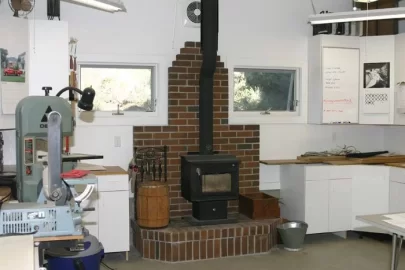

Here ya go.


Attachments

  • shopstove.jpg
    52.9 KB · Views: 147
