Building an outside wood boiler from old propane tanks.

Post in 'The Boiler Room - Wood Boilers and Furnaces' started by scottm1, Jan 30, 2012.

  1. scottm1

    scottm1 New Member

    Joined:
    Jan 30, 2012
    Messages:
    5
    Loc:
    S E Missouri
    Hi everyone. I'm new here....just signed up. I am a welder and I ran across this site searching for info on building a wood boiler using salvage propane tanks to heat my shop building. I have seen them in the past, and heard of people doing this, but at the time I didn't pay much attention because I didn't think I would be doing it. I have a 250 gallon I was going to use for the fire box, and a 500 gallon to put the 250 gallon tank into to use for the water jacket. I have already cut them open so the threat of explosion is no longer an issue and am ready to get started. I know the specifics of how a wood boiler works and their parts in them because I have been around factory built units, and homeade units that were copies of factory units. I was wondering if there was anybody on here that has built one from propane tanks, and also if there are things I can do to make the boiler more efficient, burn hotter, and use less wood, like many of the factory ones claim due the routing of the exhaust to hold the heat in longer, as opposed to just cutting a hole in the top for a flue pipe? Any opinion from the experienced would be appreciated.

    Helpful Sponsor Ads!





  2. Singed Eyebrows

    Singed Eyebrows New Member

    Joined:
    Jan 22, 2009
    Messages:
    1,420
    Loc:
    Midwest
    Welcome to Hearth, I have not built a boiler of any type. That said, hopefully you are welding up a non pressurized boiler? If you put a blower in the unit it will burn hotter & with less smoke. It will be trial & error as to placement. You can put firetubes between the 2 jackets, you need to be sure you can clean them though. Good luck, Randy
  3. scottm1

    scottm1 New Member

    Joined:
    Jan 30, 2012
    Messages:
    5
    Loc:
    S E Missouri
    yes it will be an open loop system, and I will be putting in a blower. I have a friend that has built several that are copies of the Hardy. I just felt there might be things I could do to improve its efficiency.
  4. Singed Eyebrows

    Singed Eyebrows New Member

    Joined:
    Jan 22, 2009
    Messages:
    1,420
    Loc:
    Midwest
    Fire tubes will do that, Randy
  5. Singed Eyebrows

    Singed Eyebrows New Member

    Joined:
    Jan 22, 2009
    Messages:
    1,420
    Loc:
    Midwest
    OK, I'll bite, First of all check the you tube videos on the Portage & Main Optimizer 250, while this is a gasification boiler you will at least be able to see the firetubes & ease of cleaning them. I would put tube bundles on either side of your boiler with cleanout doors at least on the front. I would make a grate about 6" wide running most of the length of your boiler & feed air from the blower under the grate, this will force a very hot fire. Run the gas through the exchangers & out the discharge. Do not make the opening for the fan large, when it shuts off you want the fire to die down. When this would be running wide open it should be a very clean boiler, when it idles you will have creosote, no way around that with a non gasser. Much of this is borrowed from a boiler that I know works. I wouldn't want to build a boiler either where the smoke would just pour right out the top of a box, Randy
  6. scottm1

    scottm1 New Member

    Joined:
    Jan 30, 2012
    Messages:
    5
    Loc:
    S E Missouri
    thanks Randy, I will check that video out
  7. Blevesque

    Blevesque Member

    Joined:
    Oct 17, 2008
    Messages:
    155
    Loc:
    Maine
  8. benjamin

    benjamin Minister of Fire

    Joined:
    Nov 7, 2009
    Messages:
    693
    Loc:
    SW WI
    The problem with most OWBs is the steel is all cold because it is in contact with water. It's difficult to get a fire to burn completely inside of a cold barrel. You need the fire to burn hot and clean to be able to get the most heat from it, then you can afford to send some of the heat up the chimney and still be ahead of most OWBs, even without any heat exchange tubes.

    Time, temperature, and turbulence, and of course oxygen are what create a hot, clean fire. I'd try to copy a design that maximises all three, probably by using blowers and fire brick/refractory.
  9. taxidermist

    taxidermist Minister of Fire

    Joined:
    Mar 11, 2008
    Messages:
    1,033
    Loc:
    Fowlerville MI
    rdzracing from this site just built one. You could pm him He lives next door to me.

    Rob
  10. ozzie88

    ozzie88 Member

    Joined:
    May 13, 2011
    Messages:
    199
    Loc:
    maine
    WELCOME!! Glad to see another welder building there own boiler. Sounds like you have good idea and start. If there is any way you could make it with couple chambers with fire brick and panels would be worth it. I seen someone els [Bob] I think, took his boiler added panels and brick works alot better. I built a indoor Gassser that works very good, I may be able to help sone? Uses propane tanks for storage water.
  11. PolarLoon

    PolarLoon New Member

    Joined:
    Mar 1, 2013
    Messages:
    2
    Loc:
    Sunrise MN
    I have built 5 boilers and the last two have been using propane tanks just like what you have in mind. These last two have been in service for 3 years now and I think it is a simple yet very effective design. Cut off the end of the 250 to make a clean end about 32" deep in the middle, cut the 500 with about 40" deep in the middle. Then I welded the small tank cut end on a piece of 1/2 plate 40" square centered and about 4" off the bottom edge, I welded a support on the bottom back end of the 250 so that it would rest on the inside of the 500. Then I cut out a 16" round door about 4" off the bottom of the 250, climbed inside and welded the inside of the 250 to the 1/2 plate. Dropped the 500 over the 250 and welded that onto the plate. I then cut a exhaust hole on the front of the plate on the top part of the 250 that connects to a 6" pipe, that way the exhaust stack never goes through the water jacket. On all my stoves I have always used a disc from a farmers disc for discing a field. The stoves I build 30 years ago still have the same disc for the doors so I know they last and work quite well. Let me know if you want more detail, I can probably get some pics together too. I heat my house and 2 barns with mine, it is all about how much wood you want to burn. I use glycol, you can get it usually for free from auto salvage yards if you bring your own 55 gal drum that way you don't have to worry about freezing anything or rusting out the boiler.
  12. ComnRailPwr

    ComnRailPwr New Member

    Joined:
    Oct 30, 2012
    Messages:
    4

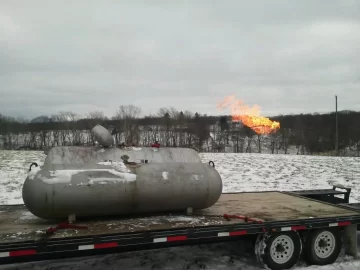

    Like this one I built this year, works excellent. Not finished yet. Got some small change to make and build the exterior. Holds 173 gallons, boiler temperature can be seen and controled from inside the house. Heats domestic with sidearm I built. 300 & 500 gallon lp tank. Hardy h4 combustion fan.eBay other details just ask. Got under 2k in the entire project. All work was done by me.

    Attached Files:

  13. PolarLoon

    PolarLoon New Member

    Joined:
    Mar 1, 2013
    Messages:
    2
    Loc:
    Sunrise MN
    Nice job too, I opted on my last two to have the flue come out the front above the door, I built a top baffle to draw from the back middle that is removable. That way less welding of stuff that goes through the water jacket. I will be starting 3 more shortly and after having issues with the oil used to add the smell to propane soaking in the metal I am going to try heating up areas where I am welding with a acetylene torch to cook the oil out. The oil kept bubbling out when I was welding the front plate on. Did you put some kind of foot on the bottom of the inside tank before welding over the big one?
  14. ComnRailPwr

    ComnRailPwr New Member

    Joined:
    Oct 30, 2012
    Messages:
    4
    No foot, the flue holds it in the back and the front plate holds the front. The flue pipe is 6" sch80 so no support worries. Flue travels through 2' of water jacket to savage as much heat from it as possible. Their is the same amount of welds inside the water jacket regardless where the flue is put, unless your water jacket doesn't cover the entire top of the boiler.
