combustion blower oil

[dubbz]

My combustion blower sleeve bearings seem to dry out every month on my Breckwell insert. Has anyone tried using a teflon oil, I'm using the recommended 20 wt motor oil in the manual. Any suggestions?



[Snowy Rivers]

Try a light weight High Temp Turbine oil.

This stuff will withstand the high temps that the sleeve bearings are exposed to and not turn to carbon like most motor oils will due.

Some of the synthetic oils designed for high temps may be a good choice too.

I have a small can of jet turbine oil that I got from a copter technician.

Snowy



[mroletta]

Would you guys mind posting a photo of where you apply the oil? I couldn't find a specific location/hole that it would go into. When I applied it last, it was at the base of the shaft and rotated it to let the oil slide down and lubricate the shaft. It only has about 5 bags through the new motor that I replaced during summer.



[jtakeman]

Only the motors with sleeve bushings will have the oil ports. Bearing motors I still put a few drops on them as the bearings only have sheilds not rubber seals.

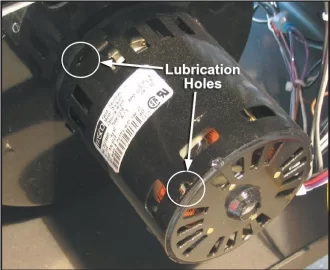

Here's a pic of the port location.
