Convection Blower is going in reverse?

Post in 'The Pellet Mill - Pellet and Multifuel Stoves' started by Northeaster2010, Dec 4, 2010.

Thread Status:
Not open for further replies.
  1. Northeaster2010

    Northeaster2010
    Expand Collapse
    Member

    Joined:
    Jun 23, 2010
    Messages:
    110
    Likes Received:
    0
    Loc:
    Southern NH
    I have a Jamestown J1000 that came with some pipe I bought, have been trying to figure out why it goes off on high temp, notice convection blower was not really putting out much air. Open the stove and watched fan, it looked like it was going in reverse. Took out blower spun the way it was going no air, spun in reverse air flowing good? Can I reverse the white and black wire to make it go this way?? Any suggestions?

    Collapse Signature Expand Signature

    Helpful Sponsor Ads!





  2. jtakeman

    jtakeman
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 30, 2008
    Messages:
    13,496
    Likes Received:
    1,572
    Loc:
    Northwestern CT.
    No changing the wires will have no effect unless its a DC motor. You will need to purchase another motor that is turning in the right direction. I would assume someone replaced the motor with the wrong shaft direction.

    Look at the shaft end of the motor and determine if you need CW or CCW. Post some pictures of the motor and housing. I'll also need the RPM. But you should be able to use one of these, here

    Check the 4th and 6th ones and they might work. I need to see the picture first!

    Collapse Signature Expand Signature
  3. Northeaster2010

    Northeaster2010
    Expand Collapse
    Member

    Joined:
    Jun 23, 2010
    Messages:
    110
    Likes Received:
    0
    Loc:
    Southern NH
    Thanks Jay, this is an original motor what would make it change direction? The following was on the motor for numbers:

    EM3030LH-85 abz-2
    115v-60Hz 48w
    Z.P. Ins. Class all
    034

    The motor has a coil off to the side, open squirrel cage type blower, not like most like my Whitfield. I'll try to post pics if I can get the size reduce.

    Collapse Signature Expand Signature
  4. SmokeyTheBear

    SmokeyTheBear
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 10, 2008
    Messages:
    13,363
    Likes Received:
    1,662
    Loc:
    Standish, ME
    Is there a capacitor in that motor circuit?

    Collapse Signature Expand Signature
  5. jtakeman

    jtakeman
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 30, 2008
    Messages:
    13,496
    Likes Received:
    1,572
    Loc:
    Northwestern CT.
    I assumed this was a shaded pole motor as most pellet stoves have them. Sounds like the coil is probably a capacitor.

    Collapse Signature Expand Signature
  6. Northeaster2010

    Northeaster2010
    Expand Collapse
    Member

    Joined:
    Jun 23, 2010
    Messages:
    110
    Likes Received:
    0
    Loc:
    Southern NH

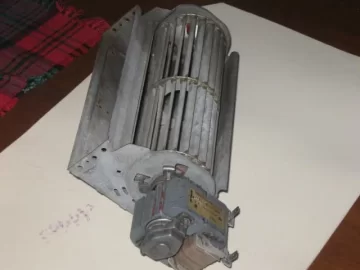

    Here is a picture of the blower with motor


    Attached Files:

    Collapse Signature Expand Signature
  7. jtakeman

    jtakeman
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 30, 2008
    Messages:
    13,496
    Likes Received:
    1,572
    Loc:
    Northwestern CT.
    You should be in luck here, It is a shaded pole motor. Maybe some one removed the motor and installed it backwards. You should be able to flip the c-frame on it to change direction.

    Collapse Signature Expand Signature
  8. hossthehermit

    hossthehermit
    Expand Collapse
    Minister of Fire

    Joined:
    May 17, 2008
    Messages:
    2,568
    Likes Received:
    533
    Loc:
    Maine, ayuh, by gorry
    Mounted backwards?????

    Collapse Signature Expand Signature
  9. jtakeman

    jtakeman
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 30, 2008
    Messages:
    13,496
    Likes Received:
    1,572
    Loc:
    Northwestern CT.
    Have you ever change direction on an auger motor? You flip the c-frame section of the motor! The c-frame is the fields.

    Collapse Signature Expand Signature
  10. Northeaster2010

    Northeaster2010
    Expand Collapse
    Member

    Joined:
    Jun 23, 2010
    Messages:
    110
    Likes Received:
    0
    Loc:
    Southern NH

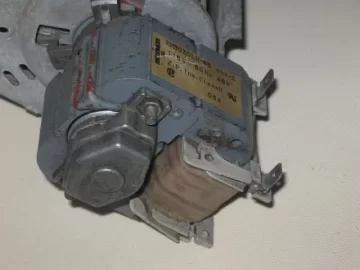

    Jay, not sure what you mean? I thought the outside was the fields and the armature was what rotated inside of it? Here is a closer pic of the motor.


    Attached Files:

    Collapse Signature Expand Signature
  11. jtakeman

    jtakeman
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 30, 2008
    Messages:
    13,496
    Likes Received:
    1,572
    Loc:
    Northwestern CT.
    You right you changing the field direction. Sorry for confusion!

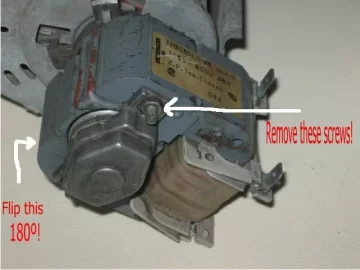

    See the attached picture!


    Attached Files:

    Collapse Signature Expand Signature
  12. Northeaster2010

    Northeaster2010
    Expand Collapse
    Member

    Joined:
    Jun 23, 2010
    Messages:
    110
    Likes Received:
    0
    Loc:
    Southern NH
    Jay, did what you said, no change in direction?? Any ideas?

    Collapse Signature Expand Signature
  13. SmokeyTheBear

    SmokeyTheBear
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 10, 2008
    Messages:
    13,363
    Likes Received:
    1,662
    Loc:
    Standish, ME
    Would you please post a picture like the first one. Need to check that it got flipped and not just rotated.

    Collapse Signature Expand Signature
  14. jtakeman

    jtakeman
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 30, 2008
    Messages:
    13,496
    Likes Received:
    1,572
    Loc:
    Northwestern CT.
    Collapse Signature Expand Signature
  15. Northeaster2010

    Northeaster2010
    Expand Collapse
    Member

    Joined:
    Jun 23, 2010
    Messages:
    110
    Likes Received:
    0
    Loc:
    Southern NH
    Had company last night now back working on stove, Jay- I understand now "I'm little thick headed", flip the fields. Now before I hook back the wires to the terminals- If I hook them up the same way the wires will be reversed? Before #1 terminal was white wire, #2 was black, if I put them back where the terminals are now the wires will be reversed? Should I hook them this way? Don't won't to fry anything..

    Collapse Signature Expand Signature
  16. SmokeyTheBear

    SmokeyTheBear
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 10, 2008
    Messages:
    13,363
    Likes Received:
    1,662
    Loc:
    Standish, ME
    Hook the same wire to the same terminal as they were when you started.

    Collapse Signature Expand Signature
  17. hossthehermit

    hossthehermit
    Expand Collapse
    Minister of Fire

    Joined:
    May 17, 2008
    Messages:
    2,568
    Likes Received:
    533
    Loc:
    Maine, ayuh, by gorry
    Yes, I knew what you meant j, and that was my first thought,as well, guess I was typin' while you wuz postin'.

    Collapse Signature Expand Signature
  18. jtakeman

    jtakeman
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 30, 2008
    Messages:
    13,496
    Likes Received:
    1,572
    Loc:
    Northwestern CT.
    Hoss, I am sure it was my lack of grammer. Never did get decent marks in English class. :) I know what I want to say its just hard saying/typing it! :lol:

    Collapse Signature Expand Signature
  19. Northeaster2010

    Northeaster2010
    Expand Collapse
    Member

    Joined:
    Jun 23, 2010
    Messages:
    110
    Likes Received:
    0
    Loc:
    Southern NH

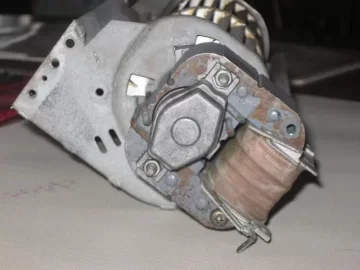

    Jay- YOUR THE MAN, It worked!!! I attached the pics of the field flipped. So far the stove is running 2hrs +/- no problems. Again thanks greatly for your help!


    Attached Files:

    Collapse Signature Expand Signature
  20. jamesdjs

    jamesdjs
    Expand Collapse
    Member

    Joined:
    Dec 6, 2008
    Messages:
    226
    Likes Received:
    0
    Loc:
    western MA
    Way to go Jay :)
    Your the Man

    Collapse Signature Expand Signature
  21. Northeaster2010

    Northeaster2010
    Expand Collapse
    Member

    Joined:
    Jun 23, 2010
    Messages:
    110
    Likes Received:
    0
    Loc:
    Southern NH
    In case anyone else has this problem or replacing the unit, putting metal tape around the duck work where the blower attaches helps allot. There is a good size gap between the blower and the duck work 1/4" =/- that air escapes.

    Collapse Signature Expand Signature
  22. jtakeman

    jtakeman
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 30, 2008
    Messages:
    13,496
    Likes Received:
    1,572
    Loc:
    Northwestern CT.
    You need to show us this new toy you just picked up. My payment is to see the new beauty!(jk)

    Collapse Signature Expand Signature
  23. SXIPro

    SXIPro
    Expand Collapse
    Minister of Fire

    Joined:
    Sep 28, 2009
    Messages:
    705
    Likes Received:
    219
    Loc:
    Northern MA
    I am impressed with the sweet animation that j-takeman did. Dude, you got skills. Well done.

    Collapse Signature Expand Signature
  24. SmokeyTheBear

    SmokeyTheBear
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 10, 2008
    Messages:
    13,363
    Likes Received:
    1,662
    Loc:
    Standish, ME
    Please read the thread that Jay posted the animation wasn't his. But as to the rest of it Jay does have skills.

    Collapse Signature Expand Signature
  25. jtakeman

    jtakeman
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 30, 2008
    Messages:
    13,496
    Likes Received:
    1,572
    Loc:
    Northwestern CT.
    Right Bear, I barrowed it from hearthtools. He deserves the credit for the animation. I love it so I use it were I can. Makes thing simpler to explain. :)

    Just paying it forward as they say. Glad I have members like Bear/imacman to back me up! I am not always right and miss some things! We have a good team here that does well together.
