"cotton" in summit insert

Post in 'The Hearth Room - Wood Stoves and Fireplaces' started by Csmith, Sep 20, 2006.

Thread Status:
Not open for further replies.
  1. Csmith

    Csmith New Member

    Joined:
    Jul 3, 2006
    Messages:
    28
    I finally got my summit installed and was putting the firebricks in and noticed in the top left and right corners, running to the back of the stove, there is a cottonish looking roll of stuff, does that stay or go?

    Helpful Sponsor Ads!





  2. BrotherBart

    BrotherBart Hearth.com LLC Mid-Atlantic Division Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    27,925
    Loc:
    Northern Virginia
    Stays. It is ceramic insulation that maintains the temperature for secondary burn. It should be enclosed in the stainless steel "floating baffle" at the top of the stove. Some probably sticks out a little.

    Toss it and you will getting out your checkbook to replace it.

    Page 13 of your owners manual.
  3. Csmith

    Csmith New Member

    Joined:
    Jul 3, 2006
    Messages:
    28
    okay, another potentially stupid question, looking at page 15 for firebricks its stating i should have

    (19) full sized bricks 9 x 4.5
    (2) 9 x 3.5
    (1) 7.25 x 4.5


    what I have is

    (17) 9 x 4.5
    (2) 9 x 3.5
    (2) 9 x (2.5 on top 4.5 on the botton) -its slanted
    (1) 4.5 x 4.5
    (1) 4.5 x 1.5

    everything looks good on the bottom (9 full sized and 1 7.25 x 4.5)
    looks good on the sides (8 full sized)

    now for the back I am left with the (2) 9 x 3.5, the two slanted full size guys, and the two small ones, am I missing something obvious here?
  4. BrotherBart

    BrotherBart Hearth.com LLC Mid-Atlantic Division Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    27,925
    Loc:
    Northern Virginia
    We will have to let RooSpike field that one. He has a Summit.
  5. BrotherBart

    BrotherBart Hearth.com LLC Mid-Atlantic Division Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    27,925
    Loc:
    Northern Virginia
    Looks like you got too many bricks. The diagram is pretty clear on which goes where for the one with the ash pan and non ash pan models.
  6. Csmith

    Csmith New Member

    Joined:
    Jul 3, 2006
    Messages:
    28
    It looks to me the instruction only describe 3 types of bricks

    9 x 4.5
    9 x 3.5
    7.25 x 4.5

    Im missing two 9 x 4.5, and in there place I have two slanted 9 x (2.25 on one side, 4.5 on the other)


    my instructions say:
    Lastly, install 2 full-size and 2 cut firebricks against the rear wall

    I have the cut firebricks (9 x 3.5) but not the two full sized
  7. BrotherBart

    BrotherBart Hearth.com LLC Mid-Atlantic Division Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    27,925
    Loc:
    Northern Virginia
    Which Summit do you have? Summit Classic, Summit or Summit insert and does it have an ash pan?
  8. Roospike

    Roospike New Member

    Joined:
    Nov 19, 2005
    Messages:
    2,859
    Loc:
    Eastern Nebraska

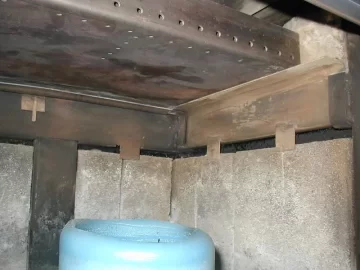

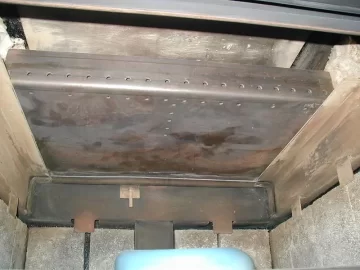

    Yeppers , The "cotton" looking baffle stays. Your secondary burn chamber at the top is a "floating" fire box and sits on the side rails and hooks to the air inlet tube in the back , make sure you have a gasket where the secondary burn chamber meets the back wall air tube inlet and the gasket is always in good shape. The cotton looking baffles go to the sides of the the burn chamber to fill the gap and it lets the burn chamber moves as the stoves heats and contracts.

    Attached Files:

  9. Roospike

    Roospike New Member

    Joined:
    Nov 19, 2005
    Messages:
    2,859
    Loc:
    Eastern Nebraska

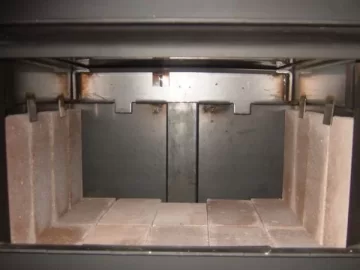

    Here are the linement of the fire bricks in my stove. If you have the insert and no ash pan clean out your will have 1 full brick vs the half brick in the lower left of the pic to cover the ash clean out hole.

    Attached Files:

  10. minesmoria

    minesmoria New Member

    Joined:
    Dec 17, 2005
    Messages:
    114


    The back side rails look rusty on its stainless steel whats going on?
  11. Roospike

    Roospike New Member

    Joined:
    Nov 19, 2005
    Messages:
    2,859
    Loc:
    Eastern Nebraska
    I couldnt figure out what you were talking about and i looked back through some threads. I think i might of mentioned the back air tube is Stainless steel. its is not. The back tube and the back rail are are standard steel. The side rails , the top secondary burn chamber , the top plate above the secondary burn chamber and the front air inlet are all stainless steel. The back tube and rail are mounted and are part of the body of the stove.
  12. Csmith

    Csmith New Member

    Joined:
    Jul 3, 2006
    Messages:
    28
    Its a summit insert

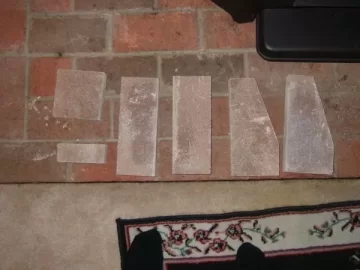

    the brick photo (the leftovers) from left to right is

    4.5 x 4.5, two 9 x 3.5 , two slanted bricks

    Attached Files:

  13. Csmith

    Csmith New Member

    Joined:
    Jul 3, 2006
    Messages:
    28
    ah! mystery solved, the printed instructions included with the stove do not match the bricks, downloaded a pdf of the instructions from PE and it matches the bricks

    Im guessing if I had an ash cleanout system installed I would notice it?
  14. Roospike

    Roospike New Member

    Joined:
    Nov 19, 2005
    Messages:
    2,859
    Loc:
    Eastern Nebraska
    Awesome , mystery solved.I noticed your angle cut bricks still on the floor.........I'm sure you took out the full bricks on the bottom and noticed the angle cut brick go to the back bottom on the right and left ? Hey i remember when my stove was that clean. Do me a favor there Smitty if you would. Take a picture & post of your Summit showing the steel top of the stove to show how thick that monster top is. Mine is covered and i thought it would be a good picture to have on hand for the forum. LETS SEE THE INSTALL TOO ! :cheese: If you have any other question ...........were always here .
  15. wg_bent

    wg_bent Minister of Fire

    Joined:
    Nov 19, 2005
    Messages:
    2,248
    Loc:
    Poughkeepsie, NY
    Good grief that things a monster. And now your gonna tell me that instead of splits, you've discovered that the PE Summit heats the house on just a candle.

    I give up! I'm goin down to Heat Revival to see if they can hook me up with a PE Summit insert. With the wood I got in my yard I'll heat the house for the next 1000 years.

    :p
  16. Willhound

    Willhound Feeling the Heat

    Joined:
    Nov 20, 2005
    Messages:
    441
    Loc:
    Northern Ontario, Canada
    OK, I wasn't going to bring it up, but.....since Warren already did.......

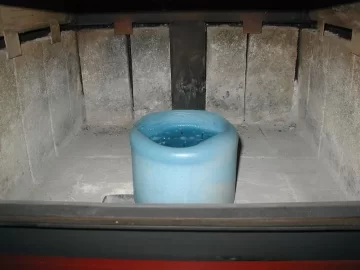

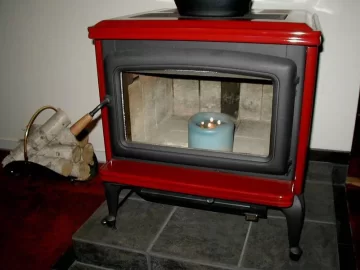

    If you put a candle in your Summit so you can look at the flames through the glass during the summer...you might officially be a Summit Junkie.

    Welcome Brother!
  17. Roospike

    Roospike New Member

    Joined:
    Nov 19, 2005
    Messages:
    2,859
    Loc:
    Eastern Nebraska
    Well that justs absurd ..........Put a candel in your Summit in durning the Summer. Sound like some kinda a nut case. :sick:

    Attached Files:

  18. Willhound

    Willhound Feeling the Heat

    Joined:
    Nov 20, 2005
    Messages:
    441
    Loc:
    Northern Ontario, Canada
    Nope, not a nut case, A Summit Junkie. I got it bad too, but I'm not jonesin' cause mine is currently lit and heating the house. Has been all day. :cheese:
  19. BrotherBart

    BrotherBart Hearth.com LLC Mid-Atlantic Division Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    27,925
    Loc:
    Northern Virginia
    If my fireplace was one inch wider I would probably have one of these Summit inserts on the way.

    http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&item=200028294897

    I don't exactly know what the guy's game is. PE does not list him as a dealer and his place isn't in the Hereford, TX phone book that I can find. But $2,195 freight paid and no local sales tax would be tempting. I would have to keep it quiet because my uncle is a hearth dealer in that same town.

    Of course I will probably buy a Vogelzang just to drive the Forum nuts.
  20. Roospike

    Roospike New Member

    Joined:
    Nov 19, 2005
    Messages:
    2,859
    Loc:
    Eastern Nebraska
    Thats a good price there BB . $2195. WITH gold door and FREE shipping. The Chimney sweep on line prices are real good and they are $2275.00 + $30.00 EPA tax + $$365.00 shipping to your door. ( $2690.oo ) That Ebay seller has been around for a wile selling stoves. (Ebay Member since: Jan-23-99) Saving $495.00 is $495.00 and thats a lot of cha-ching. ALSO that would mean you would only need to have 3 splits of wood for the whole YEAR to heat your house ! ;-)
  21. Willhound

    Willhound Feeling the Heat

    Joined:
    Nov 20, 2005
    Messages:
    441
    Loc:
    Northern Ontario, Canada
    Hey BB
    I know you were considering a Summit, but sounds like you now don't think it will fit? I know mine was about an inch too wide also, or rather, the fireplace opening was about an inch too narrow, but just right at the very front where the brick facing was un-even. My installer chipped the brick back a bit to make it fit, and I knew the surround would cover it up and figured I had no plans to go back to a plain open fireplace anyways.

    As far as the e-bay guy goes, he could be from anywhere and just listing Hereford as a location. Sounds like a good deal, and judging from the number of units and the door choices, he has to be a dealer, or connected to a dealer someplace. Maybe masking who he is so as not to draw the wrath of other PE dealers or the factory. I know they make a big thing about the fact that they don't sell factory direct, or condone their dealers selling over the internet.
