DIY Fröling install

Post in 'The Boiler Room - Wood Boilers and Furnaces' started by ktm010, Sep 25, 2013.

  1. ktm010

    ktm010 New Member

    Joined:
    Dec 23, 2012
    Messages:
    37
    Loc:
    Albany, NY
    After viewing this site for the last two years decided to tackle this project, with lots of help of course. First bit of advise plan your project well in advance if possible(something I never do well). I'll try to explain things as I go with pictures hopefully giving someone else ideas or info as this site has given me. First picture is house to be heated and the location of the garage which the boiler will live in. Also where my first of many mistakes was made. First plan was to have the garage radiant run off the house boiler as a zone, using 1" pex not even tru 1" ID non oxygen barrier of course (mistake). DSC03083.JPG
    __dan likes this.

    Helpful Sponsor Ads!





  2. ktm010

    ktm010 New Member

    Joined:
    Dec 23, 2012
    Messages:
    37
    Loc:
    Albany, NY

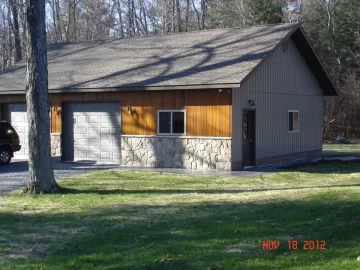

    I'll try to bring this project up to date since the garage was started two years ago. Garage is now complete on the exterior just not finished inside . I decided to tackle the heat project first making it easier to finish inside later.

    Attached Files:

    Last edited: Sep 25, 2013
  3. maple1

    maple1 Minister of Fire

    Joined:
    Sep 15, 2011
    Messages:
    4,149
    Loc:
    Nova Scotia
    Well I'd say the garage was definitely a success. Very nice!
  4. BoilerMan

    BoilerMan Minister of Fire

    Joined:
    Apr 16, 2012
    Messages:
    1,605
    Loc:
    Northern Maine
    What did you use for siding on the gable end as well as the vertical wood?

    TS
  5. ktm010

    ktm010 New Member

    Joined:
    Dec 23, 2012
    Messages:
    37
    Loc:
    Albany, NY
    [Alsoquote="ktm010, post: 1527760, member: 25623"][/quote]

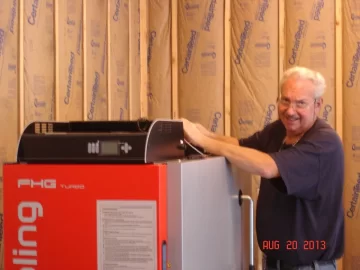

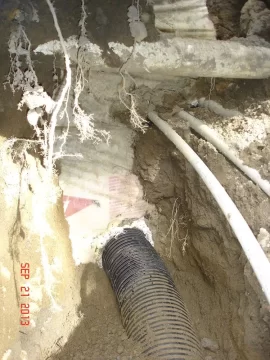

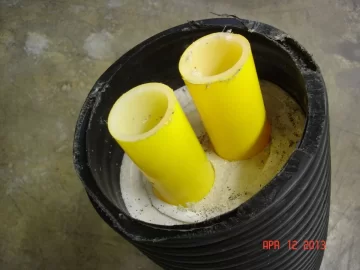

    Wood siding is 1 x 6 T&G cedar siding to match the house, the rest is same metal as used on pole barns 38" wide x length you specify when ordering. Also some more pics to try to get up to date. Mike from Advanced Radiant Design putting the boiler together. some pics of the new pex run to the house .

    Attached Files:

    Last edited: Sep 27, 2013
  6. ktm010

    ktm010 New Member

    Joined:
    Dec 23, 2012
    Messages:
    37
    Loc:
    Albany, NY

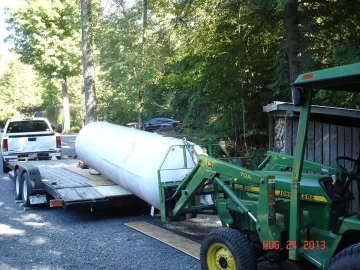

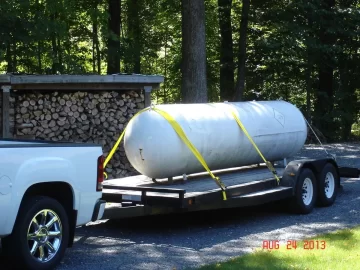

    This was the tank I purchased from Mark Schoellig at AHONA, he truly is a super nice guy to deal with. The tractor was a little undersized for the job but did finally drag it off

    Attached Files:

  7. ktm010

    ktm010 New Member

    Joined:
    Dec 23, 2012
    Messages:
    37
    Loc:
    Albany, NY

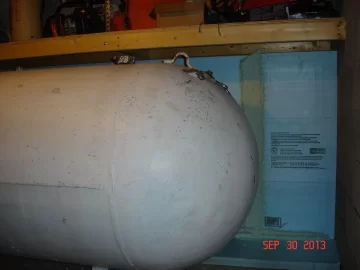

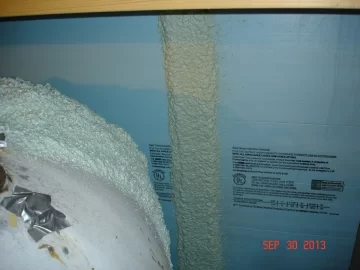

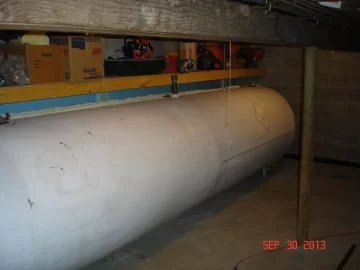

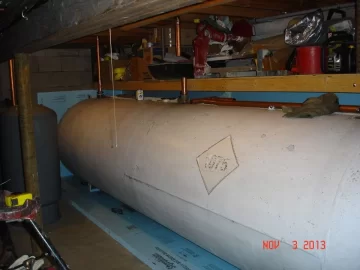

    This past weekend I put 2" foam board behind where the tank will go. Also tried spray foam on the back side of the tank cause I won't have access to it later. Then wrestled the tank to it's final resting place.

    Attached Files:

  8. BoilerMan

    BoilerMan Minister of Fire

    Joined:
    Apr 16, 2012
    Messages:
    1,605
    Loc:
    Northern Maine
    You will be very happy with STORAGE! Have you considered making a plywood "box" around the tank about a foot bigger than the tank and filling it with blown-in (cellulose) insulation?

    TS
  9. ktm010

    ktm010 New Member

    Joined:
    Dec 23, 2012
    Messages:
    37
    Loc:
    Albany, NY
    I'am sure I'll be happy with storage, but not too happy with the price of 220' of copper plus fittings ;sick made me sick. And I will be foaming the rest of the tank plus 2" foamboard around the rest when done. I think maintaining the heat in the tank is worth anything spent on insulation within reason.
  10. maple1

    maple1 Minister of Fire

    Joined:
    Sep 15, 2011
    Messages:
    4,149
    Loc:
    Nova Scotia
    Wow - where is all the copper going?

    I used a mix of copper & black iron, as much black iron as I could do without getting into threading my own pipe. It's a LOT cheaper - just make sure to use big pipe wrenches & lots of thread & dope.
  11. BoilerMan

    BoilerMan Minister of Fire

    Joined:
    Apr 16, 2012
    Messages:
    1,605
    Loc:
    Northern Maine
    Copper Copper Copper! I love beautiful copper! Show us more pics.

    TS
    skfire likes this.
  12. JP11

    JP11 Minister of Fire

    Joined:
    May 15, 2011
    Messages:
    1,211
    Loc:
    Central Maine
    1.5 inch copper. cool to see get assembled. SUCKS to pay for. You sure don't want em to cut one you won't end up needing.

    JP
  13. skfire

    skfire Feeling the Heat

    Joined:
    Nov 15, 2010
    Messages:
    309
    Loc:
    NEPA

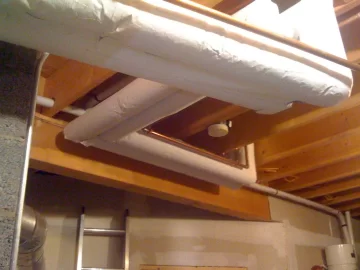

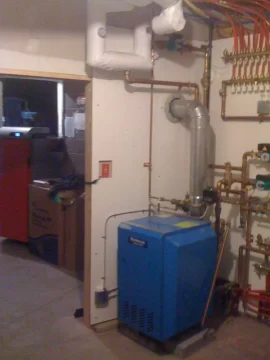

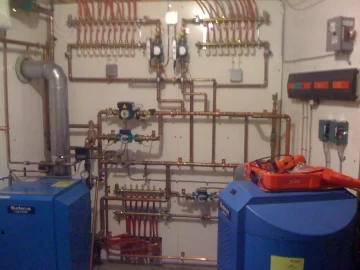

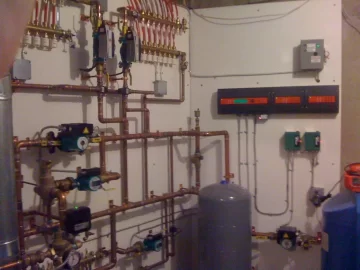

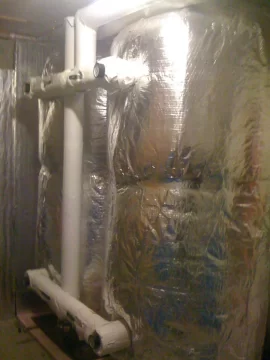

    copper, copper, copper, beautiful copper,,,,then we cover it....:eek:...could not do it to the manifold wall:p
    design, revise, redesign 10 times, so you can cut once and done==c

    good luck

    Scott

    Attached Files:

    __dan likes this.
  14. dogwood

    dogwood Minister of Fire

    Joined:
    Mar 22, 2009
    Messages:
    634
    Loc:
    Western VA
    Have you purchased all that copper already? I had 140 feet to plumb with 1-1/2" pipe on our installation. The cost of all that copper pipe and fittings was shocking. So much so, I took a chance on black iron, even though I'd never threaded any pipe before.

    I purchased a vintage threading machine on Craigslist and figured out how to use it. I was concerned the threading job on all the pipes would not be good enough, and that joints would leak. But as it turned out, there was only one leak. I used Rectorseal #5 on all the joints. If I could do this as an amateur, I'm sure anyone could, and save a considerable sum in the process.

    However, I am jealous of your Fröling and all that copper. Best of luck with your project. Should be a first class installation.

    Mike
    Last edited: Oct 3, 2013
  15. ktm010

    ktm010 New Member

    Joined:
    Dec 23, 2012
    Messages:
    37
    Loc:
    Albany, NY
    skfire yours looks very nice:) And the pipe is being deliverd in the morning.
  16. skfire

    skfire Feeling the Heat

    Joined:
    Nov 15, 2010
    Messages:
    309
    Loc:
    NEPA
    thank you.....just make sure you do not cut that pipe until all the design, layouts and take outs are set 100%.

    sk
  17. Coal Reaper

    Coal Reaper Minister of Fire

    Joined:
    Aug 10, 2012
    Messages:
    737
    Loc:
    NJ

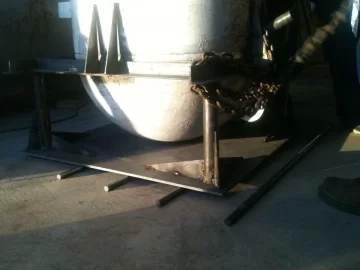

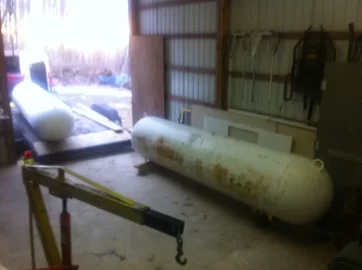

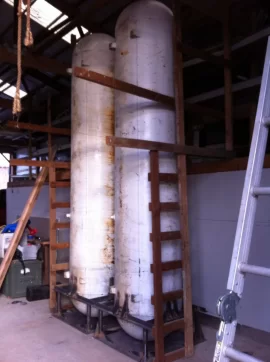

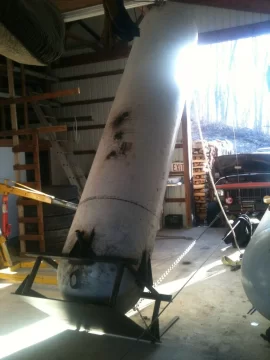

    looking good! i took my tanks off trailer with an engine hoist and one other guy. then stood up with a winch and 3/4" bars to roll into position. got er done!

    Attached Files:

  18. ktm010

    ktm010 New Member

    Joined:
    Dec 23, 2012
    Messages:
    37
    Loc:
    Albany, NY

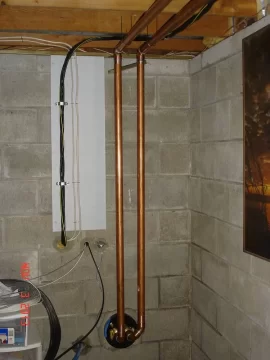

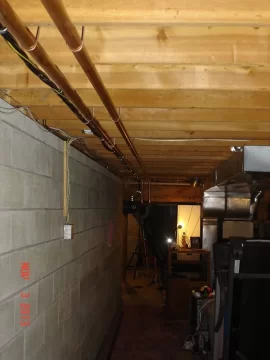

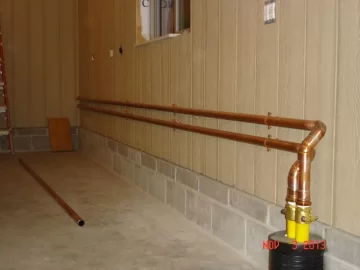

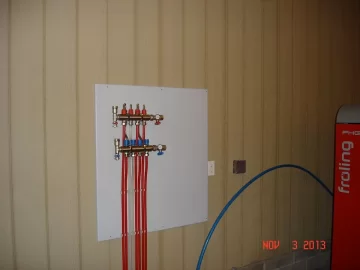

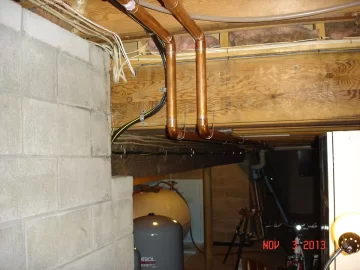

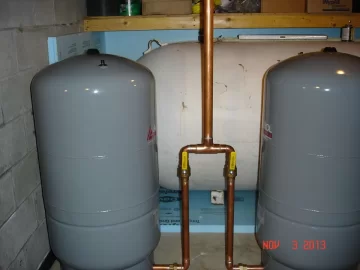

    Some progress, Garage manifold installed. Pex entry into garage, copper heading towards the wood boiler. Then Pex entry into house heading toward the 1000 gal storage tank, two expansion tanks installed. And that's about it for now. DSC03342.JPG DSC03343.JPG DSC03344.JPG DSC03345.JPG DSC03346.JPG DSC03347.JPG DSC03348.JPG
    Last edited: Nov 4, 2013
  19. ktm010

    ktm010 New Member

    Joined:
    Dec 23, 2012
    Messages:
    37
    Loc:
    Albany, NY

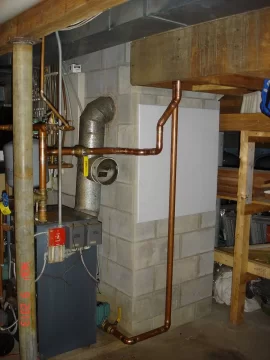

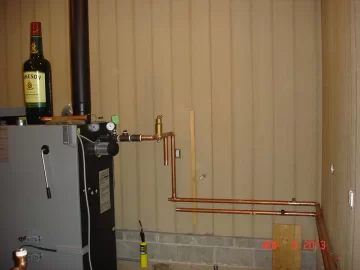

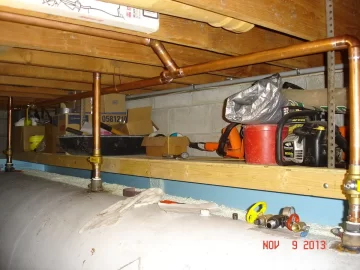

    Hello copper heads !! finished storage tank tie in, and boiler tie in, and started garage boiler work.

    Attached Files:

  20. kopeck

    kopeck Minister of Fire

    Joined:
    Mar 24, 2011
    Messages:
    530
    Loc:
    Maine
    Look at all that copper! Very nice work!

    K
  21. ktm010

    ktm010 New Member

    Joined:
    Dec 23, 2012
    Messages:
    37
    Loc:
    Albany, NY

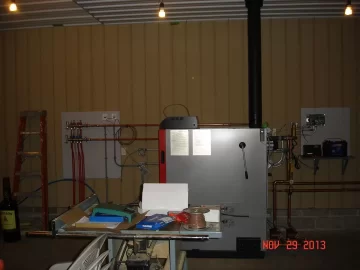

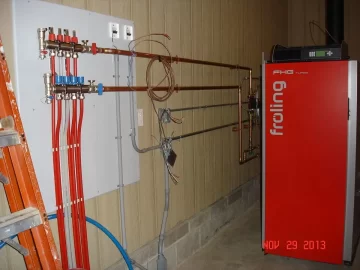

    Finally all the copper is in, except the future modine heater. Started the electrical work. It has been quite the project so far, a little overwhelming. Lots of help from Mark Schoellig from AHONA I can't believe he hasn't changed his phone number yet;lol. Also the people from Tarm biomass have been great also. Been learning a lot never ran emt before, lots of soldering. My friend is a pipe fitter by trade as you can see he lays out all the work for me, now I see where the word "craftsperson" comes from.

    Attached Files:

    __dan likes this.
  22. __dan

    __dan Feeling the Heat

    Joined:
    Oct 5, 2011
    Messages:
    251
    Exactly, the work is something to derive pride and enjoyment from. That is evident in the pictures. Money well spent.

    That third picture is a nice how to shot of the near boiler piping, pumped bypass with the Termovar. Thanks for the pictures.

    You're gonna love putting wood in that thing.
  23. bro-tek

    bro-tek Member

    Joined:
    Nov 9, 2010
    Messages:
    16
    Loc:
    Canada N.B.
    That is a nice setup, is the 2nd pump at the boiler 12Vdc? that your emengency/power outage pump?
  24. ktm010

    ktm010 New Member

    Joined:
    Dec 23, 2012
    Messages:
    37
    Loc:
    Albany, NY
    Yes a sense of pride, but that doesn't mean much if it doesn't work as expected. And the 2nd pump is the emergency/power outage pump 12Vdc
  25. dogwood

    dogwood Minister of Fire

    Joined:
    Mar 22, 2009
    Messages:
    634
    Loc:
    Western VA
    Ktm010, What make and model is your 12Vdc pump? Beautiful job.

    Mike
