Drilling the auger motor shaft to accommodate a new auger with cotter pin?

Post in 'The Pellet Mill - Pellet and Multifuel Stoves' started by Don2222, Nov 23, 2012.

  1. Don2222

    Don2222
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 1, 2010
    Messages:
    7,718
    Likes Received:
    446
    Loc:
    Salem NH
    Hello

    The new auger I got has a hole and cotter ping. Has anyone successfully drilled a hole through the case hardened tool steel auger motor shaft? It is very hard!

    I hear this 1/8" inch diameter 118 degrees carbide tipped die drill like this is needed? $11.23
    http://dewitt-tool.com/dadie18diedrills.aspx

    Collapse Signature Expand Signature

    Helpful Sponsor Ads!





  2. SmokeyTheBear

    SmokeyTheBear
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 10, 2008
    Messages:
    13,363
    Likes Received:
    1,662
    Loc:
    Standish, ME
    That is what jigs, clamps, and a drill press are good for.

    Collapse Signature Expand Signature
    343amc likes this.
  3. MountainSean

    MountainSean
    Expand Collapse
    Credo Quia Absurdum

    Joined:
    Sep 29, 2011
    Messages:
    341
    Likes Received:
    61
    Loc:
    Tonopah, NV
    Yep. Nice drill press with an industrial diamond drill bit. Goes through hardened steel so nice.

    Collapse Signature Expand Signature
  4. Don2222

    Don2222
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 1, 2010
    Messages:
    7,718
    Likes Received:
    446
    Loc:
    Salem NH
    Hi Mountain Sean
    Why do most diamond bits like this 1/8" state only for tile and glass? $7.75 is more in my budget.
    http://www.discountdiamondbits.com/18quot-diamond-drill-b18.html

    Would this for $50 for a .122 inch work better. 0.122 is little smaller that the 0.125 1/8" I need and out of my budget.
    http://www.ukam.com/diamond_solid_thin_drills.htm

    Do either of the above do case hardened tool steel also?

    Collapse Signature Expand Signature
  5. pell it

    pell it
    Expand Collapse
    Feeling the Heat

    Joined:
    Dec 2, 2011
    Messages:
    464
    Likes Received:
    121
    Loc:
    Rhode Island
    Order a motor from USSC for the 5660. It will have the hole in it already!

    The case hardening is only a few thousandths thick. If you properly fixture the shaft on a drill press, as previously stated, just use a couple HSS drill bits. One to get thru the case hardening (re-sharpen or dispose of after) and one to finish the job. I am surprised the shaft is case hardened and I doubt it is tool steel. If it is through-hardened tool steel, Carbide is your best bet.

    Collapse Signature Expand Signature
  6. pell it

    pell it
    Expand Collapse
    Feeling the Heat

    Joined:
    Dec 2, 2011
    Messages:
    464
    Likes Received:
    121
    Loc:
    Rhode Island
    Another tip is to kiss the shaft with a grinder where you want to start the hole. This will remove the case hardened skin and expose the softer steel below.

    BTW What diameter is that motor shaft?

    Collapse Signature Expand Signature
  7. jtakeman

    jtakeman
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 30, 2008
    Messages:
    13,496
    Likes Received:
    1,571
    Loc:
    Northwestern CT.
    I'm with pell it, Carbide all speed, little pressure(or it crumbles) with some lube. Cobalt will also work and is usually easier to find.

    Collapse Signature Expand Signature
  8. MountainSean

    MountainSean
    Expand Collapse
    Credo Quia Absurdum

    Joined:
    Sep 29, 2011
    Messages:
    341
    Likes Received:
    61
    Loc:
    Tonopah, NV
    I was just reminiscing back to my childhood days working with my grandparents in their machine shop. Nice bank of 3 drill presses with various bits for drilling through hardened steel, plate steel, or cast iron or ceramic. Pretty much whatever they needed to drill through to make whatever tool they happened to be making. I didn't mean for it to be taken as a suggestion and apologize for any confusion there.

    Collapse Signature Expand Signature
  9. Don2222

    Don2222
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 1, 2010
    Messages:
    7,718
    Likes Received:
    446
    Loc:
    Salem NH
    Interesting. So I just ordered a 1/4" and 1/8" Carbide Tip drill bits. Always learning something new!
    The 1/4" is for drilling out the set screws so I can reuse the auger. The 1/8" is for the cotter pin,

    According to dewitt the Carbide Tip Die drill bit is better for hardened steel.
    "Run at 75 to 100 surface feet per minute with steady hand feed. It is a good pratice to clear the drill from the hole to allow coolant to wash away the chips. Designed for drilling hardened steels in the range of 45-65 Rc. Note: Sizes under 11/64" are sold carbide spade construction"

    The full 100% carbide drill bit is better for Iron and what not.
    "Solid Carbide drills are designed for drilling abrasive materials when drilling accuracy must be maintained and/or when used in high temperature drilling applications. Solid Carbide drills are used on materials such as cast iron, non-ferrous alloys, high silicon aluminum, copper, plastics, bronze, hard rubber, plexiglass, and other similar materials"

    http://dewitt-tool.com/

    Collapse Signature Expand Signature
  10. jrsdws

    jrsdws
    Expand Collapse
    Feeling the Heat

    Joined:
    Feb 9, 2011
    Messages:
    430
    Likes Received:
    80
    Loc:
    Central Illinois
    100sfm for your 1/8" carbide tip drill is about 3000rpm.

    Fixturning is most important. When drilling out a pre-existing hole, your bit will have a tendency to want to bind as it's not cutting from center as designed.

    Make sure you have everything aligned perfectly and locked down tight. The case hardened skin will likely chatter and chirp and might really damage that tip, but then will go through the rest easy if it lives. Increase feed pressure to engage it harder if it starts to chatter.

    Collapse Signature Expand Signature
  11. jrsdws

    jrsdws
    Expand Collapse
    Feeling the Heat

    Joined:
    Feb 9, 2011
    Messages:
    430
    Likes Received:
    80
    Loc:
    Central Illinois
    I should add that as a machinist for 25yrs....I don't believe the 75 to 100sfm is necessary nor ideal if you cannot provide adequate steady feed....which is near impossible by hand.

    Good alignment to the hole and great work holding with a firm steady feed pressure will be key to success.

    Collapse Signature Expand Signature
  12. imacman

    imacman
    Expand Collapse
    Guest

    x2

  13. Don2222

    Don2222
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 1, 2010
    Messages:
    7,718
    Likes Received:
    446
    Loc:
    Salem NH

    Attached Files:

    Collapse Signature Expand Signature
  14. MCPO

    MCPO
    Expand Collapse
    Minister of Fire

    Joined:
    May 1, 2008
    Messages:
    2,272
    Likes Received:
    135
    Loc:
    western Ma , close to NY state border

    Collapse Signature Expand Signature
  15. bonesy

    bonesy
    Expand Collapse
    Feeling the Heat

    Joined:
    Oct 6, 2011
    Messages:
    299
    Likes Received:
    34
    Loc:
    NE PA
    I bought an after market auger motor for my BigE, don't need it yet but I noticed it does not have a hole in the motor shaft for the cotter pin that my existing setup has. Do you think this motor shaft will be hardened?

    Collapse Signature Expand Signature
  16. ironpony

    ironpony
    Expand Collapse
    Minister of Fire

    Joined:
    Jan 22, 2010
    Messages:
    2,069
    Likes Received:
    584
    Loc:
    mid-ohio via St.Croix USVI
    tap the hole in the auger and add a set screw .50 cents

    Collapse Signature Expand Signature
  17. Don2222

    Don2222
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 1, 2010
    Messages:
    7,718
    Likes Received:
    446
    Loc:
    Salem NH
    It is very hard! Hole should be min 9/64" or max 5/32" just order the carbide tip die drill bit and you will be all set!

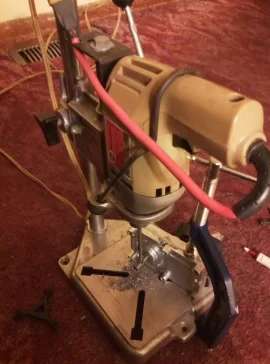

    I also used a C-Clamp to hold the motor on the stand. It worked super!

    Collapse Signature Expand Signature
  18. bonesy

    bonesy
    Expand Collapse
    Feeling the Heat

    Joined:
    Oct 6, 2011
    Messages:
    299
    Likes Received:
    34
    Loc:
    NE PA
    Im getting a bench top drill press for Christmas so that'll be my first project with it.

    Collapse Signature Expand Signature
  19. Don2222

    Don2222
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 1, 2010
    Messages:
    7,718
    Likes Received:
    446
    Loc:
    Salem NH
    Hey jmbones

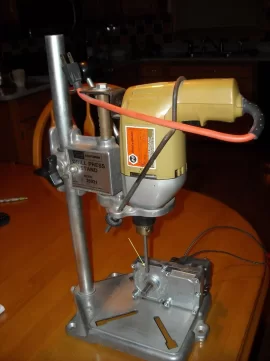

    That's cool, here is the pic of the hole. I put oil on the shaft a couple times during drilling to keep it cool. Worked great!


    Attached Files:

    Collapse Signature Expand Signature
