Econoburn 200 piping pictures

[goosegunner]

The big copper doesn't look so big in the pictures with an Econoburn 200. Still have sticker shock on copper prices!!

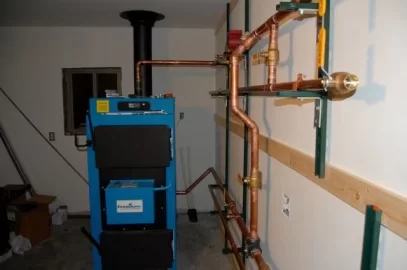

1-1/2" copper, boiler to tank.
1-1/4" copper, to logstor load.

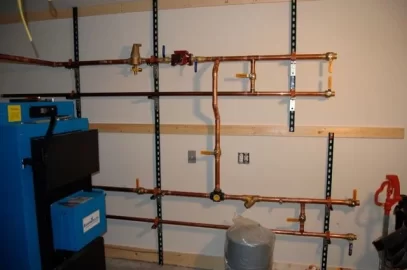

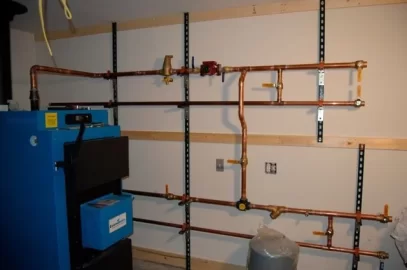

Piping spread out because I had the room and it is headed to the tank in the enclosed lean to. All added up to plenty of pipe.

Decided to do supply side circulator. Before you post it is wrong, The Danfoss Tech advised the pump on supply works well with their valve and it will aid in air elimination having it on the supply.



gg



[btuser]

I'd kill for that much room.



[sdrobertson]

Looks real good goose, nice and clean joints. Your getting close now!



[goosegunner]

Looks real good goose, nice and clean joints. Your getting close now!

Thanks but I can't take credit for the joints. My dad has been a plumber for over 40 years!

gg



[WoodChoppa]

Thanks Goose a picture is truly worth a thousand words! Is your expansion tank missing or have you replaced it with some fancy air elimination device?



[Hunderliggur]

That's a Spirovent air eiminator. I think you need a connector from the PEX to the copper though ;-)



[goosegunner]

Thanks Goose a picture is truly worth a thousand words! Is your expansion tank missing or have you replaced it with some fancy air elimination device?

Tank not connected in picture. I am going to put a T at the bottom of air vent so I can add the big expansion tank to it later. I have a small bladder tank to run the system for now. Not piped or pictured.

gg



[goosegunner]

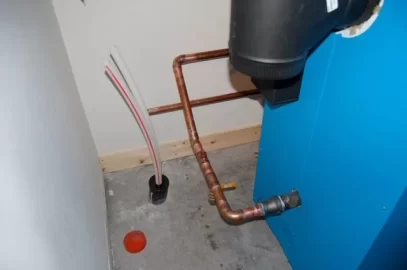

That's a Spirovent air eiminator. I think you need a connector from the PEX to the copper though ;-)

No wonder my house won't warm up....

gg



[heat4steve]

My setup is similiar to yours. I started running today and the Danfoss valve is working as expected. So you should have no problems. Nice layout!



[woodsmaster]

Looks nice ! A lot more spread out than mine. That will be nice for maintence etc. Is there a pressure relief on the boiler some where ?



[goosegunner]

Looks nice ! A lot more spread out than mine. That will be nice for maintence etc. Is there a pressure relief on the boiler some where ?

I had the room and my dad said lets put the stuff where you can get at it. Cost more for the pipe but I needed to go to the right to get to my storage tank anyway.

Pressure relief not plumbed in pictures but yes there is one on the boiler.

gg



[jwaite002]

stupid question your hot water feed from wood boiler comes off the top of your boiler right ? I have to put up some pics of my set up just to see what everyone thinks ........my layout is a little diffrent than yours it looks great bro good job



[goosegunner]

stupid question your hot water feed from wood boiler comes off the top of your boiler right ? I have to put up some pics of my set up just to see what everyone thinks ........my layout is a little diffrent than yours it looks great bro good job

Yes off the top.

Thanks

gg
