Finally Some Stove Pics

Post in 'The Pellet Mill - Pellet and Multifuel Stoves' started by Brokenwing, Feb 17, 2013.

  1. Brokenwing

    Brokenwing Feeling the Heat

    Joined:
    Feb 11, 2012
    Messages:
    451
    Loc:
    Northern Maryland

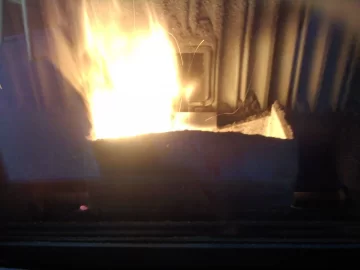

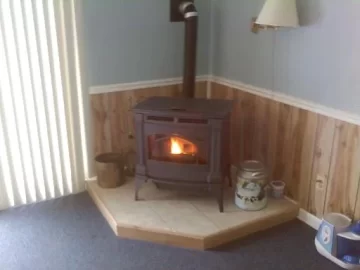

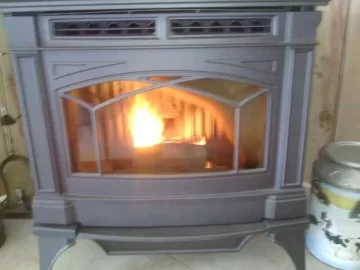

    I do not think I ever posted some decent stove pics. So here is the beast that has given me some gray hair. Ignore the foil tape on the pipe, pipe is getting pulled this summer. Anyway I noramlly burn on setting 2 and the fire is barely above the burn pot. Well it got cold, and she is crankin so here you go, I hope you enjoy.

    Attached Files:

    Helpful Sponsor Ads!





  2. Lower bucks

    Lower bucks New Member

    Joined:
    Jan 27, 2013
    Messages:
    36
    I like the corner install looks good
  3. smoke show

    smoke show Guest

  4. FS1971

    FS1971 New Member

    Joined:
    Jan 27, 2013
    Messages:
    15
    Loc:
    Dutchess County NY
    Nice stove. It's HOT!
  5. jtakeman

    jtakeman Minister of Fire

    Joined:
    Dec 30, 2008
    Messages:
    13,463
    Loc:
    Northwestern CT.
    She sure is purdy! :cool:
  6. tsmith

    tsmith Minister of Fire

    Joined:
    Sep 13, 2009
    Messages:
    750
    Loc:
    Kutztown, PA
    very nice, enjoy
  7. photogame

    photogame Member

    Joined:
    Dec 2, 2008
    Messages:
    17
    Loc:
    northern ct
    Well, now i see how someone else did a corner install. Very nice. Can you tell me what kind of connection is behind stove , a T for clean out or a just a plain 90 degree up. Also , what is outside the wall for termination of the pipe? Thank you
  8. Brokenwing

    Brokenwing Feeling the Heat

    Joined:
    Feb 11, 2012
    Messages:
    451
    Loc:
    Northern Maryland
    Thanks everyone, it has been a long road, with no support but with some Diy, foil tape, and RTV high temp sealant we have made it thus far. It is 3 degrees right now with the wind chill, and inside the house is 74 degrees. This is with the stove only running on setting 2. The stove is not centrally located, so we have a small heater upstairs. I am burning about a bag to a bag and half a day so not to bad.
  9. Brokenwing

    Brokenwing Feeling the Heat

    Joined:
    Feb 11, 2012
    Messages:
    451
    Loc:
    Northern Maryland

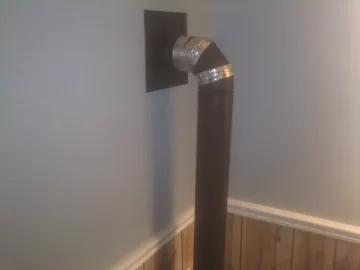

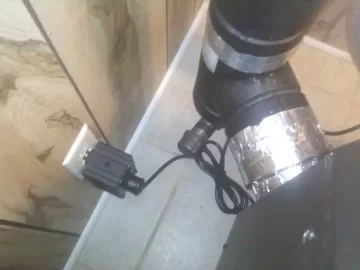

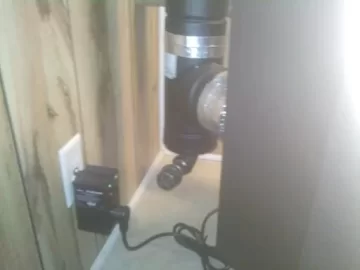

    A stove adapter comes off of the stove to a 90 degree cleanout tee, then up 3 ft to another 90 degree, and then straight out. I will post some pictures for you. As far as the hearth, I framed it with 2x3, then plywood, concrete board, and finally tile. I then skirted the whole thing in oak, after i ran it through the router to give it some character. I checked the prices on a hearth pad, and they were way to expensive. I built mine for under 100 dollars.

    Attached Files:

    Eatonpcat, smoke show and save$ like this.
  10. imacman

    imacman Guest

    Nice looking stove......don't forget the pics when the new pipe is installed. And make sure you seal the outside thimble/pipe with silicone.
  11. Brokenwing

    Brokenwing Feeling the Heat

    Joined:
    Feb 11, 2012
    Messages:
    451
    Loc:
    Northern Maryland

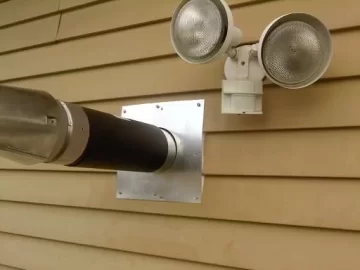

    the outside thimble is sealed, it was just to cold to go out and snap a pic last night, so I used a old pic from when i was doing this install, so he could see what it looks like lol.
  12. DexterDay

    DexterDay Guest

    Looking good!! Beautiful stove and Hearth. Glad your "issues" have finally been resolved :)

    It was disheartening to read about the smoke problems, with the condition your family member has. A Happy Ending :)
    Eatonpcat likes this.
  13. Brokenwing

    Brokenwing Feeling the Heat

    Joined:
    Feb 11, 2012
    Messages:
    451
    Loc:
    Northern Maryland
    Th
    thanks Dexter, it has been a tough battle, but I think I may okay. Keeping my fingers crossed, and thanks for the support!
    Eatonpcat and DexterDay like this.
