FLIR shots of my new Vulcan stirling stove fan

Post in 'The Hearth Room - Wood Stoves and Fireplaces' started by aries339, Nov 5, 2012.

  1. #1 aries339, Nov 5, 2012
    Last edited by a moderator: Sep 19, 2014
    aries339

    aries339
    Expand Collapse
    Member

    Joined:
    Dec 22, 2010
    Messages:
    37
    Likes Received:
    1
    Loc:
    Chicago Area

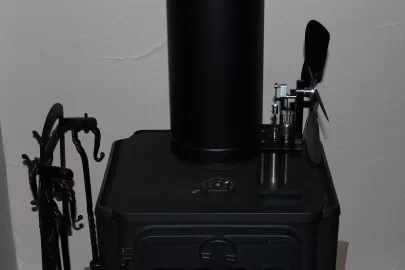

    I just set up my new Vulcan stove fan and took a few FLIR shots so I figured I'd share them! The plain-color shot is just for perspective.

    For reference, the limit of my IR camera is 518 degrees F. So the white areas in the shot are "at least" 518 degrees. The fan is in motion and has been operating for about 15 minutes when I shot these.

    I was surprised at the temperature difference just between the bottom of the base and the top of the base. Anyway, I'm not an expert on stoves, FLIR, or fans so I don't have any further analysis. Enjoy the pics. :p

    1.JPG 2.jpg fan from behind.jpg fan from the front.jpg

    Collapse Signature Expand Signature
    evilgriff likes this.

    Helpful Sponsor Ads!





  2. Heftiger

    Heftiger
    Expand Collapse
    Member

    Joined:
    Oct 20, 2011
    Messages:
    230
    Likes Received:
    26
    Loc:
    Northern CA
    Interesting. Thanks for the pics.

    Collapse Signature Expand Signature
  3. teutonicking

    teutonicking
    Expand Collapse
    Feeling the Heat

    Joined:
    Aug 18, 2011
    Messages:
    385
    Likes Received:
    267
    Loc:
    Maryland
    What do you think about the Vulcan stove fan? Do you think it makes a significant difference in distributing the heat around your home? Do you think it does a better job than just using a regular electric desk fan on the floor to blow cold air into the stove room?

    Collapse Signature Expand Signature
  4. Dunragit

    Dunragit
    Expand Collapse
    Member

    Joined:
    Dec 3, 2011
    Messages:
    94
    Likes Received:
    15
    Loc:
    OK
    Nice, how are you liking the stove?

    Collapse Signature Expand Signature
  5. burnt03

    burnt03
    Expand Collapse
    Burning Hunk

    Joined:
    Oct 30, 2011
    Messages:
    239
    Likes Received:
    67
    Loc:
    Peachland, BC, Canada
    Cool! Where'd you get the FLIR? Wish I could get my hands on one of those for a day so I could walk around my house and find all the cold spots :)

    Collapse Signature Expand Signature
  6. ridemgis

    ridemgis
    Expand Collapse
    Burning Hunk

    Joined:
    Jun 14, 2012
    Messages:
    234
    Likes Received:
    81
    Loc:
    South Kingstown, Rhode Island
    My Vulcan fan is a cool to watch conversation piece that might be helpful in a power outage. It is no match for the tiny $6 electric that moves cool air into the room. Caveat: it's sitting on a stone stove that rarely sees (so far anyway) temps north of 475-500. Perhaps on a 700 degree cast or steel surface it might really move some air.

    Collapse Signature Expand Signature
  7. aries339

    aries339
    Expand Collapse
    Member

    Joined:
    Dec 22, 2010
    Messages:
    37
    Likes Received:
    1
    Loc:
    Chicago Area
    Hey I know I am coming back to a super old thread here. I dropped off the forums for a while but I wanted to answer some of the replies.

    1) I got the FLIR from an industrial supplier. You can find them now for around $1000. I live in a very old house and wanted to find sources of heat loss.

    2) I find that the Vulcan Stove makes a big difference. Here's the thing - it isn't going to move air around your whole house. But what it does do is eliminate the hot zone around the stove. It makes the heat in the stove room much more even. It moves the heat away from the stove, and then I still use a floor fan blowing cold air into the stove room.

    3) Love the stove. Just wish I had room for a bigger one.

    Ty

    Collapse Signature Expand Signature
