Gas splitter -Air in system

Post in 'The Gear' started by gzecc, Oct 24, 2013.

  1. gzecc

    gzecc
    Expand Collapse
    Minister of Fire

    Joined:
    Sep 24, 2008
    Messages:
    4,384
    Likes Received:
    851
    Loc:
    NNJ
    My splitter seems to have an air pocket in the cylinder. It hesitates while splitting and kind of jumps forward.
    Is there any way for air to be getting into the system but not fluid to be leaking out? The fluid is also gray in color. I changed it < a year ago.

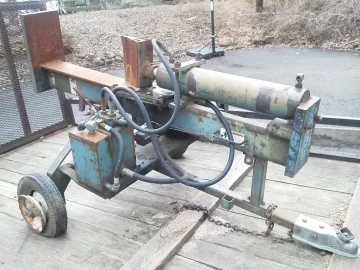

    I attached a pic from the day of its purchase, just to give an idea of the plumbing. I have replaced most of the hoses, the engine, rebuilt the cylinder etc.....
    Thanks for any help.


    Attached Files:

    Collapse Signature Expand Signature

    Helpful Sponsor Ads!





  2. #2 TreePointer, Oct 24, 2013
    Last edited: Oct 24, 2013
    TreePointer

    TreePointer
    Expand Collapse
    Minister of Fire

    Joined:
    Sep 22, 2010
    Messages:
    2,657
    Likes Received:
    1,069
    Loc:
    Western PA
    "Milky" is the general description of water in hydraulic fluid. Your description could also mean dirty or that there is cavitation (air in fluid). Any one of these is a problem.

    Milky or dirty fluid needs to be changed.

    Cavitation can be caused by an air leak in the system, not enough fluid to meet minimum system requirements, or simply not enough fluid in the reservoir. Examine your hoses for damage/cracking and especially around fittings and clamps. You can use high temperature thread sealant to ensure your fittings are air tight.

    http://www.tractorsupply.com/en/store/permatex174;-high-temperature-thread-sealant?cm_vc=-10005

  3. TreePointer

    TreePointer
    Expand Collapse
    Minister of Fire

    Joined:
    Sep 22, 2010
    Messages:
    2,657
    Likes Received:
    1,069
    Loc:
    Western PA
    When you changed the fluid a year ago, did it have this problem or did it develop it later?

  4. gzecc

    gzecc
    Expand Collapse
    Minister of Fire

    Joined:
    Sep 24, 2008
    Messages:
    4,384
    Likes Received:
    851
    Loc:
    NNJ
    When I changed it then it also looked bad. What are the likely points of failure?

    Collapse Signature Expand Signature
  5. Fifelaker

    Fifelaker
    Expand Collapse
    Minister of Fire

    Joined:
    Oct 3, 2011
    Messages:
    516
    Likes Received:
    172
    Loc:
    NW Mi
    It does not look like there is a return filter (Cheap insurance). It also looks like the return is very close to the pickup line "hopefully" there is a baffle. Without a baffle oil can swirl and pick up air. If a fitting or a hose is leaking you usually see oil. I would look at the spools in the valve, they can wear out with poor oil.

  6. gzecc

    gzecc
    Expand Collapse
    Minister of Fire

    Joined:
    Sep 24, 2008
    Messages:
    4,384
    Likes Received:
    851
    Loc:
    NNJ
    I did replace the valve, I think it was original. It has a stainer in the tank.

    Collapse Signature Expand Signature
  7. TreePointer

    TreePointer
    Expand Collapse
    Minister of Fire

    Joined:
    Sep 22, 2010
    Messages:
    2,657
    Likes Received:
    1,069
    Loc:
    Western PA
    I'd put a real filter on it just before the return line attaches to the reservoir. With the right fittings, it should screw right on. Since the return line should be low pressure (well below 30 psi), you can even use a bare hose (without fittings) with hose clamp on it (many retail splitters do).

    Something like this:
    http://www.northerntool.com/shop/tools/product_200466914_200466914

  8. blades

    blades
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 23, 2008
    Messages:
    2,143
    Likes Received:
    565
    Loc:
    WI, Milw
    That strainer could very well be plugged up with a gooey crud, if it is on the pump supply line. Seen that before with bad fluid + water mix - promotes a bacterial growth that's the gooey stuff. If the return line from the valve is at the same level as the fill port or high on the tank and not a couple inches below the max fluid level it will cause air entrainment in the hydro oil, a additional small buffer tank mounted above the main tank will resolve this. The buffer tank is connected to the fill port allowing full filling of the main tank and then acts as the breather/ expansion tank & fill port.

    Collapse Signature Expand Signature
  9. Jags

    Jags
    Expand Collapse
    Moderate Moderator
    Staff Member

    Joined:
    Aug 2, 2006
    Messages:
    17,128
    Likes Received:
    5,852
    Loc:
    Northern IL
    And you might want to look at the suction line going to the pump. Then can get weak and collapse (depending on the type of hose). This can cause a very similar condition.

    Collapse Signature Expand Signature
  10. gzecc

    gzecc
    Expand Collapse
    Minister of Fire

    Joined:
    Sep 24, 2008
    Messages:
    4,384
    Likes Received:
    851
    Loc:
    NNJ
    Can I mount a new return filter assembly in a horizonal manner?

    Collapse Signature Expand Signature
  11. TreePointer

    TreePointer
    Expand Collapse
    Minister of Fire

    Joined:
    Sep 22, 2010
    Messages:
    2,657
    Likes Received:
    1,069
    Loc:
    Western PA
    They may be mounted in various orientations, but I've seen manufacturers recommend that they be mounted with the filter hanging down form the head so that any air that gets into the filter may more easily escape the filter and subsequently be purged from the system. All the splitters I see these days have the filters mounted in this orientation.

  12. bmblank

    bmblank
    Expand Collapse
    Minister of Fire

    Joined:
    Jan 17, 2013
    Messages:
    698
    Likes Received:
    257
    Loc:
    Michigan
    Make sure when you put new oil in that you put plenty in. I had a similar problem with air getting in somehow. Spent quite a while messing with it, fixing this and that. On a hunch i filled the tank as full as i could get it, then it started working fine. Apparently there's a, for lack of being able to come up with the right word, dip tube to keep the pump from sucking sludge of the bottom (this was expected). Apparently this tube goes damn near to the top of the tank. When w filled it the first time it was just sucking the foam it made in the tank. Roached the pump like that. Beware.

    Collapse Signature Expand Signature
    TreePointer likes this.
  13. gzecc

    gzecc
    Expand Collapse
    Minister of Fire

    Joined:
    Sep 24, 2008
    Messages:
    4,384
    Likes Received:
    851
    Loc:
    NNJ
    Can I use black pipe to plumb some of it (new filter assembly) in?

    Collapse Signature Expand Signature
  14. Jags

    Jags
    Expand Collapse
    Moderate Moderator
    Staff Member

    Joined:
    Aug 2, 2006
    Messages:
    17,128
    Likes Received:
    5,852
    Loc:
    Northern IL
    Not on the pressure side. Not rated for the high pressure. Ever hear of high pressure skin injection? Google it - very convincing.

    Collapse Signature Expand Signature
  15. fire_man

    fire_man
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 6, 2009
    Messages:
    1,871
    Likes Received:
    375
    Loc:
    North Eastern MA
    You don't want to see those pictures with a full stomach....
