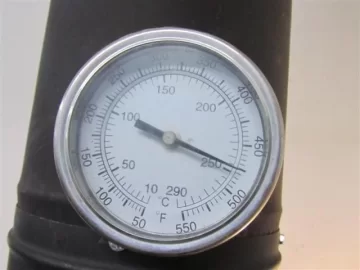

Attached are some pics of what i have going on! Any comment are appreciated.
Helpful Sponsor Ads!
Duane, Im a newbe but just been reading alot at this site and they say your supposed to burn 16 inch logs and roll them in from east to west. Looks to me your putting them in north to south. Just an observation from the picture

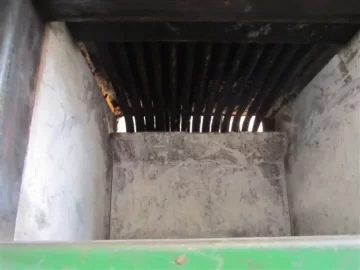

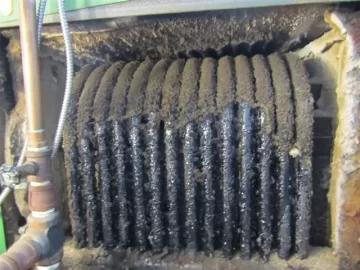

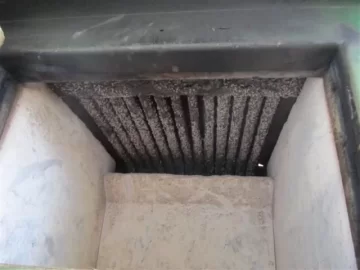

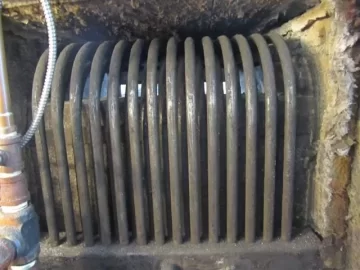

Duane your creosote looks normal or like mine if that is normal. You did a great job cleaning the tubes. The refractory is bright white which means it is burning super hot which is good. I see the insulation sticking out around the return pipe. That is good also (iseedeadbtu's) posted good info about the skins touching the black iron pipe and causing corrosion from the contact. I ground my skins away from the pipes and sealed the opening with electricians putty also known as (dumb-dumb) I sometimes throw logs in front to back if they are to long to go in the reccomended side to side. I priced out stainless steel skins from a place in Allentown PA and the ball park was about $500 for the top sides and back. I do not need them yet but that is the way I will go when the time comes. The air intake tubes are just plain old flexible exhaust pipe you can buy at an auto parts supply.

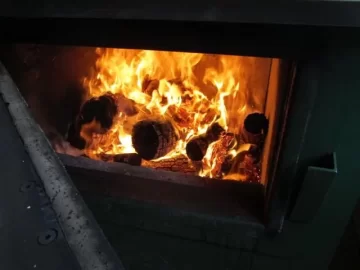

My pic of the skin did not show up in the post? ill have to reattach it when in get home, im at work for a bit. The pic of the fire is my startup fire and i just stack and stagger what i can get in there LOL i'll burn anything except treated of course, once the fires going i'll roll the big dogs in.... My stove is a 200 and will take up to a 28" log 16" dia, and 12 hour burns are not uncommon just by rolling in 3 or 4 logs which is really nice. I believe it is a bit oversized for my applicaton but i plan on adding a new garage here shortly.

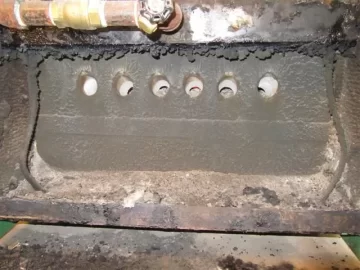

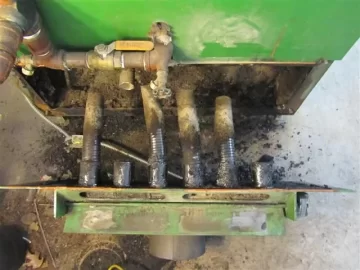

I have replaced the intake tubes already, they kept breaking off where they were welded so i turned short sleeves in the lathe and welded them to the back plate and bought new pipe that i slide into the intake holes and once i get the back plate on i slide the intake tubes up into the sleeves. The last time I put this back together i went threw a couple tubes of hi-temp gasket silicone sealing up all the holes and cracks which seemed to help a bit.
I also seen the info on the skins touching and made sure mine were not.
As for the skins my top appears to be caving in, the insulation is laying right on top of the tubes and the side panels are rusting out. I can build the panels myself and have been kicking around different ways to go about it.
One way is to "sandwich" the insulation between inner and outer skins, but i'm still thinking about it.
Did i tell you guys i love this site, so much info. I don't even have to take my boiler apart to see inside. Ive never met a more informative group.
Made a link for you 3RD video
Thanks Jesse, I appreciate that! Thanks again for the compliments.
thought your videos were great. I just purchased a Greenwood 100 furnace second hand, I am getting ready to install it and was wondering the brand of the digital controller you use?
