Harman parts numbers. This is top secret so guard this info with your life.

kinsmanstoves Posted By kinsmanstoves, Nov 16, 2012 at 10:19 AM

  1. kinsmanstoves

    kinsmanstoves
    Minister of Fire 2.
    NULL


    Aug 29, 2007
    3,476
    500
    Loc:
    Ravenna, Ohio 44266
    To help everyone with part numbers and to keep the repeated posts about looking up part numbers (like that will stop anyone). I have attached the electronic part's numbers. Remember this stuff is top secret and for Harman stove owners only. If a non-Harman stove owner reads this I will unleash SeAL team 6 on your non Harman stove owner butt. Be ready.

    If you found this useful please whisper, "Thanks Berry." three times and click the like button on the bottom.

    Eric

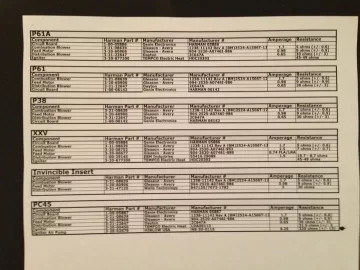

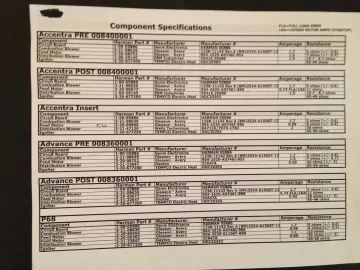

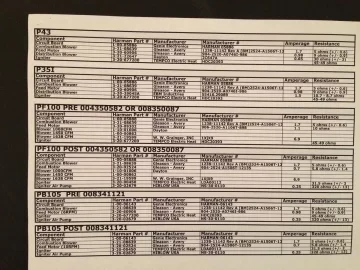

    Attached Files:

    jieba, MountainBill, F4jock and 24 others like this.
  2. P38X2

    P38X2
    Minister of Fire 2.
    NULL


    Mar 11, 2012
    1,670
    402
    Loc:
    Jaffrey, NH
    STICKY!!!!!!!

    Thanks, Berry....x3

  3. stoaf88

    stoaf88
    Member 2.
    NULL


    Oct 19, 2009
    235
    16
    Loc:
    RI
    Thanks Berry X3

    Do you know if the p61 circuit board # is for the older p61 with the ESP probe with black wires?

    I have a p61 that has black wire ESP the newer ones have the red wire ESP and use a different circuit board. The newer board has dip switches the older board does not.

    I think your part number is the right one though because from my research I came up with the same number, but its so hard to tell.

  4. kinsmanstoves

    kinsmanstoves
    Minister of Fire 2.
    NULL


    Aug 29, 2007
    3,476
    500
    Loc:
    Ravenna, Ohio 44266

    You can use either probe with the new board 1-00-05886E just change the dip switch at #5, on with red off with all others.

    Put the P-61 has a different board 1-00-06142. P-61a 3-20-677200

    Eric

  5. stoaf88

    stoaf88
    Member 2.
    NULL


    Oct 19, 2009
    235
    16
    Loc:
    RI
    Thanks

    Thats what I got as well 1-00-06142 from looking around and searching

    Wish you posted the parts list earlier, it took me an hour to find this.

    Thanks again

    kinsmanstoves likes this.
  6. dw06

    dw06
    Member 2.
    NULL


    Nov 15, 2010
    188
    9
    Loc:
    SW Pa
    Thanks Berry
    Thanks Berry
    Thanks Berry

    Hey, somebody had to do it!>>

  7. Lousyweather

    Lousyweather
    Guest 2.
    NULL


  8. BradH70

    BradH70
    Feeling the Heat 2.
    NULL


    Feb 13, 2011
    431
    35
    Loc:
    South West NH
    SEAL team 6 are all in jail for helping to make a video game with top secret information in it.

    No worries now for this Enviro/Quad owner. I'm going to sell these numbers on the black market now >>

  9. kinsmanstoves

    kinsmanstoves
    Minister of Fire 2.
    NULL


    Aug 29, 2007
    3,476
    500
    Loc:
    Ravenna, Ohio 44266

    That is what "they" want you to think. Come on!

    Eric

  10. lbcynya

    lbcynya
    Feeling the Heat 2.
    NULL


    Oct 26, 2006
    480
    61
    Loc:
    W Michigan
    Thanks. I added this to the "Harman Works..." sticky...

  11. tinkabranc

    tinkabranc
    Minister of Fire 2.
    NULL


    Oct 23, 2007
    1,643
    8
    Loc:
    South Coast MA
    Thanks Berry
    Thanks Berry
    Thanks Berry

    On ignitor # 3, I should know the dang part number by heart by now.:mad:

  12. tony58

    tony58
    Member 2.
    NULL


    Jan 23, 2011
    233
    24
    Loc:
    Joelton,Tennessee(Near Nashville)
    Thanks
    Thanks
    Thanks

  13. ivanhoe

    ivanhoe
    Feeling the Heat 2.
    NULL


    Dec 27, 2008
    262
    24
    Loc:
    great white northern ontario
    thx
    thx
    thx

  14. escobarmj

    escobarmj
    Member 2.
    NULL


    Jul 27, 2008
    110
    0
    Loc:
    RI
    Thanks Berry, I bet this will be very valuable in a pinch.

  15. dynomitecalo

    dynomitecalo
    New Member 2.
    NULL


    Jan 31, 2014
    7
    0
    Loc:
    CT
    I need a distribution blower. The shop I called today said it was on sale today and today only for $200. Originally $240.

    I check the three links out but I don't see if my Harman model is in there.

    at least to my knowledge, I have a Hamarn Accentra II. How would I know for certain if the part number I am looking for is there?

  16. Ctcarl

    Ctcarl
    Feeling the Heat 2.
    NULL


    Jan 4, 2014
    427
    76
    Loc:
    Connecticut
    Thanx saved in my cell:)

  17. mralias

    mralias
    Minister of Fire 2.
    NULL


    Apr 29, 2008
    968
    205
    Loc:
    MA
    Oh crap. I hear someone moving outside my windo.....

  18. boomhour

    boomhour
    Burning Hunk 2.
    NULL


    Apr 29, 2013
    179
    33
    Loc:
    Huntsville, ON


    Seal Team Six and your black, sooty Harman hearts are no match for the hand of God.;)


  19. railfanron

    railfanron
    Feeling the Heat 2.
    NULL


    Nov 2, 2013
    270
    54
    Loc:
    Perry MI
    Thanks!
    Thanks!
    Thanks!

  20. gfreek

    gfreek
    Minister of Fire 2.
    NULL


    Nov 5, 2010
    979
    93
    Loc:
    Beautiful Attica/Varysburg,New York
    Thanks

  21. zrtmatos

    zrtmatos
    Feeling the Heat 2.
    NULL


    Nov 26, 2012
    353
    42
    Loc:
    Connecticut
    Thanks Barry!

  22. twodogs02

    twodogs02
    Burning Hunk 2.
    NULL


    Nov 30, 2013
    140
    42
    X3 thanks berry
