Hot Water Diagram Mistakes Corrected

Post in 'The Boiler Room - Wood Boilers and Furnaces' started by Nofossil, May 1, 2008.

Thread Status:
Not open for further replies.
  1. Nofossil

    Expand Collapse
    Moderator Emeritus

    Oct 4, 2007
    Likes Received:
    Addison County, Vermont

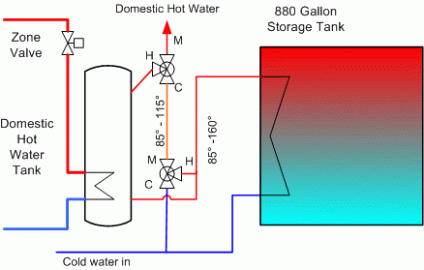

    This past winter I expanded the detail on my website, including a section on my Domestic Hot Water setup. When I generated the plumbing diagrams I made some errors. My apologies to anyone who tried to make sense of them.

    I've corrected the diagrams. The updated section is at

    This setup allows me to get three days of hot water out of a 40 gallon tank by using a pair of mixing valves and using my storage for preheating.
