How I make hot water in winter

Post in 'The Green Room' started by Walter2, Feb 11, 2014.

  1. #1 Walter2, Feb 11, 2014
    Last edited by a moderator: Feb 11, 2014
    Walter2

    Walter2
    Expand Collapse
    New Member

    Joined:
    Feb 9, 2014
    Messages:
    20
    Likes Received:
    1
    Loc:
    Maine
    image.jpg image.jpg

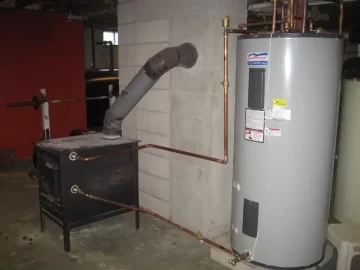

    120 gallon top element water heater connected to two flat plat collectors , wood for the cloudy days.


    Helpful Sponsor Ads!





  2. Lighting Up

    Lighting Up
    Expand Collapse
    Feeling the Heat

    Joined:
    Jan 30, 2010
    Messages:
    342
    Likes Received:
    24
    Loc:
    Roc City NY
    I wish you well with this, I've wonder if it was possible too ...but how do you by-pass the water when it's up to temp...? Also is that duck work for your stove pipe?

    Collapse Signature Expand Signature
  3. moey

    moey
    Expand Collapse
    Minister of Fire

    Joined:
    Jul 12, 2012
    Messages:
    1,305
    Likes Received:
    314
    Loc:
    Southern Maine
    Do you have a circulator somewhere? Is that a buffer tank or your main tank? Are both elements off?

    Collapse Signature Expand Signature
  4. #4 Walter2, Feb 11, 2014
    Last edited: Feb 11, 2014
    Walter2

    Walter2
    Expand Collapse
    New Member

    Joined:
    Feb 9, 2014
    Messages:
    20
    Likes Received:
    1
    Loc:
    Maine
    No pump,thermo siphon. No shut off I just close the damper. No duct work.
    I have been running like this over two yrs with no trouble, simply works.
    This is the main tank,60 gallon tempering tank is in the works.

  5. Walter2

    Walter2
    Expand Collapse
    New Member

    Joined:
    Feb 9, 2014
    Messages:
    20
    Likes Received:
    1
    Loc:
    Maine

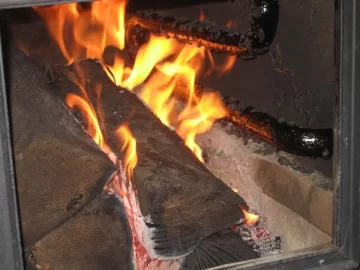

    The coil is from hillcoil New York .
    It is schedule 40 stainless and suitable for domestic water.

  6. #6 Walter2, Feb 11, 2014
    Last edited by a moderator: Feb 18, 2014
    Walter2

    Walter2
    Expand Collapse
    New Member

    Joined:
    Feb 9, 2014
    Messages:
    20
    Likes Received:
    1
    Loc:
    Maine

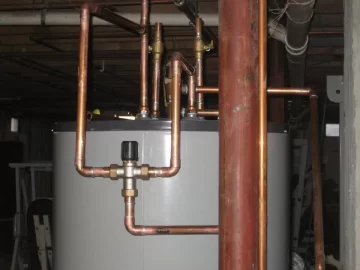

    Here is a pic of the mixing valve and heat trap so no one gets scalded. image.jpg

  7. valley ranch

    valley ranch
    Expand Collapse
    Feeling the Heat

    Joined:
    Dec 6, 2011
    Messages:
    409
    Likes Received:
    69
    Loc:
    Ranches in Sierra Nevada mts,Calif & Nevada
    Is there a small expansion tank in line some where. Do those two uprights with valves have captive air for expansion? Thanks for posting this.

    Richard

  8. Walter2

    Walter2
    Expand Collapse
    New Member

    Joined:
    Feb 9, 2014
    Messages:
    20
    Likes Received:
    1
    Loc:
    Maine

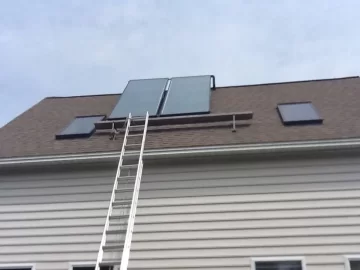

    The stubs are now connected to solar panels,in/out .

  9. Walter2

    Walter2
    Expand Collapse
    New Member

    Joined:
    Feb 9, 2014
    Messages:
    20
    Likes Received:
    1
    Loc:
    Maine
    No ex.tank, but should have one. That said its never had a problem.

  10. valley ranch

    valley ranch
    Expand Collapse
    Feeling the Heat

    Joined:
    Dec 6, 2011
    Messages:
    409
    Likes Received:
    69
    Loc:
    Ranches in Sierra Nevada mts,Calif & Nevada
    I guess you drain the solar panels in winter? Or is that a closed system with Antifreeze?

    Looks good, glad it works for you. Nice to get a system like that done instead of just thinking about it. Good for you.

  11. #11 Walter2, Feb 16, 2014
    Last edited by a moderator: Feb 18, 2014
    Walter2

    Walter2
    Expand Collapse
    New Member

    Joined:
    Feb 9, 2014
    Messages:
    20
    Likes Received:
    1
    Loc:
    Maine
    image.jpg image.jpg image.jpg

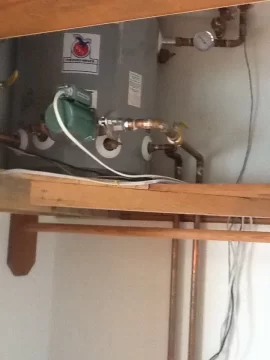

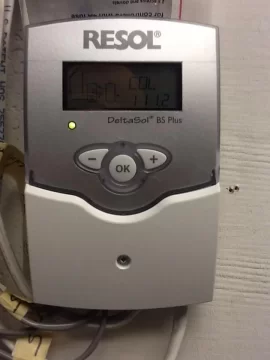

    Solar is a drain back system, it uses water. When the panels reach temp a controller starts a pump and fills the panels and when temp goes down pump stops and water gravity feed back into a 15 gallon drain back tank. The d.b.t. Has a heat exchange coil connected to the 120gal. Domestic h.w.t. Solar panel water and domestic water never mix.

  12. GENECOP

    GENECOP
    Expand Collapse
    Minister of Fire

    Joined:
    Jan 31, 2014
    Messages:
    603
    Likes Received:
    83
    Loc:
    Ny
    Nice..

    Collapse Signature Expand Signature
  13. fbelec

    fbelec
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 23, 2005
    Messages:
    1,865
    Likes Received:
    67
    Loc:
    northern massachusetts
    if you had a cloudy few days in a row and had to run the wood heater how does it run for you? do you run out or does it keep up?

    Collapse Signature Expand Signature
  14. Beardog

    Beardog
    Expand Collapse
    Member

    Joined:
    Jan 13, 2011
    Messages:
    219
    Likes Received:
    29
    Loc:
    NW CT
    That is nice. My grandfather had a similar setup through a coal stove in his basement.

    Collapse Signature Expand Signature
    Walter2 likes this.
  15. Walter2

    Walter2
    Expand Collapse
    New Member

    Joined:
    Feb 9, 2014
    Messages:
    20
    Likes Received:
    1
    Loc:
    Maine
    It keeps up.....easily. I went one full winter using just the wood generating hot water for four people!

  16. Ehouse

    Ehouse
    Expand Collapse
    Minister of Fire

    Joined:
    Jul 22, 2011
    Messages:
    906
    Likes Received:
    256
    Loc:
    Upstate NY
    I'm really interested in this thread. It's a good ,simple , low cost approach. I've been thinking of a similar setup adding a radiator loop directly above the stove to heat the bedrooms. I'm also thinking that a HPWH in the basement or somewhere in the loop would enhance it.

    Collapse Signature Expand Signature
    Walter2 likes this.
  17. GENECOP

    GENECOP
    Expand Collapse
    Minister of Fire

    Joined:
    Jan 31, 2014
    Messages:
    603
    Likes Received:
    83
    Loc:
    Ny
    Yes it's an interesting approach to heating water...it's something I know I have thought about but never got around to doing. It also goes to show that you don't have to break the bank like many of our systems do..

    Collapse Signature Expand Signature
  18. JustWood

    JustWood
    Expand Collapse
    Minister of Fire

    Joined:
    Aug 14, 2007
    Messages:
    3,594
    Likes Received:
    503
    Loc:
    Arrow Bridge,NY
    Nice work !
    I'm in the process of scrounging together cheap/free parts/fittings/pipe for a tempering tank set behind the furnace with a short coil looped on the front around the door.

    Collapse Signature Expand Signature
    Walter2 likes this.
  19. Ehouse

    Ehouse
    Expand Collapse
    Minister of Fire

    Joined:
    Jul 22, 2011
    Messages:
    906
    Likes Received:
    256
    Loc:
    Upstate NY

    Collapse Signature Expand Signature
    Walter2 likes this.
  20. TradEddie

    TradEddie
    Expand Collapse
    Minister of Fire

    Joined:
    Jan 24, 2012
    Messages:
    807
    Likes Received:
    219
    Loc:
    SE PA
    Nice. Many houses in the UK and Ireland, including the house I grew up in, have these built into an open fireplace for hot water and/or radiator heating, where they are called "back boilers" or "fireback boilers". Due to the obvious dangers, there are strict requirements which must be met.

    TE

    Collapse Signature Expand Signature
  21. Ehouse

    Ehouse
    Expand Collapse
    Minister of Fire

    Joined:
    Jul 22, 2011
    Messages:
    906
    Likes Received:
    256
    Loc:
    Upstate NY

    As to the obvious dangers, what safety/convenience features would be needed for this? Mixing valve, Pressure relief valve, Air purge, ex. tank, shutoffs etc.

    Collapse Signature Expand Signature
  22. Seasoned Oak

    Seasoned Oak
    Expand Collapse
    Minister of Fire

    Joined:
    Oct 17, 2008
    Messages:
    4,110
    Likes Received:
    723
    Loc:
    Eastern Central PA
    Tempering tank is half the battle. Bring that 45 degree water up to 75 degrees means a lot.

    Collapse Signature Expand Signature
    Walter2 likes this.
  23. #23 JustWood, Feb 19, 2014
    Last edited: Feb 19, 2014
    JustWood

    JustWood
    Expand Collapse
    Minister of Fire

    Joined:
    Aug 14, 2007
    Messages:
    3,594
    Likes Received:
    503
    Loc:
    Arrow Bridge,NY
    I'm thinking with a coil even on the outside of the door I'll achieve 100+.
    Really want to ad a passive solar earth berm room to the south side of the house this year but don't know what finances will be like. Plan on water storage/heat sink, green house,built in root cellar, and a modified oil furnace that I can run off an endless supply of veggie oil from a restaurant the lil woman manages. With the propane situation lately I'd like to have another source of heat.

    Collapse Signature Expand Signature
    Walter2 likes this.
  24. Walter2

    Walter2
    Expand Collapse
    New Member

    Joined:
    Feb 9, 2014
    Messages:
    20
    Likes Received:
    1
    Loc:
    Maine
    Veg is a pain to run in a boiler...I run my truck on veg and it is the way to go! I have a kit for a vw tdi pre 2003 if you have interest.

  25. fbelec

    fbelec
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 23, 2005
    Messages:
    1,865
    Likes Received:
    67
    Loc:
    northern massachusetts
    walter do have any idea what the water temps are going in and coming out of your unit?

    frank

    Collapse Signature Expand Signature
