How to check splitter pressure?

gzecc Posted By gzecc, Jan 16, 2013 at 11:46 AM

  1. gzecc

    gzecc
    Minister of Fire 2.
    NULL


    Sep 24, 2008
    4,400
    855
    Loc:
    NNJ
    I just ordered a new cylinder rod for my splitter. Unfortunately it comes at a considerable cost. I want to make sure the new one doesn't get bent like the old one. Is there a way to check the valve to be sure the pressure limit is working?


    Attached Files:

  2. Butcher

    Butcher
    Minister of Fire 2.
    NULL


    Nov 2, 2011
    530
    364
    Loc:
    N. central Ia.
  3. triptester

    triptester
    Feeling the Heat 2.
    NULL


    Aug 25, 2006
    305
    47
    Loc:
    S.E.Wisconsin

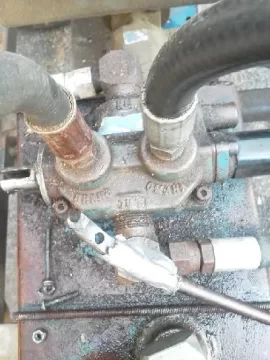

    To check pressure install a tee with gauge in the line from the pump and control valve. Adjust relief pressure with the screw under the cap on the side of the valve inlet port.

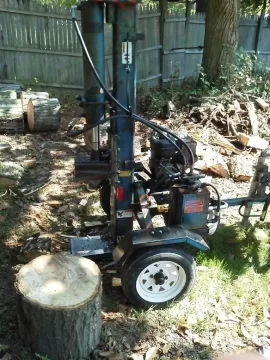

    Usually the rod gets bent due to a mechanical problem.The beam on a splitter almost always flex to some extent. In the pic of your splitter the front of the cylinder is clamped tight to the beam but the rear of the cylinder appears to be sliding away from the beam.

  4. Jags

    Jags
    Moderate Moderator 2.
    NULL

    Staff Member

    Aug 2, 2006
    17,240
    5,917
    Loc:
    Northern IL
    Run the ram to full extension and hold the lever there. If you do not stall your motor, the relief is working. This doesn't help with the pressure reading, but does confirm/deny if the relief valve functions properly.

    BrianK likes this.
  5. gzecc

    gzecc
    Minister of Fire 2.
    NULL


    Sep 24, 2008
    4,400
    855
    Loc:
    NNJ
    I will be adjusting the cylinder mounting, once I get the new rod installed. Everything will be square and parrellel.
    This was a rental splitter. It was bent when I bought it.

  6. Jags

    Jags
    Moderate Moderator 2.
    NULL

    Staff Member

    Aug 2, 2006
    17,240
    5,917
    Loc:
    Northern IL
    Also make sure that the shuttle/shoe does not have excessive wear. If it gets too sloppy, it can put undue pressure on the cylinder.

  7. gzecc

    gzecc
    Minister of Fire 2.
    NULL


    Sep 24, 2008
    4,400
    855
    Loc:
    NNJ
    Expect to do this also. Thanks
