Initial Burn of the Englander 30-NCL

Post in 'The Inglenook' started by BrotherBart, Nov 9, 2006.

Thread Status:
Not open for further replies.
  1. BrotherBart

    BrotherBart
    Expand Collapse
    Hearth.com LLC Mid-Atlantic Division
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    32,179
    Likes Received:
    9,463
    Loc:
    Northern Virginia

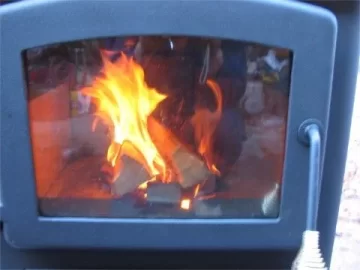

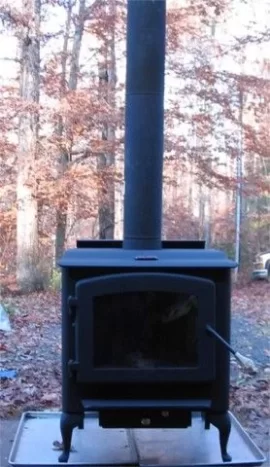

    Test fired the 30-NCL this morning in the outdoor burn lab. It was no surprise that with a four foot single wall stack in a fairly high wind that a stack temp of 200 was as high as I could get it. Lousy draft but even at that secondary went to work at a stovetop temp of 300. Oh, and keeping falling leaves off of your wood stove can be a real PITA.

    Brush off leaves. Straighten the pipe. Brush off leaves. Straighten the pipe...


    Attached Files:

    Collapse Signature Expand Signature

    Helpful Sponsor Ads!





  2. BrotherBart

    BrotherBart
    Expand Collapse
    Hearth.com LLC Mid-Atlantic Division
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    32,179
    Likes Received:
    9,463
    Loc:
    Northern Virginia

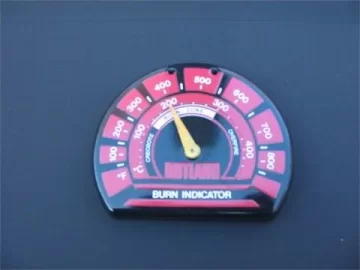

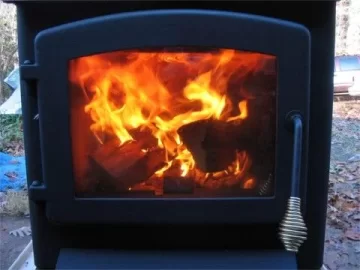

    Kicked'er up to 400 for a while and then idled at 550 for an hour or so.


    Attached Files:

    Collapse Signature Expand Signature
  3. Harley

    Harley
    Expand Collapse
    Minister of Fire

    Joined:
    Apr 11, 2006
    Messages:
    997
    Likes Received:
    1
    Loc:
    Ashfield, MA
    Congrats, BB. That's quite a lab setup you got there. Whens she moving inside?

    Collapse Signature Expand Signature
  4. Todd

    Todd
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 19, 2005
    Messages:
    9,229
    Likes Received:
    345
    Loc:
    Lake Wissota

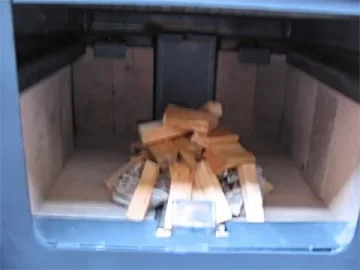

    Wow! That is a big fire box. You fit right in there. :lol:

    Collapse Signature Expand Signature
  5. BrotherBart

    BrotherBart
    Expand Collapse
    Hearth.com LLC Mid-Atlantic Division
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    32,179
    Likes Received:
    9,463
    Loc:
    Northern Virginia
    I had to squat down to get in it and damn it was hot.

    Collapse Signature Expand Signature
  6. BrotherBart

    BrotherBart
    Expand Collapse
    Hearth.com LLC Mid-Atlantic Division
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    32,179
    Likes Received:
    9,463
    Loc:
    Northern Virginia
    Three inch shorter legs are on the way to allow it to fit part way in my fireplace. Hopefully they will be here tomorrow but realistically Monday or Tuesday. Then it goes in the house and goes to work.

    Note: I just put the blower on the thing and turned it on. That thing would blow a buzzard off of garbage truck.

    Collapse Signature Expand Signature
  7. Corie

    Corie
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 18, 2005
    Messages:
    2,430
    Likes Received:
    1
    Loc:
    Halifax, VA

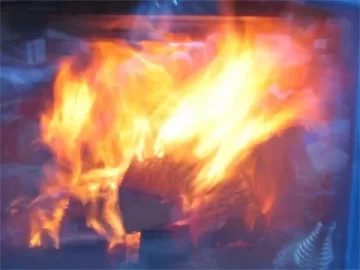

    Looks good brotherman. Is it just me, or is there something unbelievable cool seeing those flames licking out of those manifold tubes.

  8. BrotherBart

    BrotherBart
    Expand Collapse
    Hearth.com LLC Mid-Atlantic Division
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    32,179
    Likes Received:
    9,463
    Loc:
    Northern Virginia
    Yep. Darn thing has four tubes. When they all fired at once I was too busy sitting on the ground in front of it watching to mess with a camera.

    Even more incredible was that between 350 and 400 the exhaust went perfectly clear and stayed that way. With a 200 degree four foot stack! I may buy another one to keep outside and burn trash in. :coolgrin:

    Collapse Signature Expand Signature
  9. Corie

    Corie
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 18, 2005
    Messages:
    2,430
    Likes Received:
    1
    Loc:
    Halifax, VA
    Yeah that's the unbelievable part too. I couldn't believe that once the secondary was active, there was zero smoke out of stack. It stays that way for the duration of the burn too.

  10. Roospike

    Roospike
    Expand Collapse
    New Member

    Joined:
    Nov 19, 2005
    Messages:
    2,859
    Likes Received:
    3
    Loc:
    Eastern Nebraska
    Awesome Babay ! Yeah ......We have FIRE !

    Now thats what I'm talking about. I looked out East and didnt see a glow so you must of kept it under control. ( no melt down )

    You won't be putting that beast in a doll house , big ole' fat stove throwing off some monster BTU , sucking every bit of energy it can out of dem logs ........its even gotz a buzzard blower .

    BB , Whats the metal bracket up front bottom ? Air inlet or something to prevent log rolling at the door ?
    I run your first photo through the photo editer and added some light.


    Attached Files:

    Collapse Signature Expand Signature
  11. BrotherBart

    BrotherBart
    Expand Collapse
    Hearth.com LLC Mid-Atlantic Division
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    32,179
    Likes Received:
    9,463
    Loc:
    Northern Virginia
    That thing is interesting. It has a .38 caliber sized hole in the other side of it aimed right into the lower middle of the firebox. It is the primary air feed. Primary air comes in through it and also over the glass for the air wash. The primary air comes in from the back, moves under the length of the fire box and is distributed to the little tower and to the airwash by two channels up the front sides of the firebox. Secondary air has it's own inlet in the bottom rear and comes up a riser in the center back of the fire box and is distributed to both sides by channels around the top.

    I can't wait to see the havoc the stream of air from that lil hole creates when I hook it up to the monster drafting liner in the house.

    So far I love the design and the big firebox. I ain't too bashful to say that I wish the steel all the way around was twice as thick. Of course I am used to the old pup that was built like a Sherman tank and the only fire brick was on the floor of the firebox.

    Two hours ago the stove body turned Golden Glow Brown. Black door and legs. I haven't decided if I am going to put the brass trim on the door and the top lip and ash lip yet. I just want that SOB in the house and the install finished.

    Collapse Signature Expand Signature
  12. Sandor

    Sandor
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 9, 2005
    Messages:
    917
    Likes Received:
    0
    Loc:
    Deltaville,VA
    Gotta love that chimney draw at close to sea level!

    And yea, that secondary burn looks great! With a four foot chimney!

    Saw the weather BB, and it looks like your not gonna get to try her out until later next week!

    Collapse Signature Expand Signature
  13. wg_bent

    wg_bent
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 19, 2005
    Messages:
    2,248
    Likes Received:
    6
    Loc:
    Poughkeepsie, NY
    Uhhh Spike...your gettin wayy too excited. Ya forgot about that the other hot thing you have in the house.

    ;-)

    Collapse Signature Expand Signature
  14. Roospike

    Roospike
    Expand Collapse
    New Member

    Joined:
    Nov 19, 2005
    Messages:
    2,859
    Likes Received:
    3
    Loc:
    Eastern Nebraska
    O' Sorry , The other "Hot thing" was sitting on mt lap when i was typing. We ha ! Wo whO !
    ........I'll do better next time.

    Collapse Signature Expand Signature
  15. begreen

    begreen
    Expand Collapse
    Mooderator
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    59,173
    Likes Received:
    7,330
    Loc:
    South Puget Sound, WA
    Yea! Looks like a near perfect take off BB. That's one helluba trash burner. It looks like a winner.

    Take er' easy moving into the house. Ya wouldn't want to dent that new paint job, (or pop a hernia). I'm looking forward to seeing it in the new setting.

    Collapse Signature Expand Signature
  16. Corie

    Corie
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 18, 2005
    Messages:
    2,430
    Likes Received:
    1
    Loc:
    Halifax, VA
    Ya know, it seems like EVERYONE got a new stove this year.

    BeGreen, Craig, Me, BB, Elk, and all the new wood burners as well. Its going to be a good winter. I can't wait to get home to my parents house tonight (I go home on the weekends during hunting season for obvious reasons) and light a nice fire in the new stove and get one of those 8 hour burns my dad has been bragging about.

  17. Roospike

    Roospike
    Expand Collapse
    New Member

    Joined:
    Nov 19, 2005
    Messages:
    2,859
    Likes Received:
    3
    Loc:
    Eastern Nebraska
    O' Great ..........Now I'm the guy with the "Old Summit stove". :lol:

    Hey , I cleaned the Summit inside and out last Summer ..........Does that count ? :red:

    Collapse Signature Expand Signature
  18. Corie

    Corie
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 18, 2005
    Messages:
    2,430
    Likes Received:
    1
    Loc:
    Halifax, VA
    You get..............100000 points.



    Just remember, the points are like the plot in a lesbien prison movie.
