Deere10 said:
Just got an ITS 50 for dirt cheap.. Now whats the process in hooking up to an inverter? I have a 750 watt inverter Just have to get a good deep cycle battery..If you wnna email me thats fine or you can throw out the diagram on the forum.. What ever works for you is good w me.. Thanks
Click to expand...

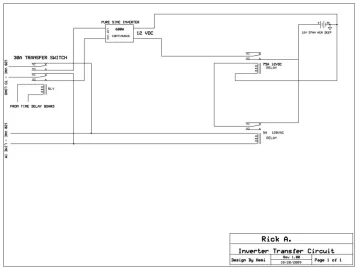

Here is the simple schematic. The ITS-50 is an overkill but if you got it dirt cheap thats good. I got the relays from Digi-Key and the other stuff I had laying around.

********DISCLAIMER********

USE THIS AT YOUR OWN RISK. THIS SCHEMATIC IS FOR INFORMATIONAL PURPOSES ONLY.


Attachments

  • PELLET BATTrework [1200X1200].jpg
    PELLET BATTrework [1200X1200].jpg
    47.2 KB · Views: 162
