Mantle heat shield installed

Post in 'The Hearth Room - Wood Stoves and Fireplaces' started by Nick Mystic, Mar 3, 2013.

  1. Nick Mystic

    Nick Mystic
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 12, 2013
    Messages:
    997
    Likes Received:
    424
    Loc:
    Western North Carolina

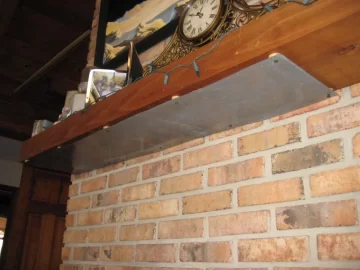

    After installing my new Jotul F 600 wood stove on my fireplace hearth extension I've been monitoring the temperature on the underside of the mantle. The clearance called for is 26" for an 11" mantle and my stove top is only 22" below my 10" mantle. When I shot it with my IR thermometer I was getting a reading around 170 F with a 400 F burn going in the stove. I could put my hand on the mantle for more than three seconds without discomfort, but I didn't have peace of mind, so I decided to install a heat shield under the mantle. I had some left over sheet metal from making my stop off plate for the fireplace, so I cut a piece 48" x 9 7/8" for the shield. I attached it with some short drywall screws and used 3/8" thick slices of bamboo for the ten spacers.

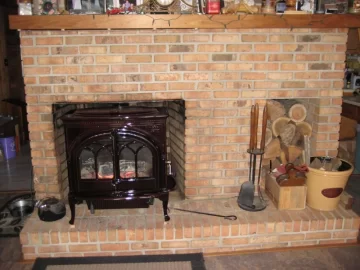

    It is not very noticeable when viewed from the front.


    I know a one inch air space is normally called for when installing heat shields, but since this application was so marginal I decided to keep it closer to the mantle for aesthetic reasons.

    Collapse Signature Expand Signature
    Billybonfire likes this.

    Helpful Sponsor Ads!





  2. EatenByLimestone

    EatenByLimestone
    Expand Collapse
    Minister of Fire

    Joined:
    Jul 12, 2006
    Messages:
    5,380
    Likes Received:
    522
    Loc:
    Schenectady, NY
    That looks pretty nice! I'd be curious how much the heat was reduced by the shield and convection. Do you have a probe by any chance you could push between the shield and mantle?

    How does the masonry work with evening out temperature swings?

    Matt

    Collapse Signature Expand Signature
  3. Nick Mystic

    Nick Mystic
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 12, 2013
    Messages:
    997
    Likes Received:
    424
    Loc:
    Western North Carolina
    Matt,
    I just took some temperature readings: Heat shield: 155 F with 375 F stove top temperature and probe reading of 122 F between heat shield and mantle. With my masonry work and temperature swings are you asking if all that solar mass from my 8' x 4' brick chimney helps store heat? If so, yes, all that solar mass stores a lot of heat. When I first got my IR thermometer I shot the backside of the chimney, which serves as a kitchen wall, and after the stove had been burning a few hours the brick was reading 78 F while the house was only about 68 F.

    Collapse Signature Expand Signature
  4. ScotO

    ScotO
    Expand Collapse
    Guest

  5. Laurent Cyr

    Laurent Cyr
    Expand Collapse
    Burning Hunk

    Joined:
    Dec 14, 2012
    Messages:
    188
    Likes Received:
    64
    Loc:
    Quebec, Canada
    Nice install, Nick!

    Laurent

    Collapse Signature Expand Signature
  6. begreen

    begreen
    Expand Collapse
    Mooderator
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    60,470
    Likes Received:
    7,633
    Loc:
    South Puget Sound, WA
    The install looks good, but for a proper shield installation, the spacers need to be non-combustible. Bamboo is definitely a combustible.

    Collapse Signature Expand Signature
    PapaDave likes this.
  7. Nick Mystic

    Nick Mystic
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 12, 2013
    Messages:
    997
    Likes Received:
    424
    Loc:
    Western North Carolina
    Yes, I know, but since the heat I'm shielding against is so marginal I'm not worried about the bamboo igniting. The mantle itself without any shielding wasn't getting too hot to place your hand on it for considerable time.

    Collapse Signature Expand Signature
  8. begreen

    begreen
    Expand Collapse
    Mooderator
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    60,470
    Likes Received:
    7,633
    Loc:
    South Puget Sound, WA
    I know and I don't mean to bust your chops but safety is safety. There could be a day like in a power outage where you are running the stove 100-150F hotter for hours if not days. Prepare your system for the worst case scenario and there'll be less panicking when it happens.

    Collapse Signature Expand Signature
  9. Nick Mystic

    Nick Mystic
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 12, 2013
    Messages:
    997
    Likes Received:
    424
    Loc:
    Western North Carolina
    I decided to heed begreen's advice on the replacing my bamboo spacers. I couldn't think of anything I readily had on hand that would fill the bill, then it occurred to me to just remove the spacers all together and just let the shield hang from the screws. I popped them out this morning and I think that will work fine. I just left the ones at the four corners, which are far enough off to the sides of the stove to meet the required clearances.

    Collapse Signature Expand Signature
    ddddddden and firefighterjake like this.
  10. begreen

    begreen
    Expand Collapse
    Mooderator
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    60,470
    Likes Received:
    7,633
    Loc:
    South Puget Sound, WA
    That'll do. I was thinking thick washers or 1" cuts of 1/2" copper pipe.

    Collapse Signature Expand Signature
  11. Nick Mystic

    Nick Mystic
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 12, 2013
    Messages:
    997
    Likes Received:
    424
    Loc:
    Western North Carolina
    Great idea! I was just about to head out to my shop to start scrounging around for something I can use for the spacers since the shield was looking a little wavy just hanging suspended. I have some scrap copper pipe from when my central AC system was replaced a couple years ago. With a pipe cutter I should be able to cut off ten spacers in a short time. Thanks for the suggestion.

    Collapse Signature Expand Signature
  12. begreen

    begreen
    Expand Collapse
    Mooderator
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    60,470
    Likes Received:
    7,633
    Loc:
    South Puget Sound, WA
    Give the shield a coat of honey brown paint and it will almost disappear.

    Collapse Signature Expand Signature
