Muffler Mod

Post in 'The Gear' started by mikefrommaine, Sep 4, 2013.

  1. #1 mikefrommaine, Sep 4, 2013
    Last edited by a moderator: Sep 4, 2013
    mikefrommaine

    mikefrommaine
    Expand Collapse
    Guest

    Here's how I did my latest muffler mod.

    I have been using the husky deflectors to add a second port. But they are expensive,and I'm cheap. I used a piece of 1/2" aluminum electrical conduit as the deflector.

    I saw mastermind and others using silver solder instead of brazing but I had an oa torch and have been looking for an excuse to learn brazing. The idea of a pipe outlet in front of the cat was 'borrowed' from mastermind :). Sure beats trying to cut or drill out the cat.

    .. So here goes, questions, comments and concerns?

    I used sketchup to measure the area of the exhaust port. I also made a template of the deflector and used that info to make a template the exact size and shape I wanted.

    [​IMG]
    [​IMG]

    Here's the template, exactly .47 square inches, which when added to the existing outlet gives me a total of 85% of the exhaust port.

    [​IMG]


    Helpful Sponsor Ads!





  2. mikefrommaine

    mikefrommaine
    Expand Collapse
    Guest

    [​IMG]
    [​IMG]

    smokinj likes this.
  3. mikefrommaine

    mikefrommaine
    Expand Collapse
    Guest

    You can see how choked up this muffler is
    [​IMG]

  4. mikefrommaine

    mikefrommaine
    Expand Collapse
    Guest

    [​IMG]

  5. mikefrommaine

    mikefrommaine
    Expand Collapse
    Guest

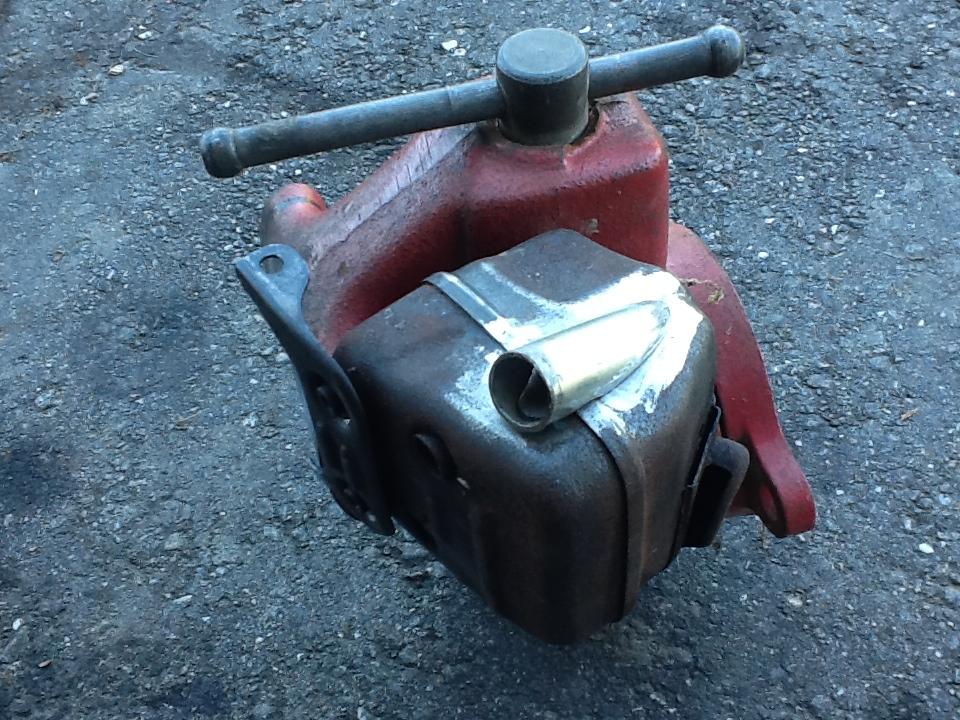

    My first attempt at brazing
    [​IMG]
    [​IMG]
    [​IMG]

    ScotO and smokinj like this.
  6. mikefrommaine

    mikefrommaine
    Expand Collapse
    Guest

    A little paint does wonders
    [​IMG]

    smokinj likes this.
  7. mikefrommaine

    mikefrommaine
    Expand Collapse
    Guest

    On the saw
    [​IMG]

    [​IMG]

    clemsonfor, ScotO and MasterMech like this.
  8. Michael Golden

    Michael Golden
    Expand Collapse
    Feeling the Heat

    Joined:
    May 17, 2012
    Messages:
    291
    Likes Received:
    59
    Loc:
    Ohio
    Looks stock! Nice job.......

    Collapse Signature Expand Signature
  9. StihlHead

    StihlHead
    Expand Collapse
    Guest

    I do shark gill slits and rivet on a Husky deflector over a screen (need that here for fire season). No torch needed.

    But nice job! Wojo wants $125 for mufflers re-welded like that on Ebay.

  10. mikefrommaine

    mikefrommaine
    Expand Collapse
    Guest

    That is a downside to this style muffler mod... Next time I'm going to extend the pipe a little and pick up a pipe spark arrestor like on the stihl cut off saws.

    [​IMG]

  11. #11 mikefrommaine, Sep 4, 2013
    Last edited by a moderator: Sep 4, 2013
    mikefrommaine

    mikefrommaine
    Expand Collapse
    Guest


    I hadn't seen that:

    http://www.ebay.com/itm/Custom-Stih...736?pt=LH_DefaultDomain_0&hash=item35cb50d048
    Up for auction one 361 custom dual port muffler. What is very unique about this is that all the steel that is added to the cover is stainless steel. I made this myself and it is all welded. A very complicated welding process where steel wire is introduced to stainless steel pipe.



    So complicated it took me, who has never welded anything, ten minutes to figure out how to get a pipe to stick to the muffler LOL. Total cost, about 35 cents.

    ScotO likes this.
  12. MasterMech

    MasterMech
    Expand Collapse
    Guest

    Sounds like a MIG gun or TIG, or Gas welding to me. TIG would do a real nice job on the muffler for sure. Not that complicated but the equipment is very expensive compared to brazing.

    What kind of torch did you use Mike?

  13. clemsonfor

    clemsonfor
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 15, 2011
    Messages:
    2,518
    Likes Received:
    489
    Loc:
    Greenwood county, SC
    Nice

    Collapse Signature Expand Signature
  14. DexterDay

    DexterDay
    Expand Collapse
    Guest

    I have a "round" cone type screen if you wanted one? Took it out of a small 2 stroke Genny.

    Nice job though. Is that on the 254xp? Or 359?

    I have a couple I'd pay for you to port? With paint, that's a fine looking job. In my opinion.

    Oh, and I need no Screen. 99.9% of all my cutting is on my property now. ;)

    Again, nice job....

  15. NortheastAl

    NortheastAl
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 30, 2012
    Messages:
    676
    Likes Received:
    388
    Loc:
    Putnam, NY
    Nice clean work on that mod.

    Collapse Signature Expand Signature
  16. #16 mikefrommaine, Sep 5, 2013
    Last edited by a moderator: Sep 5, 2013
    mikefrommaine

    mikefrommaine
    Expand Collapse
    Guest

    I've got a harris Oxy/Acetylene port a torch. Picked up cheap on CL a few years ago. I picked up a #0 welding tip for it; probably would have been better off with a #1.

    [​IMG]

    ScotO, MasterMech and DexterDay like this.
  17. #17 mikefrommaine, Sep 5, 2013
    Last edited by a moderator: Sep 5, 2013
    mikefrommaine

    mikefrommaine
    Expand Collapse
    Guest

    It's on a 359. I'd stick a pipe on the side of a muffler for you but the cost of shipping both ways it might not be worth it? Silver solder seems to be popular over on AS and all you need is regular propane or MAPP torch.

  18. smokinj

    smokinj
    Expand Collapse
    Minister of Fire

    Joined:
    Aug 11, 2008
    Messages:
    15,981
    Likes Received:
    1,410
    Loc:
    Anderson, Indiana
    Nice work and good touch on the SS.

    Collapse Signature Expand Signature
  19. clemsonfor

    clemsonfor
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 15, 2011
    Messages:
    2,518
    Likes Received:
    489
    Loc:
    Greenwood county, SC
    Heck u van put it in a padded envelope for what $8 each way?

    Collapse Signature Expand Signature
  20. Tinder

    Tinder
    Expand Collapse
    Member

    Joined:
    Jan 12, 2012
    Messages:
    43
    Likes Received:
    6
    Loc:
    Howell, MI
    While cutting that portion out of the muffler makes sense, why choke it using the 1/2" EMT? Assuming 1/2" is the ID, 3.1459 * (.25")^2 = ~ 0.1966"^2.

    Collapse Signature Expand Signature
  21. #21 mikefrommaine, Sep 6, 2013
    Last edited by a moderator: Sep 6, 2013
    mikefrommaine

    mikefrommaine
    Expand Collapse
    Guest

    I was wondering if anyone would catch that ;em

    I had been planning to use an old broom handle I had. But at the last minute I chickened out because it is very thin wall and I was worried I'd burn through it. I guess I'm not very good at mental math and never double checked the area of a 1/2" pipe

    Oh well I'm going see about make the original port a little bigger or cut off the pipe and use a bigger one.

    This one looks better anyways

    [​IMG]

    DexterDay likes this.
  22. #22 mikefrommaine, Sep 6, 2013
    Last edited by a moderator: Sep 6, 2013
    mikefrommaine

    mikefrommaine
    Expand Collapse
    Guest

    The enemy of good enough is perfection :confused:

    I had the new piece all done and should have stopped but wanted to make it flow into the muffler a little better... Ended up overheating a section and all the filler flowed out leaving a big gap !!! . In my attempt to fix it I burned through the pipe<>

    Ended getting it all filled in and was able to fill the hole, but its definitely not easy to fill gaps when brazing a thin wall pipe to the muffler. Definitely easier to do it right the first time.

    Here it is almost ready for paint.[​IMG]

    [​IMG]

  23. mikefrommaine

    mikefrommaine
    Expand Collapse
    Guest

    The magic of flat black paint :rolleyes:
    [​IMG]
    [​IMG]

  24. mikefrommaine

    mikefrommaine
    Expand Collapse
    Guest

    This is the first time I actually calculated the optimum exhaust size. In the past I drilled a couple holes and covered it with a deflector... Hadn't realized how big the outlet really needs to be. This pipe is about 70% of the exhaust port. Can't wait to try it out.

    [​IMG]

  25. infinitymike

    infinitymike
    Expand Collapse
    Minister of Fire

    Joined:
    Aug 23, 2011
    Messages:
    1,807
    Likes Received:
    555
    Loc:
    Long Island, NY
    Pretty cool mike.
    Like they say " paint will make it what it ain't "

    Did you try it out yet? What about re-tuning it.
