Need help with vertical vent install

Post in 'The Pellet Mill - Pellet and Multifuel Stoves' started by Rickster, Oct 10, 2008.

Thread Status:
Not open for further replies.
  1. Rickster

    Rickster Member

    Joined:
    Jul 19, 2008
    Messages:
    40
    Loc:
    CT

    Hi pelletheads,

    Mt. Vernon is still not in yet, but I would like to get as ready as possible. I plan to do the install myself. I plan to install the stove in the entryway of my home, very open and already tiled. This location would also allow me to install the stove with a straight up and through the ceiling vent configuration. It is a cathedral style ceiling, so there is only roof on the other side. I have not seen too much info. (or pictures) of anyone doing this install. Anyone done this? I would like to know before I go cutting a big hole in my ceiling!

    Helpful Sponsor Ads!





  2. smoke show

    smoke show Guest

    I have a vert. install but 8 ft ceilings. Will try and get pictures posted for ya when I get home.
  3. Rickster

    Rickster Member

    Joined:
    Jul 19, 2008
    Messages:
    40
    Loc:
    CT
    Thanks.
    My ceiling is also 8 ft., so that should help me a lot.
  4. smoke show

    smoke show Guest

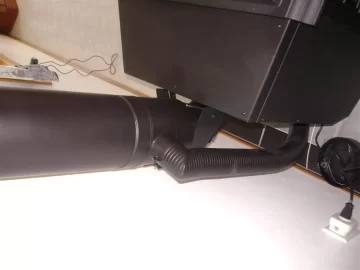

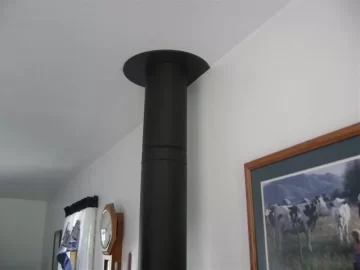

    here ya go

    Attached Files:

  5. Rickster

    Rickster Member

    Joined:
    Jul 19, 2008
    Messages:
    40
    Loc:
    CT
    Thanks Kimeric!

    Did you do the install yourself?
    Were there any difficulties with insulation, shingles or heat considerations?
    Is it a lot messier when you have to clean the vent?
  6. smoke show

    smoke show Guest

    Install was done by dealer. $500 labor. Two story house 28' of venting. Selkirk direct temp.
    No difficulties with insulation or shingles. Clearance to combustibles is one inch for selkirk direct temp. Vented through closet on second floor and boxed in.
    As far as cleaning the vent this is my first year I haven't cleaned it yet, and I have the top vent adapter on the stove so I suspect clean out will be slightly messier than if I had a tee.
