New Harmon P35i installed!!!!

[bosshog919]

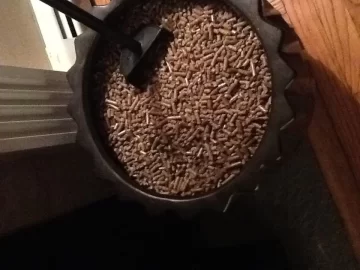

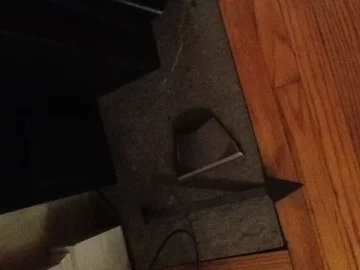

Just finished installing my new P35i...getting that 4in SS liner pass the dampner was a bi*%# Otherwise install was pretty straight forward. Hope I don't have any leaks..I used hi temp silicone on all the seams Let the savings begin Here's a few pics Dealer threw in a bag of premium wood pellets and can someone tell me what thing is next to the burn cleaner??? Thanks



[SteveB]

Nice! we're considering getting a P35i also. Please keep us posted on how you like it and how it goes with it!

Steve



[Lousyweather]

not being nitpicky, but hopefully there is 6" or more of noncombustible area in front of that unit............



[P38X2]

Those pics are CRAZY Might wanna throw a level on it too. That whole area looks...off. HarmOn huh? Must be a chinese knockoff.

Looks great though. Congrats.



[bosshog919]

Got 6 inches on the nose..iPad pics suck Yeah Chinese knock off!! Lol



[CBL]

Nice stove but it looks like it could be centerd between the trim pieces better which then you can butt the surround and the stove closer to the hearth. also FYI per the Harman manual you need at least 1" of clearance between the Left and Right surrounds as there are side slots on those panels that draw air in for combustion and air distribution.



[corkman]

can someone tell me what thing is next to the burn cleaner??? Thanks

looks like a flame guide to me



[P38X2]

looks like a flame guide to me

I agree. PUT THAT IN PLACE BEFORE YOU LIGHT THAT STOVE!



[Harman Lover 007]

looks like a flame guide to me

That flame guide goes on top of the burn pot. Hopefully you figured that out before your first burn....



[Harman Lover 007]

Dealer threw in a bag of premium wood pelletsView attachment 112884View attachment 112883 View attachment 112882View attachment 112881

A bag?? I got a free ton when I bought both of my HarmAns.



[CBL]

Do yourself a favor and read the manual front to back before you light that stove...

http://hearthnhome.com/downloads/installManuals/P35i.pdf



[Lousyweather]

looks like a flame guide to me

if its a new P35i, should also have a flame guide extension as well......pic is too dark, I am guessing the OP has the flame guide extension in, and not the flame guide.......mistake......agreed, read the manual
