nozzle repaire

woodsmaster Posted By woodsmaster, Mar 18, 2012 at 9:45 PM

  1. woodsmaster

    woodsmaster
    Minister of Fire 2.
    NULL


    Jan 25, 2010
    2,819
    143
    Loc:
    N.W. Ohio

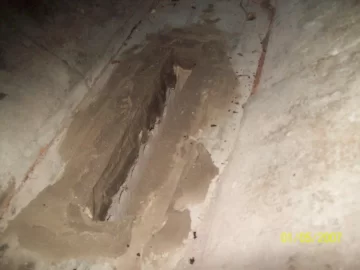

    100_6190.JPG With an idea stolen from goosegunner I repaired my nozzle. I forgot to put the memory card in the camera for the before picture and I can't find the cord so no before pictures. I got the pre mixsd refractory cement from menards. I did this repaire about a week ago and it is holding up great so far.
    100_6187.JPG View attachment 63453 View attachment 63453 View attachment 63453

  2. woodsmaster

    woodsmaster
    Minister of Fire 2.
    NULL


    Jan 25, 2010
    2,819
    143
    Loc:
    N.W. Ohio

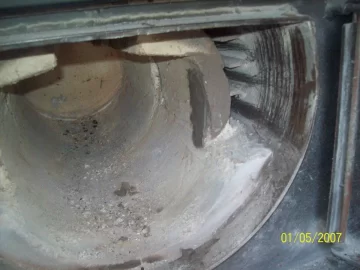

    Also fixed a crack in the lower refractory. 100_6188.JPG

  3. Gasifier

    Gasifier
    Minister of Fire 2.
    NULL


    Apr 25, 2011
    3,152
    793
    Loc:
    St. Lawrence River Valley, N.Y.
    Nice work Woodsmaster. How much wood have you burned through that boiler to get to the point where you needed the repair?

  4. woodsmaster

    woodsmaster
    Minister of Fire 2.
    NULL


    Jan 25, 2010
    2,819
    143
    Loc:
    N.W. Ohio
    I've burnt around 16 full cord

  5. infinitymike

    infinitymike
    Minister of Fire 2.
    NULL


    Aug 23, 2011
    1,814
    556
    Loc:
    Long Island, NY
    I assume thats two heating. Is that about the normal life expectancy?

  6. woodsmaster

    woodsmaster
    Minister of Fire 2.
    NULL


    Jan 25, 2010
    2,819
    143
    Loc:
    N.W. Ohio
    I don't Know what the life expectancy is suppost to be. I feel pretty confident I can get at least another 8 cord out of it now, hopefully more.

  7. goosegunner

    goosegunner
    Minister of Fire 2.
    NULL


    Oct 15, 2009
    1,381
    101
    Loc:
    WI
    Glad it is working out so far. Mine has held great since January. Hopefully a little touch up now and then will really stretch out the use of the nozzle.

    I still would like to come up with some type of metal plate like the Froling. That way the opening would stay a consistent size and shape.

    gg

  8. Armaton

    Armaton
    Member 2.
    NULL


    Aug 22, 2011
    146
    12
    Loc:
    Hastings, Michigan
    Hmmm,

    Wondering if you could use a firebrick, like Fred61 did, with a new nozzle it might protect the nozzle from most of the erosion? Or maybe put a steel plate with the appropriate slot size, between them to further protect the nozzle. That way new users would extend the life of their nozzle! Fire brick is cheap.

  9. woodsmaster

    woodsmaster
    Minister of Fire 2.
    NULL


    Jan 25, 2010
    2,819
    143
    Loc:
    N.W. Ohio
    I was still considering an overlay. I will see how thist patch wears and maybe do an overlay one of these days.

  10. Fred61

    Fred61
    Minister of Fire 2.
    NULL


    Nov 26, 2008
    2,013
    385
    Loc:
    Southeastern Vt.
    Just be careful if you are using steel, especially in applications such as in the Wood Gun where the steel is bracketed by refractory. Be sure you have a loose fit between the steel and the refractory because the coefficient of thermal expansion of steel is very high in relation to the refractory. You could fracture your fire box.

    woodsmaster likes this.
  11. Fred61

    Fred61
    Minister of Fire 2.
    NULL


    Nov 26, 2008
    2,013
    385
    Loc:
    Southeastern Vt.

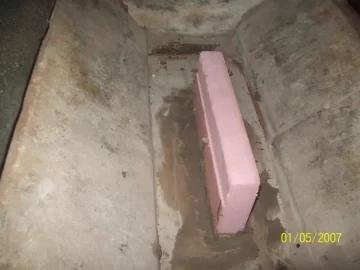

    I think a brick overlay will help extend the life of a new nozzle and it's worth installing. It only took me 7 minutes to mark, clamp and cut out my overlay from start to finish. It took me 30 minutes to figure out how to fold up that Black & Decker clamping horse and put it away.

    woodsmaster likes this.
