OAK Placement Suggestions?

StormPanic Posted By StormPanic, Dec 5, 2012 at 8:46 AM

  1. StormPanic

    StormPanic
    Member 2.
    NULL


    Oct 16, 2012
    140
    9
    Loc:
    Merrimack Valley, MA
    Any problem with transitioning to something other than the aluminum flex pipe after it leaves the room with the stove? PVC or something else cheap?

  2. SmokeyTheBear

    SmokeyTheBear
    Minister of Fire 2.
    NULL


    Nov 10, 2008
    13,363
    1,662
    Loc:
    Standish, ME

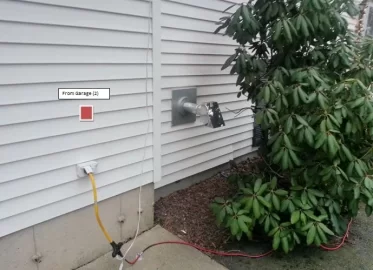

    Metal all the way. Just post a picture of the outside and mark the garage portion so peeps who just see that picture don't get confused. This should be quite simple with no long runs at all..

  3. StormPanic

    StormPanic
    Member 2.
    NULL


    Oct 16, 2012
    140
    9
    Loc:
    Merrimack Valley, MA

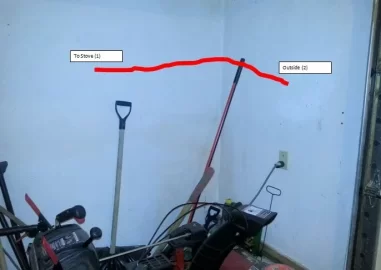

    OK here is a multimedia presentation for you. This is what I am planning, let me know if this make sense.


    Attached Files:

  4. SmokeyTheBear

    SmokeyTheBear
    Minister of Fire 2.
    NULL


    Nov 10, 2008
    13,363
    1,662
    Loc:
    Standish, ME
    For crying out loud go out through the wall to the right of the thimble and above the rim joist that way the OAK end will be out of the way of the vent by more than the minimum distance and you don't have to punch a pile of holes and run a lot of tubing with bends in it.

    Why do you want to penetrate a garage wall and add extra bends?

    BradH70 likes this.
  5. StormPanic

    StormPanic
    Member 2.
    NULL


    Oct 16, 2012
    140
    9
    Loc:
    Merrimack Valley, MA
    I thought that I needed to be 3 feet from the exhaust vent so that I wasn't taking in exhaust fumes into the intake. Assuming the rim joist is a 2x10, that would put my OAK around 12" below and 18" to the right of the vent pipe. You think thats enough?

  6. SmokeyTheBear

    SmokeyTheBear
    Minister of Fire 2.
    NULL


    Nov 10, 2008
    13,363
    1,662
    Loc:
    Standish, ME
    I'd clear the sill plate and go through the rim joist which sets that OAK lower than clearing the rim joist would if you are worried about being too close remember that the vent termination is still over 12 " from the wall. So the OAK end is well over 18" from the termination. The only question I have if it goes through the rim joist is how far from the ground will it be and if snow is going to be a problem.

    The required minimum is 12" from the termination. Either method is going to put it further away than that

    ETA2: In fact along the wall the OAK will be 21+" from the vent pipe let alone the termination.

  7. StormPanic

    StormPanic
    Member 2.
    NULL


    Oct 16, 2012
    140
    9
    Loc:
    Merrimack Valley, MA
    I guess that makes sense. Snow may just be something I have to deal with. I don't get snow drifts in the location. I am thinking that the heat from the exhaust will keep the snow at bay for the most part.

  8. SmokeyTheBear

    SmokeyTheBear
    Minister of Fire 2.
    NULL


    Nov 10, 2008
    13,363
    1,662
    Loc:
    Standish, ME
    Your setup is just about the same as mine, you have a garage to the right and I have a house length deck. All of my vent system goes through the same wall. The only difference outside is the height above ground, mine is a bit higher than yours.

    If your stove had a flapper on the air intake I'd have suggested going out right below that thimble or replacing that thimble with a combined setup because there would be no need for a better natural draft setup.

  9. StormPanic

    StormPanic
    Member 2.
    NULL


    Oct 16, 2012
    140
    9
    Loc:
    Merrimack Valley, MA
    Nice, can't thank you enough. Will plan on getting it installed maybe tomorrow or by the weekend. Stove runs perfect on the lower heat levels but definitely needs more air on high. Will be sure to post pictures when it's done.

    SmokeyTheBear likes this.
  10. StormPanic

    StormPanic
    Member 2.
    NULL


    Oct 16, 2012
    140
    9
    Loc:
    Merrimack Valley, MA

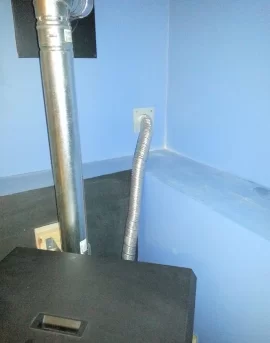

    OK finally done - thanks to everyone for the helpful advice (especially Smokey). Stove seems to be burning better now. Still have some ash buildup in the burnpot but I have been running it on high a lot. Still need to do the dollar bill test just to check the gaskets.


    Attached Files:
