Pre EPA.... any with glass?

Post in 'Classic Wood Stove Forums (prior to approx. 1993)' started by metalsped, Nov 25, 2012.

  1. metalsped

    metalsped
    Expand Collapse
    Feeling the Heat

    Joined:
    Jul 24, 2011
    Messages:
    292
    Likes Received:
    66
    Loc:
    In the slight space between dark and light
    Or are they all cast/steel doors?

    Collapse Signature Expand Signature

    Helpful Sponsor Ads!





  2. WhitePine

    WhitePine
    Expand Collapse
    Feeling the Heat

    Joined:
    Sep 18, 2010
    Messages:
    497
    Likes Received:
    121
    I had a cast iron insert installed in the early 80s. It had glass in the door. I heated with it for a couple of years, until I sold the house and moved. This was in the PNW. I think it was locally made. Might have had the word "bear" in the name, but I'm not real sure on that.

    I do know I liked it a lot.

  3. fox9988

    fox9988
    Expand Collapse
    Minister of Fire

    Joined:
    Jan 15, 2012
    Messages:
    612
    Likes Received:
    196
    Loc:
    NW Arkansas
    Some Country Flames had glass in the doors. The few I've been around stayed so dirty it looked like they were painted black. To be fair, they were not burning dry wood.

    Collapse Signature Expand Signature
  4. BrotherBart

    BrotherBart
    Expand Collapse
    Hearth.com LLC Mid-Atlantic Division
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    32,379
    Likes Received:
    9,607
    Loc:
    Northern Virginia
    Timberline, Sierra and Squire to name a few more.

    As said, no air-rwash so the glass was a bunch of trouble to try and keep clean. Besides the fact that it was made of some tinted ceramic stuff to start with.

    Collapse Signature Expand Signature
  5. coaly

    coaly
    Expand Collapse
    Fisher Moderator
    Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    2,412
    Likes Received:
    314
    Loc:
    NE PA
    Fisher offered their double door stoves with brass and glass to compete with other manufacturers making their stoves with a viewable fire;

    Grandma III and Grandpa III (notice flat top glass)
    Tannersville 83 ebay sold $1626 GM III.jpg

    Grandma IV and Grandpa IV (notice angled top glass)
    Grandma IV.jpg

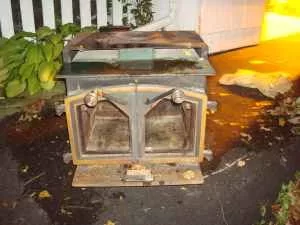

    Insert IV ;

    Insert IV.jpg

    The much smaller Honey Bear Insert;

    Honey Bear Insert.jpg

    Pedestal and 4 leg Honey Bear Freestanding ;

    Honey Bear 1.jpg Honey Bear with legs.jpg

    And the single door TF-88 (Fisher's last model made for the lower smoke standards of 1988)

    TF-88 1.jpg TF-88 Door Glass 11-7-12.jpg

    They all featured intake air as an air wash over the glass to keep clean.

    Collapse Signature Expand Signature
  6. fossil

    fossil
    Expand Collapse
    Accidental Moderator
    Staff Member

    Joined:
    Sep 30, 2007
    Messages:
    10,522
    Likes Received:
    2,411
    Loc:
    Bend, OR
    In our weekend place back in the Shenandoah Valley in VA, we had a little Sierra end-loader with a nice big fixed front window. It had a bypass for lighting, then with that in the operating position, the combustion air (coming through two adjustable ports in the end loading door) traversed the length of the firebox to find its way to the flue exit. Two little slide registers beneath the front window provided a rudimentary but surprisingly effective airwash and kept that window pretty dang clean. I've no idea whatever anymore what model of Sierra that stove may have been. Rick

    Collapse Signature Expand Signature
  7. FanMan

    FanMan
    Expand Collapse
    Feeling the Heat

    Joined:
    Mar 4, 2012
    Messages:
    319
    Likes Received:
    74
    Loc:
    CT stix & upstate NY
    The "Early Times" stove in my cabin (was there when I got the cabin, I'm guessing 1970s (or maybe 1980s) has glass doors and a small slide air vent below the doors.

    [​IMG]

    It had flexible screen curtains inside the doors but I removed them recently, they just got in the way.

  8. BrotherBart

    BrotherBart
    Expand Collapse
    Hearth.com LLC Mid-Atlantic Division
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    32,379
    Likes Received:
    9,607
    Loc:
    Northern Virginia
    The famous T-2000 Rick. Tons, pun intended, of them sold around here back then. A great wood stove.

    Collapse Signature Expand Signature
  9. fossil

    fossil
    Expand Collapse
    Accidental Moderator
    Staff Member

    Joined:
    Sep 30, 2007
    Messages:
    10,522
    Likes Received:
    2,411
    Loc:
    Bend, OR
    It was a great little stove...pretty forgiving, as I hardly had a clue what I was doing with it at the time. Never a problem except sometimes having to open windows to keep the place habitable. Wish I had a pic of it. I have scads of pics of that place, but nothing of the stove. <>

    Collapse Signature Expand Signature
  10. Corey

    Corey
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 19, 2005
    Messages:
    2,286
    Likes Received:
    155
    Loc:
    Midwest
    My old 'what ever the heck it is' had glass windows. It did have some vents above the glass - sort of a primitive air wash, but I rebuilt it to have a better working late model air wash system.

    [​IMG]

    Collapse Signature Expand Signature
    raybonz likes this.
  11. jharkin

    jharkin
    Expand Collapse
    Minister of Fire

    Joined:
    Oct 21, 2009
    Messages:
    3,687
    Likes Received:
    1,200
    Loc:
    Holliston, MA USA
    Some of the early Vermont Castings stoves had windows. The old first generation Resolute I grew up with had an option of ether a window or a cast panel on the top half of the door. We had the panel but later my Dad installed the glass.... impossible to keep clean though.

    Collapse Signature Expand Signature
  12. BrotherBart

    BrotherBart
    Expand Collapse
    Hearth.com LLC Mid-Atlantic Division
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    32,379
    Likes Received:
    9,607
    Loc:
    Northern Virginia
    Old Brownie, Sierra T-4500 Royale heated this barn for 21 years. Perpetually over fired. And slamming those N/S splits into the back of a hot firebox finally busted a weld in the back. This is the fire from the night I discovered the air leak when it ran away on me. Pulled it out of the fireplace, with great regret, the next week. Yeah, some of them had glass. A bunch of it.


    Collapse Signature Expand Signature
  13. PapaDave

    PapaDave
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 23, 2008
    Messages:
    5,740
    Likes Received:
    2,220
    Loc:
    Northern MI - in the mitten
    I've got an Ashley step top with glass in the door from 1985.
    The air comes in front bottom of stove and keeps the glass clean.......mostly.
    Glass is about 16"x9".

    Collapse Signature Expand Signature
  14. HDRock

    HDRock
    Expand Collapse
    Minister of Fire

    Joined:
    Oct 25, 2012
    Messages:
    2,239
    Likes Received:
    859
    Loc:
    Grand Blanc, Mi
    Fire View

    Collapse Signature Expand Signature
  15. wkpoor

    wkpoor
    Expand Collapse
    Minister of Fire

    Joined:
    Oct 30, 2008
    Messages:
    1,854
    Likes Received:
    82
    Loc:
    Amanda, OH
    I had a Nashua with a glass door. If you ran it hot you could keep the glass clean.

    Collapse Signature Expand Signature
  16. ChipTam

    ChipTam
    Expand Collapse
    Burning Hunk

    Joined:
    Dec 16, 2005
    Messages:
    223
    Likes Received:
    47
    Loc:
    SE Michigan and Trinity, Newfoundland
    I've got a 1987 Jotul 3 TD which I'm still using and it has glass. Cleaning the glass is not that big a deal. I do it about once a week and it takes only a couple of minutes.
    ChipTam

    Collapse Signature Expand Signature
  17. drumbum

    drumbum
    Expand Collapse
    Member

    Joined:
    Aug 12, 2009
    Messages:
    67
    Likes Received:
    5
    Loc:
    mid tenn
    Lets not forget the mighty Orley

  18. eclecticcottage

    eclecticcottage
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 7, 2011
    Messages:
    1,789
    Likes Received:
    342
    Loc:
    WNY
    I assume you're not looking to go as far back as this, but most parlour stoves and base burners had mica glass.

    My grandparents had something in their fireplace with glass doors and that black flexible screen. No idea what it was, but I remember the air vents on the bottom were round (and went all the way across-they were maybe an inch wide?) and the control slid back and forth on a rod to the left side.

    Collapse Signature Expand Signature
  19. Kenster

    Kenster
    Expand Collapse
    Minister of Fire

    Joined:
    Jan 10, 2010
    Messages:
    1,701
    Likes Received:
    126
    Loc:
    Texas- West of Houston
    My VC Vigilant came with the optional glass doors. I have the original metal doors that have never been installed and are basically brand new.

    Collapse Signature Expand Signature
  20. gzecc

    gzecc
    Expand Collapse
    Minister of Fire

    Joined:
    Sep 24, 2008
    Messages:
    4,384
    Likes Received:
    851
    Loc:
    NNJ
    Old Bucks have glass. I think the hi heat glass came from the space program research. Probably the tile technolgy from the space shuttle. Can you tell I stayed at a Holiday Inn last night?

    Collapse Signature Expand Signature
  21. raybonz

    raybonz
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 5, 2008
    Messages:
    6,211
    Likes Received:
    1,036
    Loc:
    Carver, MA.
    My old CDW had glass but it usually was pretty dirty so I rarely cleaned the glass as it was a waste of time..

    Ray

    Collapse Signature Expand Signature
  22. dougand3

    dougand3
    Expand Collapse
    Minister of Fire

    Joined:
    Oct 16, 2008
    Messages:
    1,053
    Likes Received:
    199
    Loc:
    North Alabama
    The Kent Tile Fire from the mid 80s has a 12" x 8" window. It has some air wash and stays clean when you burn hot.

    Collapse Signature Expand Signature
  23. rkshed

    rkshed
    Expand Collapse
    Feeling the Heat

    Joined:
    Jan 15, 2012
    Messages:
    269
    Likes Received:
    77
    Loc:
    NH
    The Garrison II had the glass door option.
    Looking for some now if anyone knows of a pair.
