Quad Castile Vacuum Hose Termination

Post in 'The Pellet Mill - Pellet and Multifuel Stoves' started by peirhead, Apr 6, 2013.

  1. peirhead

    peirhead
    Expand Collapse
    Feeling the Heat

    Joined:
    Aug 8, 2008
    Messages:
    404
    Likes Received:
    29
    Loc:
    PEI Canada
    Does anyone know where the vacuum hose terminates in a Quad Castile? Obviously one end of the hose goes to the vacuum switch, but the other end? Looking at mine it appears to go to the top of the auger near where the pellets drop down into the burner pot, but I can't really get in there to be sure. It would be a logical location as vacuum should be present there, and it would help suck the dust and fines away from the vacuum tube.

    Collapse Signature Expand Signature

    Helpful Sponsor Ads!





  2. Don2222

    Don2222
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 1, 2010
    Messages:
    7,767
    Likes Received:
    459
    Loc:
    Salem NH
    Hello

    All Quads get their vacuum feed from the the underside of the feed motor chute.

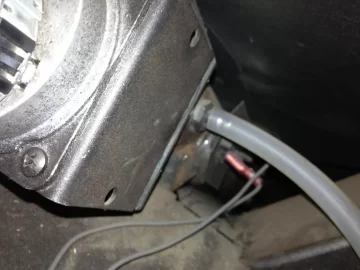

    See pic of my Santa Fe

    Click pic to Enlarge:


    Attached Files:

    Collapse Signature Expand Signature
  3. DexterDay

    DexterDay
    Expand Collapse
    Guest

    Isn't there a panel that can be removed to get to it? My Classic Bay has a panel that has 3 screws in it. Remove them and pull the hose from the switch and blow through it to clean fines from the barb area on the auger chute

  4. Bkins

    Bkins
    Expand Collapse
    Minister of Fire

    Joined:
    Mar 16, 2009
    Messages:
    620
    Likes Received:
    42
    Loc:
    Jersey Shore
    The port on my Mt. Vernon, non AE, is about 3/4 of the ways UP on the side of the auger tube.

    Collapse Signature Expand Signature
  5. peirhead

    peirhead
    Expand Collapse
    Feeling the Heat

    Joined:
    Aug 8, 2008
    Messages:
    404
    Likes Received:
    29
    Loc:
    PEI Canada
    Thanks guys...I have started using a rag to stuff in the drop tube when I am cleaning the stove....while I am vacuuming I also blow compressed air around the heat exchange tubes etc....now I am sure I won't damage the vacuum switch.
