Quad Santa Fe door gasket?

[STANG302]

I'm in the process of replacing the door gaskets but have a problem. I should have taken pics when I pulled it apart as now I'm not so sure how the door glass gasket goes back in! Plus the manual does not show the door gasket at all just mentions it.

Can any one post a pic of there sante fe door gaskets? So I know how exactly to put it back together?



[Fish On]

http://www.quadrafire.com/Ideas-and...~/media/4102DA3D345444BBA1329FBB0915951E.ashx



[STANG302]

Thanks that will do it.



[Don2222]

Hello

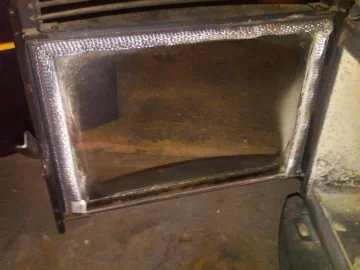

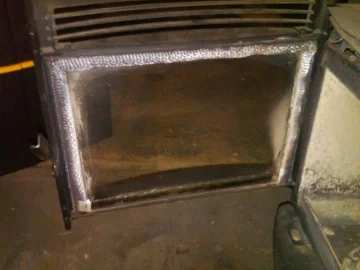

Here is a pic of my Santa Fe with the bottom air wash. Stoves after 2004 I believe.
