quad santa fe short flame, and I'm unfamilar with the stove

Post in 'The Pellet Mill - Pellet and Multifuel Stoves' started by pro5oh, Dec 30, 2010.

  1. pro5oh

    pro5oh Member

    Joined:
    Aug 19, 2008
    Messages:
    146
    Loc:
    downeast Maine
    Just fired my used santa fe, cant get the flame much higher than the burn pot on any setting. Moved the pellet slide all the way open and it only increased slightly after 15 mins, and I fully cleaned the stove before install. The pellets are fresh and work great in my waterford.
    I'm finding this stove alittle strange, only 3 heat settings, thermostat must be used, no air adjustments only feed adjustments. Just not the usual I guess. I spent some good $ even used because of the brand and counting on the company being around for years. Just hoping someone can educate me here.

    Hope you all had a good Christmas.

    Helpful Sponsor Ads!





  2. SmokeyTheBear

    SmokeyTheBear Minister of Fire

    Joined:
    Nov 10, 2008
    Messages:
    12,126
    Loc:
    Standish, ME
    You might want to check how the control box is set, somewhere on the forum hearth.com member Balls O Fire posted the information on the control box used on some of the Quad units.
  3. jtakeman

    jtakeman Minister of Fire

    Joined:
    Dec 30, 2008
    Messages:
    13,488
    Loc:
    Northwestern CT.

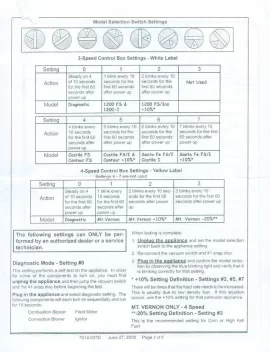

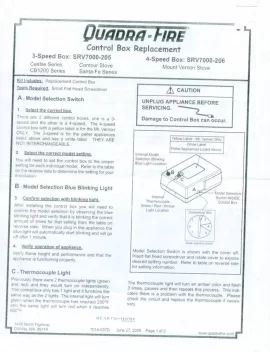

    Here are the control box sheets(thanks balls of fire)

    Attached Files:

    DexterDay likes this.
  4. tjnamtiw

    tjnamtiw Minister of Fire

    Joined:
    Mar 9, 2009
    Messages:
    3,783
    Loc:
    North Georgia
    So, when you plug in the stove, you should see the blue light flash 6 times, over and over for a minute or so. If not, UNPLUG the stove and turn the small set wheel to 6.

    If you have really long pellets, the Sante Fe won't feed them worth a crap. Ask me how I know!
  5. pro5oh

    pro5oh Member

    Joined:
    Aug 19, 2008
    Messages:
    146
    Loc:
    downeast Maine

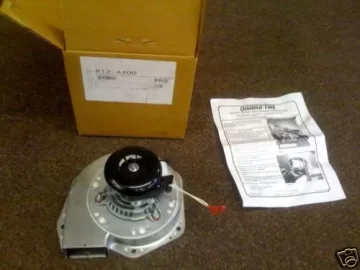

    Ok got it figured out. The combustion blower has been alittle noisey on this 05 model. After removing it I found the bearings had alot of freeplay. I have replaced it with an updated version which has an enclosed fasco motor assy. Now its quieter and on high can blow you out of the room. The bearings I'm guessing slowed the blower down decreasing cfm. The amount of air out the exhaust port is double now and the flame is more intense.

    FYI: The quad dealers sell the same origanal c-frame blower assy , CSH in michigan sold me the updated "oilable" motor assy with gasket for $100 to the door. The dealer wanted $225 for the oem model. Much quieter now also.

    PS. This blower fit the CB1200 and the Castile also I think

    Attached Files:

  6. B-Mod

    B-Mod Member

    Joined:
    Nov 29, 2010
    Messages:
    171
    Loc:
    Central WI
    Can you post contact info for CSH, and a part #? Is this fan an OEM quadrafire part? Thanks............Brian
  7. tjnamtiw

    tjnamtiw Minister of Fire

    Joined:
    Mar 9, 2009
    Messages:
    3,783
    Loc:
    North Georgia
    812-4400 is the right number shown on the packing box. EDIT ( I see the picture is labeled 'original.jpg' so maybe this isn't the blower you received????) That's a heck of a deal! Gotta have the contact info!
  8. tjnamtiw

    tjnamtiw Minister of Fire

    Joined:
    Mar 9, 2009
    Messages:
    3,783
    Loc:
    North Georgia
    are the specs the same as far as rpm, service factor, amps?
  9. B-Mod

    B-Mod Member

    Joined:
    Nov 29, 2010
    Messages:
    171
    Loc:
    Central WI
    Is this the place???? www.cshincorporated.com/
  10. tjnamtiw

    tjnamtiw Minister of Fire

    Joined:
    Mar 9, 2009
    Messages:
    3,783
    Loc:
    North Georgia
    That's what I found, B-mod, but haven't found the blower yet. I hope greybeard comes back!
  11. imacman

    imacman Guest

  12. tjnamtiw

    tjnamtiw Minister of Fire

    Joined:
    Mar 9, 2009
    Messages:
    3,783
    Loc:
    North Georgia
    Don't see it imacman..... Gotta go clean my glasses, I guess.
  13. B-Mod

    B-Mod Member

    Joined:
    Nov 29, 2010
    Messages:
    171
    Loc:
    Central WI
    357-506 Fireplace Blower

    HP Amps Volts RPM Rotation Type Frame Size Bearing
    1/50 1.00 115 3000 CW SP/Open 3.3 Inch Sleeve

    6.0" dia. plate, includes 6 mounting nuts, gasket, fan blade, rotation viewing blade.

    Cross References:Combustion Blower Whitfield - Quest 12026011, 13656011, Breckwell, Travis (Avalon & Lopi) Quadra-Fire

    This one?????
  14. tjnamtiw

    tjnamtiw Minister of Fire

    Joined:
    Mar 9, 2009
    Messages:
    3,783
    Loc:
    North Georgia
    Yea, that's the one I found but it doesn't look like his picture and it has sleeve bearings
  15. pro5oh

    pro5oh Member

    Joined:
    Aug 19, 2008
    Messages:
    146
    Loc:
    downeast Maine
    Sorry been out all day, I actually got it on amazon through csh heres the part link

    http://www.amazon.com/gp/product/B000W3Q4QO/ref=oss_product

    If you do a search and find quadra fires 812-4400 blower and cross it you will see the 3000rpm and .6amps 70cfm is all the same. Also fits my old waterford and a bunch of whitfields, other. Many online stove shops are selling this same motor as a direct replacment but for $180. The information is there, just look around. Been working great for me. PM me if I can help.
  16. tjnamtiw

    tjnamtiw Minister of Fire

    Joined:
    Mar 9, 2009
    Messages:
    3,783
    Loc:
    North Georgia
    well done! Crazy way to find it! It doesn't show up on their site. too bad they only have two of them!
  17. pro5oh

    pro5oh Member

    Joined:
    Aug 19, 2008
    Messages:
    146
    Loc:
    downeast Maine
  18. tjnamtiw

    tjnamtiw Minister of Fire

    Joined:
    Mar 9, 2009
    Messages:
    3,783
    Loc:
    North Georgia
    Learn something new every day!!!! Who reads the fine print??? :red: %-P
