    Buying a modular home where they have a propane stove exhausting up through the ceiling and roof. What do I need to have done with the piping to replace the propane stove with a P43 pellet stove?

  2. Don2222

    Don2222
    Minister of Fire 2.
    NULL


    Feb 1, 2010
    7,862
    468
    Loc:
    Salem NH
    Hello Gambler13

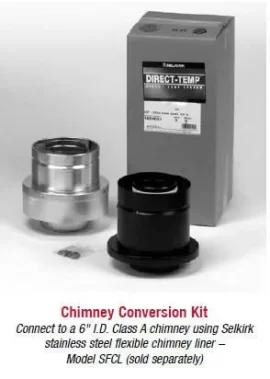

    To me the Best way and Only way is the Class A Selkirk Chimney Conversion for Pellet Venting.

    Send me your E-mail in a PC - Private conversation for more info.

    CHIM. CONV. KIT A (for 6" ID/8" OD Class A Chimney) 4DT-CCKA 1604631
    CHIM. CONV. KIT B (for 6" ID/10" OD Class A Chimney) 4DT-CCKB 1604635


    Attached Files:

  3. Delta-T

    Delta-T
    Minister of Fire 2.
    NULL


    Feb 27, 2008
    3,144
    579
    Loc:
    NH
    if you have a class A chimney, you can connect to it, but there's a good chance you have B-vent (gas) pipe...which you cannot connect to. IS the stove on an inside wall forcing you to go up the original assmebly for convenience sake? If not, the pellet stove is direct ventable out through an exterior wall. Could you give us all more details about what you have?

  4. stovelark

    stovelark
    Minister of Fire 2.
    NULL


    Oct 10, 2009
    960
    154
    Loc:
    SE CT
    Gambler, Delta t is correct, hopefully you know what type of gas venting it is. Doesn't matter, it'll be removed and replaced with pellet vent pipe either DT as Don was suggesting above or suitable pellet venting. Is the gas stove's pipe about 7 inches in diameter or more like 4.5 inches?? If its 7 inch its prob direct vent Simpson duravent coaxial gas piping (a 4 inch inside of a 6-5/8 in outer pipe.) The selkirk DT pipe is about the same size, might be a nice fit going thru the roof. If the gas stove has B vent piping (5" roughly) then pellet vent 4 inch piping might be the best retrofit. Let us know, good luck with it.

  5. gambler13

    gambler13
    Member 2.
    NULL


    Jul 13, 2010
    17
    0
    Loc:
    pa
    Unfortunately I don't know the specifics yet as we are buying this place in June. Was only through it enough to check the layout. It is on an inside wall and goes straight up through the ceiling and roof. Didn't even pay enough attention to see what size pipe it is. Figure they'll have to take it out and run all new pipe to install a pellet stove then.

  6. Lousyweather

    Lousyweather
    Guest 2.
    NULL


    or leave it alone and go out the outside wall.....easier to do the air intake thing then!

    Delta-T likes this.
  7. Delta-T

    Delta-T
    Minister of Fire 2.
    NULL


    Feb 27, 2008
    3,144
    579
    Loc:
    NH
    and a good bit less expensive too

    Lousyweather likes this.
  8. Lousyweather

    Lousyweather
    Guest 2.
    NULL


    once again, I find myself in the situation of admiring the brilliance of your posts, Delta......I forgot the add about the frugality of the thru the wall install....and while we are on the subject, lets not forget about the aesthetic appeal as well......

  9. Delta-T

    Delta-T
    Minister of Fire 2.
    NULL


    Feb 27, 2008
    3,144
    579
    Loc:
    NH
    flattery will get you everywhere;) ...less expensive, better looking, more conducive to OAK....is like the trifecta of the installation challenge. I suiting answer for a member with the handle "gambler13".

  10. gambler13

    gambler13
    Member 2.
    NULL


    Jul 13, 2010
    17
    0
    Loc:
    pa
    Guess I'll have to see what other placement options I'll have for the pellet stove. Didn't think about the difficulty about running the OAK.

  11. Lake Girl

    Lake Girl
    Moderator 2.
    NULL

    Staff Member

    Nov 12, 2011
    5,115
    1,038
    Loc:
    NW Ontario
    OAK is required for mobile homes ... has to figure in the equation of piping and/or placement. Current placement on the inside wall does not seem like it would be helpful with air circulation throughout the whole trailer - just to one end. Placing on an outside wall that would allow air movement to both ends seems like a better option. What size is the trailer (double wide would likely change last statement)?

    Modular home would be different than mobile (two halves combined right?) Lay out has to factor in. What kind of space under - basement or other?

  12. Delta-T

    Delta-T
    Minister of Fire 2.
    NULL


    Feb 27, 2008
    3,144
    579
    Loc:
    NH
    i think, at least round my parts, if you have a steel sub frame you have to follow the "mobile home" guidelines, but if its a true modular (built in a factory, hoisted into place and attached to a foundation without steel sub frame) you are not required to follow the mobile home guideleines. I bet there's some insurance company broo-haha to deal with in that regard as well. I even know a few "inspector" types who say "well, it ain't goin anywhere, so it ain't mobile to me" regarding double wides.

  13. Lake Girl

    Lake Girl
    Moderator 2.
    NULL

    Staff Member

    Nov 12, 2011
    5,115
    1,038
    Loc:
    NW Ontario
    Easier to OAK per mobile home specs so there's no argument...;lol I'm sure there will be something else with the insurance company.

  14. Delta-T

    Delta-T
    Minister of Fire 2.
    NULL


    Feb 27, 2008
    3,144
    579
    Loc:
    NH
    agreed....you don't see a lot of people getting flagged for going above and beyond the minimum requirements....except in the work place ;lol

  15. Chain

    Chain
    Feeling the Heat 2.
    NULL


    Apr 20, 2009
    285
    25
    Loc:
    Lewis County, New York (upstate)
    In my opinion I'd do whatever conversion you need to in order to go straight up through the roof. Sure, it'll be more costly and slightly more of a pain in the ass, but you'll never have to worry about smoke venting out of your stove should you lose power. I think that the natural venting you'll always have with the vertical set-up is worth the hassle.

  16. DexterDay

    DexterDay
    Guest 2.
    NULL



    Yep.. Round here it's the same way. If its an actual modular, and its on a permanent foundation (read:Basement) then it's no longer mobile, nor will it ever be.

    But may be different elsewhere.
