Roof flashing question

Post in 'The Hearth Room - Wood Stoves and Fireplaces' started by begreen, Sep 16, 2006.

Thread Status:
Not open for further replies.
  1. begreen

    begreen Mooderator Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    46,081
    Loc:
    South Puget Sound, WA

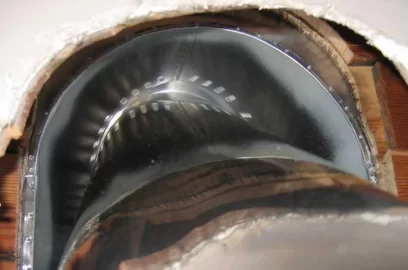

    This is an interior shot of the roof flashing looking upward. It is a DuraVent installation. This is the first time I've seen these ventilation slots at the top of the roof flashing. Normally this would just vent from the attic, but in our case there is no attic. The shot is taken of the closet ceiling. So my question is, how to prevent heat loss from the interior to outdoors? There will be a metal trim ring in the closet, but that seems insufficient. Can fiberglass or mineral wool be placed around the base or is that a complete no-no?

    Attached Files:

    Helpful Sponsor Ads!





  2. Roospike

    Roospike New Member

    Joined:
    Nov 19, 2005
    Messages:
    2,859
    Loc:
    Eastern Nebraska

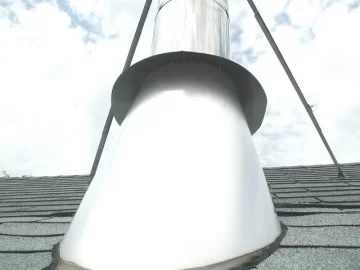

    The heat is to go out of the flashing holes. Once your pipe is framed and boxed in the air from the pipe box is to exit out through the top. I was thinking the same thing when first installed. So basically when the pipe is enclosed and boxed from the second floor to the attic the space is all "Attic space" .

    Attached Files:

    • 3.JPG
      File size:
      32.1 KB
      Views:
      220
  3. MountainStoveGuy

    MountainStoveGuy New Member

    Joined:
    Jan 23, 2006
    Messages:
    3,629
    Loc:
    Northern Colorado Mountains
    yea, you dont want to mess with those vents, or anything else the manufacture of the pipe has engineered in there system.
  4. Roospike

    Roospike New Member

    Joined:
    Nov 19, 2005
    Messages:
    2,859
    Loc:
    Eastern Nebraska
    I'm sure your framing and boxing in your pipe from the second floor to the ceiling , correct ?
  5. begreen

    begreen Mooderator Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    46,081
    Loc:
    South Puget Sound, WA
    Well, at first I was thinking of not boxing it in. A friend didn't box in his 2nd floor class A. Instead he created a heatshield out of perforated stainless with 1" standoffs. It looks sharp and he recovers some heat that way. I was mulling over this possibility. But, there is only 4 ft of class A in the interior, so the gain probably is not going to be all that much. I definitely did mean I wanted to block the holes. My question is: Can I run ceiling insulation directly to the point of contact with the pipe if it is solely fiberglass (no paper backing)? Or is that strictly prohibited? The pipe itself only says there must be a minimum of 2" clearance to combustibles.

    Boxing it in would mean that wind blowing through the flashing could make its way into the floor joist cavity. That isn't apealling, though I suppose I could box right down to the ceiling sheetrock to minimize this.

    When did they start making roof flashing this way? Our old system was solid at the top. Once siliconed it leaked no air. After 20 years of use, it looked like new when I took it apart.
  6. Roospike

    Roospike New Member

    Joined:
    Nov 19, 2005
    Messages:
    2,859
    Loc:
    Eastern Nebraska
    I understand it to be code to box in the second floor chimney pipe on all installs. I didnt think there was a choice but after reading your post i just thought you might be think of not doing it so is why i asked. Yes the second floor stove pipe has to be boxed in per code and per pipe install manual . Every brand of pipe i looked at said per the install the second floor pipe mist be boxed in. Again, once boxed in per listed you will have an air chamber inside the box from the second floor - floor to the out let of the flashing. It lets the air chamber breath as per the vent holes in the flashing.
  7. Roospike

    Roospike New Member

    Joined:
    Nov 19, 2005
    Messages:
    2,859
    Loc:
    Eastern Nebraska

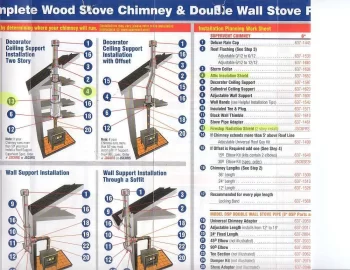

    Here is just one of the brand of pipes mentioned for install.

    Attached Files:

  8. BrotherBart

    BrotherBart Hearth.com LLC Mid-Atlantic Division Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    27,360
    Loc:
    Northern Virginia
    Enclosed or not you can't go having an opening to the sky like that inside the building envelope. There has to be a firestop of some kind sealing that hole in the ceiling. The DuraVent manual shows one.
  9. MountainStoveGuy

    MountainStoveGuy New Member

    Joined:
    Jan 23, 2006
    Messages:
    3,629
    Loc:
    Northern Colorado Mountains
    there should be a firestop at every penetration.. exactly right bb.
  10. Roospike

    Roospike New Member

    Joined:
    Nov 19, 2005
    Messages:
    2,859
    Loc:
    Eastern Nebraska

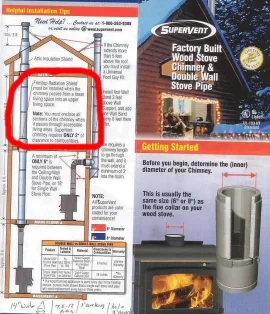

    Going from the floor of the second floor up at the floor is to be a "fire stop shield" it list per the install the into the attic it needs a "attic insulation shield" does not mention a "fire stop" per the attic.

    Attached Files:

  11. Shane

    Shane Minister of Fire

    Joined:
    Nov 21, 2005
    Messages:
    1,830
    Loc:
    Casper Wyoming
    Firestops are required at all ceiling penetrations. An attic insualtion shield simply prevents insulation from coming in contact with the chimney. All interior chimneys must be enclosed in a chase. The air holes are there for the pipe to breath. What they changed between your old and new chimney I'm not sure of but don't block those holes.
  12. MountainStoveGuy

    MountainStoveGuy New Member

    Joined:
    Jan 23, 2006
    Messages:
    3,629
    Loc:
    Northern Colorado Mountains
    within the building envelope you need firestops, to the outside you dont. but, if it were me, i would put one there anyway, but, it should be chased in, so a firestop would not be needed.
  13. Roospike

    Roospike New Member

    Joined:
    Nov 19, 2005
    Messages:
    2,859
    Loc:
    Eastern Nebraska
    All three chimney pipe companies i looked at must be wrong ( as per code ? ) as per the install manual ( see pic's ) They show the fire stop from the second floor but not in the attic. So are you saying that you need a "fire stop" AND an attic shield in the attic ??? I installed mine as per the chimney pipe install guide.( no mention of fire stop per the attic - just attic shield ) EDIT " MSG , we posted at the same time.
  14. BrotherBart

    BrotherBart Hearth.com LLC Mid-Atlantic Division Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    27,360
    Loc:
    Northern Virginia

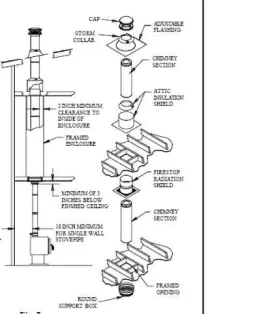

    BeGreen has the unusal situation where his "attic" is living space. It is the ceiling that needs the firestop. Here is a pic from the DuraVent installation manual (hope it works). The firestop fits inside the attic insulation shield.

    Attached Files:

  15. Roospike

    Roospike New Member

    Joined:
    Nov 19, 2005
    Messages:
    2,859
    Loc:
    Eastern Nebraska
    Interesting ........Duravent shows a fire stop on theres per the attic . So what is code ? Is there something written about it ? True Begreen has an odd install as per install listings ,I dont think the fire stop would fit per the attic and i know the attic shield wont fit for sure. If it was me ............ I would "box in" the attic/ceiling area with cement board and that woud be like an attic shield but not a fire stop. If the cement board was lower like say drop down 10" box below the ceiling then maybe a fire stop could be installed.Then frame in the second floor pipe with frame and drywall.
  16. begreen

    begreen Mooderator Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    46,081
    Loc:
    South Puget Sound, WA
    Glad I brought this up. I have the duravent installation instructions downloaded now and will speak to the installation co. about this. Our install is atypical, it really doesn't show up in any diagrams, but in spirit I now completely agree with you. It looks like I may have to make a custom shield to make this work though. The class A comes from the support box up about 4 ft until it penetrates the roof (7.5/12 pitch). Normally this would be like an attic install, except in our case it is 2nd floor and no attic. Everything is open and easy to access, but I am not sure the best way to create the best firestop or where it should be placed. Boxing is not hard and I can figure that out, but I want to understand the correct location for the firestop before I call the installer. Should the box be sheetmetal and continue right up to the interior side of the roof?

    Not to worry, we'll get it right. The good news is I haven't paid them yet. They'll be anxious to get it right too I suspect.
  17. begreen

    begreen Mooderator Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    46,081
    Loc:
    South Puget Sound, WA
    Posts crossed Bart. Yes, you have it exactly correct. But an attic insulation shield is only about 15" tall and would be open until the roof (inside of the box) so I'm not sure what it would be doing. I'd like a more bulletproof solution.
