Shops and shop stoves, lets see em!

Post in 'The Inglenook' started by Dustin, Oct 9, 2012.

  1. Dustin

    Dustin Feeling the Heat

    Joined:
    Sep 3, 2008
    Messages:
    346
    Loc:
    Western Oregon
    As I sit in my house in the city, I dream if some property, a shop, and most important a nice stove in my shop.

    Show us your "home away from home" and help me with the I wants!

    Helpful Sponsor Ads!





  2. Highbeam

    Highbeam Minister of Fire

    Joined:
    Dec 28, 2006
    Messages:
    8,800
    Loc:
    base of Mt. Rainier on the wet side, WA

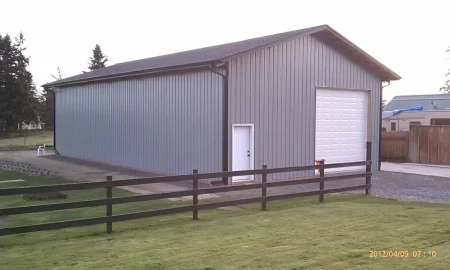

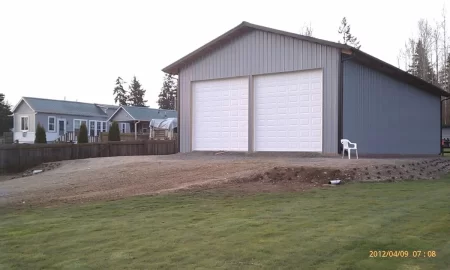

    I built this shed last year. 30x60 with 14 foot tall ceilings. Sitting just inside is a new, to me, fisher grandpa bear shop stove. I'll be setting a 6" all vertical class A chimney in before too long.

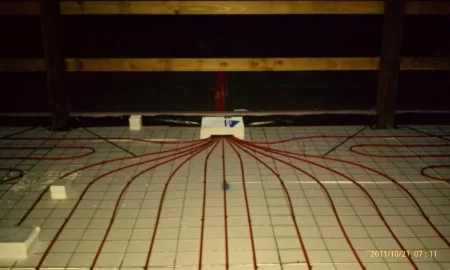

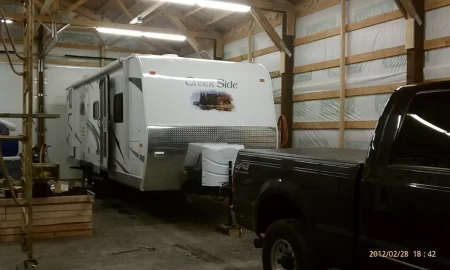

    I need the big barn for the RV. Three 12x12 overhead doors. 5" thick slab on top of 2" of foam with 1800LF of radiant heat tubing installed for floor heat.

    Attached Files:

  3. Dustin

    Dustin Feeling the Heat

    Joined:
    Sep 3, 2008
    Messages:
    346
    Loc:
    Western Oregon
    Nice set up!
  4. NickDL

    NickDL New Member

    Joined:
    Aug 27, 2012
    Messages:
    80
    Loc:
    Souderton, Pa
    Nice barn.
  5. MasterMech

    MasterMech Guest

    Highbeam, what's powering the radiant setup?
  6. charly

    charly Guest

    Nice job, the radiant lay out looks pin neat, like it! When I did my old garage years back, my friend who helped who did it for a living had us roll out two rolls side by side, that way if one loop failed you still had another loop in that same area. I thought that was a clever idea. Hands down the nicest heat there is. Great job! I like the way you necked all your tubes under the foam board.
  7. Highbeam

    Highbeam Minister of Fire

    Joined:
    Dec 28, 2006
    Messages:
    8,800
    Loc:
    base of Mt. Rainier on the wet side, WA
    Nothing yet, you only have one chance to install the tubes so I have them in place and that's it for this year unless I get really bored over the winter months. There are 6 loops of 300 feet each. Heating the water will most likely be done with a propane boiler and in order to avoid wasting propane I don't want to fire it up until the building is insulated and sealed. Right now I only have housewrap between the metal skin and the interior. Lots of heat loss.

    The tubes are still buried out of sight of the building inspector! The foam block where all the tubes go in the picture is a knock out so that I can dig that foam out and properly bring the tubes up into the room. You may notice other knock out blocks where I roughed in plumbing connections under the slab.
    Shane N, Trooper and MasterMech like this.
  8. Highbeam

    Highbeam Minister of Fire

    Joined:
    Dec 28, 2006
    Messages:
    8,800
    Loc:
    base of Mt. Rainier on the wet side, WA

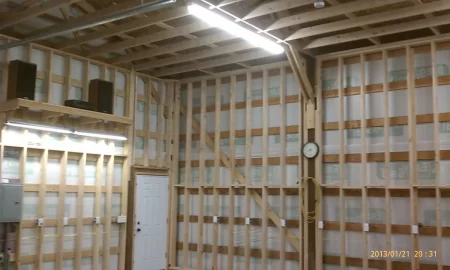

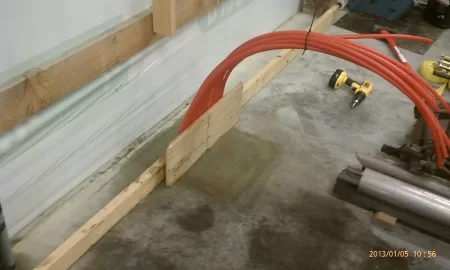

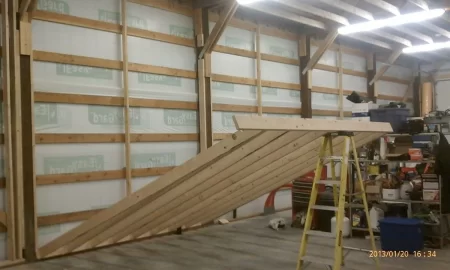

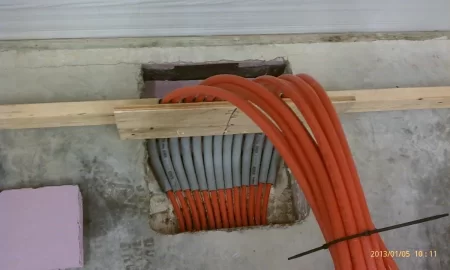

    A little update since I was alerted to this thread again. Got the radiant tubes up into the slab and organized properly. Now tilting up walls within the walls to allow insulation. Those walls are heavy, 14 feet tall and 12 feet wide, 2x6 16" on center. Can't wait to insulate and sheet.

    Attached Files:

  9. Gasifier

    Gasifier Minister of Fire

    Joined:
    Apr 25, 2011
    Messages:
    3,135
    Loc:
    St. Lawrence River Valley, N.Y.
    Nice work Highbeam. That is a really sweet building. Have you ever thought about a wood gassification boiler to heat heat that shop building and others? It is amazing what you can save in the long run and still enjoy burning wood. Heat multiple buildings and your domestic hot water for showers, dishes, laundry. High efficiency wood burners.
  10. Badfish740

    Badfish740 Minister of Fire

    Joined:
    Oct 3, 2007
    Messages:
    1,393

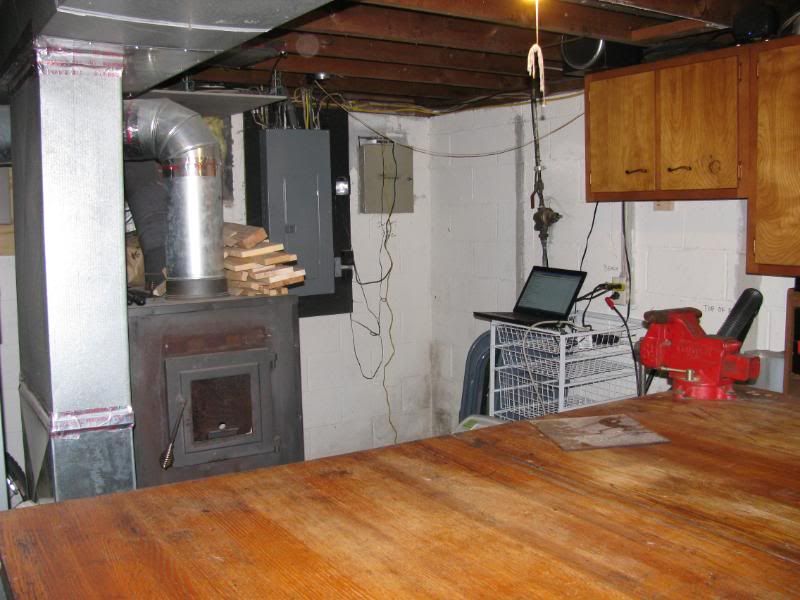

    Guess you could call my Englander a "shop stove" since it's in my basement shop:

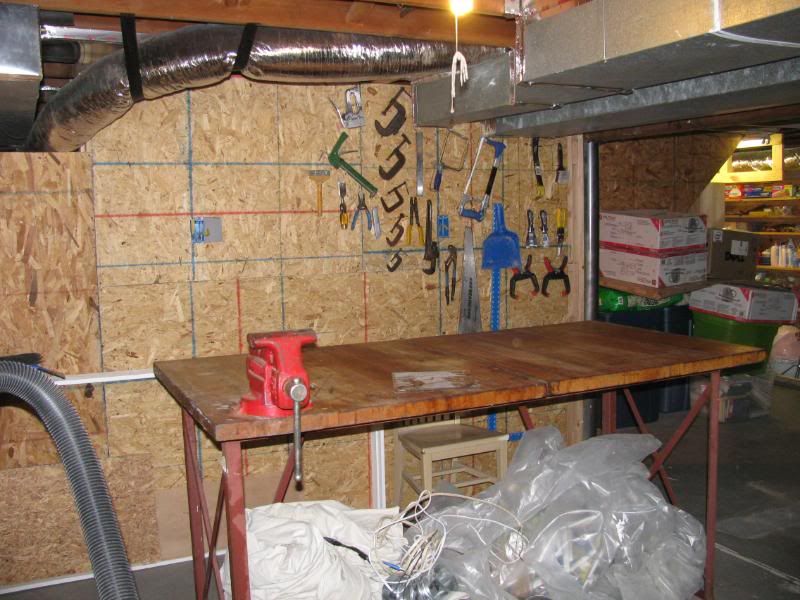

    Don't worry-this pic was taken in the middle of Summer right after I put the workbench in-I just stacked the wood up there temporarily. Note how rusty the old Englander was:
    [​IMG]

    I'd like to say that the toolboard still looks that neat-it doesn't :p
    [​IMG]

    The best part of having the Englander in the "shop":
    [​IMG]

    Until my wife yells down and says "What are you doing down there!?" ;lol
  11. Gasifier

    Gasifier Minister of Fire

    Joined:
    Apr 25, 2011
    Messages:
    3,135
    Loc:
    St. Lawrence River Valley, N.Y.
    Badfish, that is when you say working on a Christmas or birthday present for you! Then she can not come in your shop from that point until you give her the present. Just have to make sure you actually make her something at some point. ;lol
    Shane N and swagler85 like this.
  12. MasterMech

    MasterMech Guest

    [​IMG]

    Please note that Highbeam already has the most important piece of shop equipment installed, the stereo! >>
    Eatonpcat, Gasifier and ScotO like this.
  13. yooperdave

    yooperdave Minister of Fire

    Joined:
    Oct 26, 2010
    Messages:
    1,128
    Loc:
    Michigan's U.P.

    Yeah, the stereo...and at the height it is at, I hope he has a remote control!!
    Gasifier likes this.
  14. ScotO

    ScotO Guest

    No shortage of outlets in that shop, either! You can NEVER have too many outlets in the shop!!
    Freeheat likes this.
  15. Shane N

    Shane N Feeling the Heat

    Joined:
    Oct 16, 2012
    Messages:
    330
    Loc:
    West Central MN
    That is brilliant. I am totally stealing that idea.
    Gasifier likes this.
  16. Swedishchef

    Swedishchef Minister of Fire

    Joined:
    Jan 17, 2010
    Messages:
    2,271
    Loc:
    Quebec, Canada
    I, sir, hate you! Or envy you in a sick way.
  17. Thistle

    Thistle Minister of Fire

    Joined:
    Dec 16, 2010
    Messages:
    4,206
    Loc:
    Central IA
    No stove in my shop/garage,but there is a NG furnace that keeps it at least 55-60 when it can be 15 below zero outside that big door....

    Sorry about the mess,you know what they say about large flat surfaces - just something else to stack your crap on....;)

    Attached Files:

    Eatonpcat likes this.
  18. MasterMech

    MasterMech Guest

    Ha. My place is a diaster right now. ;em But with a foot + of snow on the way tonight, don't think I'll be hauling everything out to clean up anytime soon. :(
  19. ironpony

    ironpony Minister of Fire

    Joined:
    Jan 22, 2010
    Messages:
    1,777
    Loc:
    mid-ohio
    Highbeam, very nice job. what was the reasoning behind building a pole building then framing inside walls??? why not just build a complete frame building?? code? taxes? permits?
  20. Badfish740

    Badfish740 Minister of Fire

    Joined:
    Oct 3, 2007
    Messages:
    1,393
    I think he was looking for maximum R-value in the walls.
  21. Highbeam

    Highbeam Minister of Fire

    Joined:
    Dec 28, 2006
    Messages:
    8,800
    Loc:
    base of Mt. Rainier on the wet side, WA
    A few factors really. Time was a big one. I was able to build it quickly myself with a little bit of help and then finish it out as time allows. The pole structures are very accomodating of phased building. Another is strength, since each of the short walls has big overhead doors I would get no shear strength and the whole thing may fold up in a wind. The pole style results in frames at each pole that resist the sideloads.

    In the end, maybe I should have gone stick for the whole thing. Doing it myself saved a huge amount of money and this is the first big building I've done myself. All of the stick framing for the interior will only cost a couple thousand bucks. It's just a pile of boards after all.

    Could you imagine trying to tip up a 60 foot long wall 14 feet tall? The only alternative I seriously considered was a steel building but again, cost was so high.

    Wood heat in the shop was vetoed by the insurance company. I haven't decided if I'll do it anyway. The county would permit a shop stove which ticks me off.

    Oh and that stereo is that high to hide a framing deficiency from the inspector. Note that the girt behind the stereo is 6" higher than on the wall beside it. I knew it wasn't perfect and I knew it would be okay but an inspector might jerk me around. I have a remote for the stereo.
  22. SmokinPiney

    SmokinPiney Feeling the Heat

    Joined:
    Nov 25, 2008
    Messages:
    307
    Loc:
    In the Pines, NJ

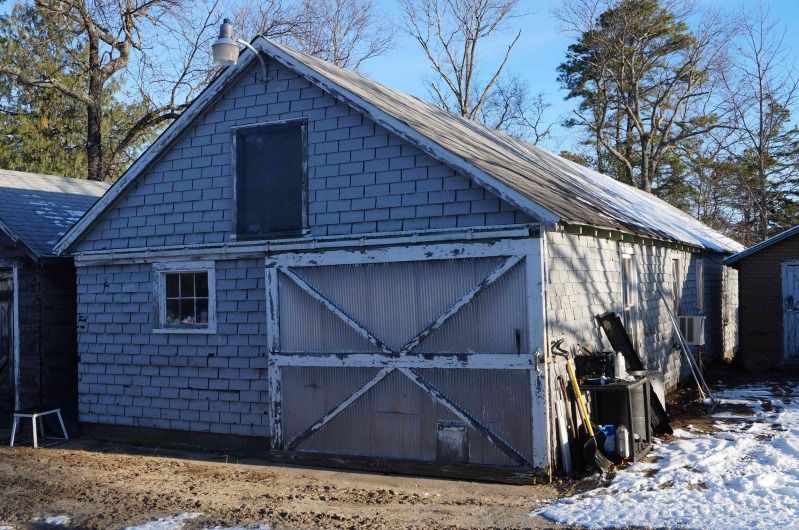

    My shop was built pre 50's and was my family's blueberry packing house. Needless to say i've slowly sorted through LOTS of old stuff over the years. I bought the property 8yrs ago and it's still a work in progress inside lol.

    It's roughly 25x70. I wish it were taller but a full size pickup still clears the ceiling.
    [​IMG]

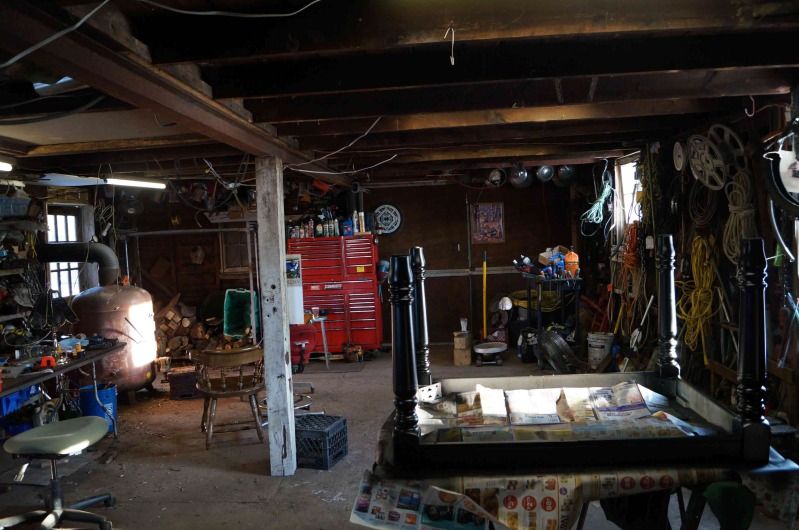

    The front half of the shop is heated and separated from the back by a large swingin door.
    [​IMG]

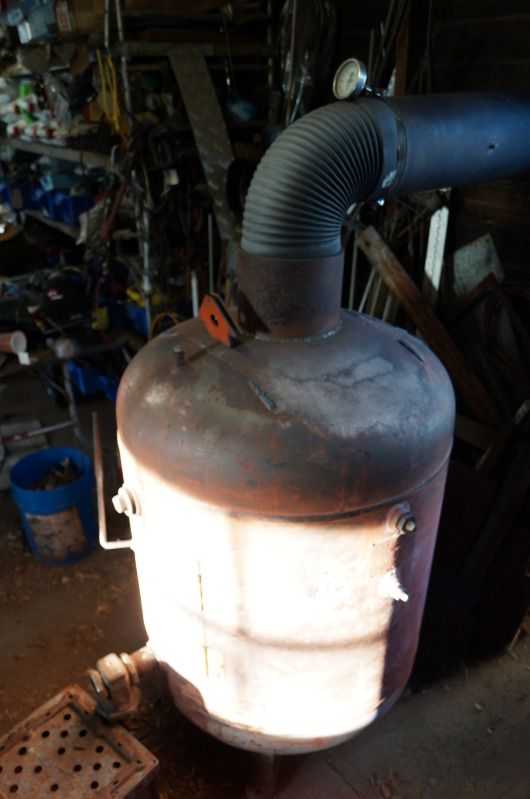

    Here's the wood monster. It's an old air tank converted into a stove. It's heavy wall steel so it stays hot for hrs even after the fire's gone out. Keeps the shop 70+ even in the teens.
    [​IMG]

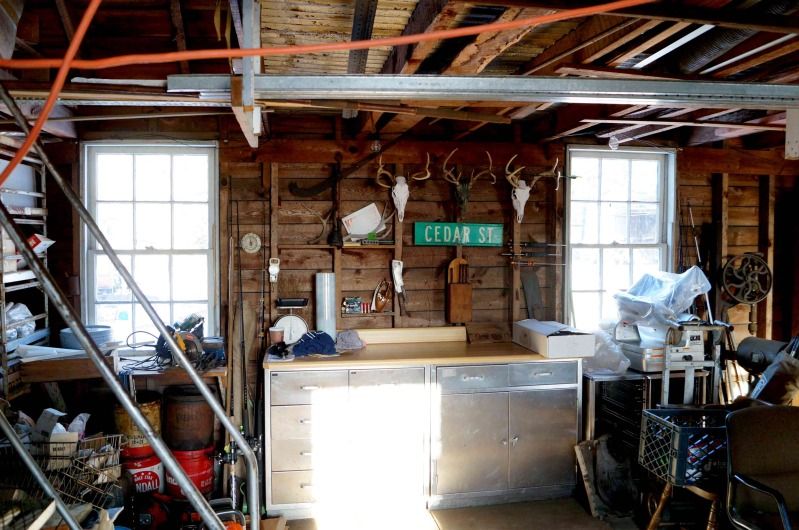

    My huntin and fishin workbench in the back half.
    [​IMG]
    Eatonpcat, Thistle and Badfish740 like this.
  23. Badfish740

    Badfish740 Minister of Fire

    Joined:
    Oct 3, 2007
    Messages:
    1,393
    Piney Power! Awesome stove!
  24. Eatonpcat

    Eatonpcat Minister of Fire

    Joined:
    Jul 24, 2011
    Messages:
    2,074
    Loc:
    Eaton Township, Ohio
    Nice shops!!
  25. nate379

    nate379 Guest

    When can I move in?
