Hi all, I just picked up a beautiful used Striker S-160, all the bricks were out of their place, is there a layout diagram out there somewhere? Looking but no luck, thank you!

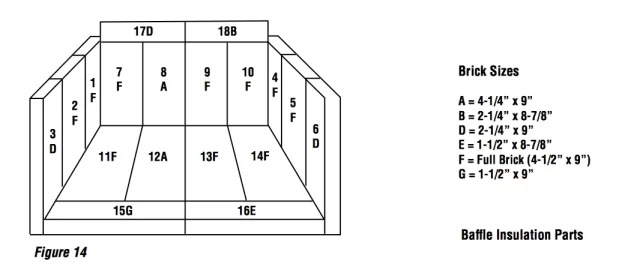

From the manual:
Screen Shot 2014-10-27 at 11.43.12 PM.png
