Post in 'The Boiler Room - Wood Boilers and Furnaces' started by Steve1, Jan 3, 2011.

  1. Steve1

    Steve1 New Member

    Joined:
    Jan 3, 2011
    Messages:
    12
    Loc:
    Southern New Jersey
    I have a Furnace Works Model SFB-3 wood boiler that was manufactured in the late 70's early 80's. The company is no longer around. I need a damper motor for this unit and Im unable to find parts. Has anyone heard of this boiler and can direct me on where to find parts for it?

    Helpful Sponsor Ads!





  2. Singed Eyebrows

    Singed Eyebrows New Member

    Joined:
    Jan 22, 2009
    Messages:
    1,420
    Loc:
    Midwest
    Hi, Welcome to Hearth. I think I saw this on Ebay, there were 2 of these. You probably need a Samson damper control. You can get this at Connecticut Green Heat. Search boilers on their site, scroll down to Atmos & you will see Honeywell/Braukman listed. This is a good price, Randy
  3. Steve1

    Steve1 New Member

    Joined:
    Jan 3, 2011
    Messages:
    12
    Loc:
    Southern New Jersey
  4. Singed Eyebrows

    Singed Eyebrows New Member

    Joined:
    Jan 22, 2009
    Messages:
    1,420
    Loc:
    Midwest
    Yep, they had 2 of these on Ebay. Is there a chain that attaches to the damper? If chain is missing is there an attachment point? Is there an adjustable thermostatic actuator(Samson) on the top of the boiler? Not the electrical aquastat. Pictures of the top of your boiler would be helpfull, Randy
  5. pybyr

    pybyr Minister of Fire

    Joined:
    Jun 3, 2008
    Messages:
    2,301
    Loc:
    Adamant, VT 05640
    When you say "motor"-- is it a grey box with a crank arm on the side that lifts a chain to lift the damper? Some of the older wood units (like my old wood/ hot air Sam Daniels) used a system like that with a Honeywell motor-

    http://customer.honeywell.com/Honey...nnelID=B02CD9124-96F3-4A04-8EA7-1777CCCAD5B3D

    Probably not cheap, and so you may want to really test the motor you have to see if it might be something else in the controls.
  6. Steve1

    Steve1 New Member

    Joined:
    Jan 3, 2011
    Messages:
    12
    Loc:
    Southern New Jersey
    Thats the problem, The old motor is missing so i have no idea what im looking for. All I do know is it has a 1 to 1 1/2" shank sticking out from the side of the damper and a mounting bracket that the motor for lack of a better term mounts to the underside of. There is also an aquastat taped and mounted to the top of the unit that is disconected. I assume that the aquastat was some how connected to the damper motor scenseing temp from the wood stove and telling the damper when to open and close.
  7. Steve1

    Steve1 New Member

    Joined:
    Jan 3, 2011
    Messages:
    12
    Loc:
    Southern New Jersey
    I will try to get some pictures snapped today. Thanks for the reply.
  8. Steve1

    Steve1 New Member

    Joined:
    Jan 3, 2011
    Messages:
    12
    Loc:
    Southern New Jersey
    There is no chain or chain attachment point. I think your right about the adjustable thermostatic actuator. Im going to be honest with you this is my first experiance with anything like this and im learning as I go. Thank you for your reply. Im going to try and get some pictures posted.
  9. Singed Eyebrows

    Singed Eyebrows New Member

    Joined:
    Jan 22, 2009
    Messages:
    1,420
    Loc:
    Midwest
    Steve, I think you need to install a Samson control on this. This will involve either drilling & tapping the top of the boiler near the edge for, I believe 1/2" pipe thread, or drilling the same & welding in a 1/2" steel 1/2 coupling. If you have 1/4" plate at that point tapping should be fine. A chain will run down to the damper & lift this variably with water temp. The damper cannot be real heavy, if its cast iron or heavy gage you will need to remake one out of sheet metal, Randy
  10. Steve1

    Steve1 New Member

    Joined:
    Jan 3, 2011
    Messages:
    12
    Loc:
    Southern New Jersey
    I do have two taps in the top of the boiler. One has a threaded cap in it which i believe is for a temp guage and the other has what to me looks similar to the high-low temp setting on the front of my oil boiler. This is the box I set my high and low temp setting for my oil boiler to kick on and off. Sorry if Im being remedial but Im not sure what things are called and trying to explain the best I can. The box on top of the wood boiler is a honeywell and has the round dial inside of the box to set a high-low temp. I wish I could send a picture but Im on my work computer and they dont allow pictures to be uploaded and I just moved into my house and dont have internet yet.
  11. Steve1

    Steve1 New Member

    Joined:
    Jan 3, 2011
    Messages:
    12
    Loc:
    Southern New Jersey
    The link that pybyr has posted looks like something that may work if I canfigure out the mechanics of it.
  12. Steve1

    Steve1 New Member

    Joined:
    Jan 3, 2011
    Messages:
    12
    Loc:
    Southern New Jersey
    I was finaly able to take some pictures.

    Attached Files:

    • 5.jpg
      File size:
      12.7 KB
      Views:
      641
  13. Steve1

    Steve1 New Member

    Joined:
    Jan 3, 2011
    Messages:
    12
    Loc:
    Southern New Jersey
    Pic of damper with mounting bracket.

    Attached Files:

    • 1.jpg
      File size:
      17.9 KB
      Views:
      595
  14. Steve1

    Steve1 New Member

    Joined:
    Jan 3, 2011
    Messages:
    12
    Loc:
    Southern New Jersey

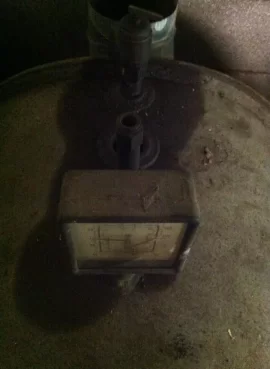

    Pic of top of boiler with the control boxes.

    Attached Files:

    • 4.jpg
      File size:
      16.2 KB
      Views:
      513
  15. Steve1

    Steve1 New Member

    Joined:
    Jan 3, 2011
    Messages:
    12
    Loc:
    Southern New Jersey

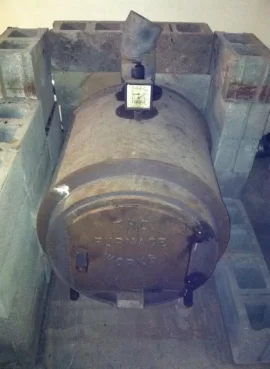

    front view of top.

    Attached Files:

    • 3.jpg
      File size:
      17.7 KB
      Views:
      491
  16. Steve1

    Steve1 New Member

    Joined:
    Jan 3, 2011
    Messages:
    12
    Loc:
    Southern New Jersey

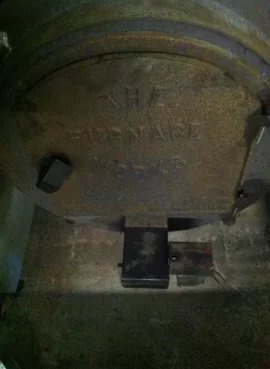

    Another front view. I know its old but it works really well. I would like to switch to newer model someday but money is tight right now so Im hoping to get this one fixed for now. Any Ideas?

    Attached Files:

    • 2.jpg
      File size:
      12.8 KB
      Views:
      538
  17. todd h

    todd h New Member

    Joined:
    Nov 10, 2011
    Messages:
    2
    Loc:
    ct
    Dear Steve1 Grainger has the part you need grainger item #2KKN3 or Honeywell PN:802360JA/U. Any ??? call TODD 860 274 0705 I have replaced the motor on my wood boiler, I have the same unit you do.
  18. Birch

    Birch New Member

    Joined:
    Sep 10, 2011
    Messages:
    2
    Loc:
    Central MI

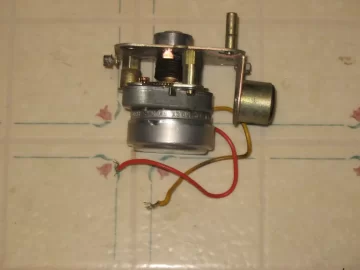

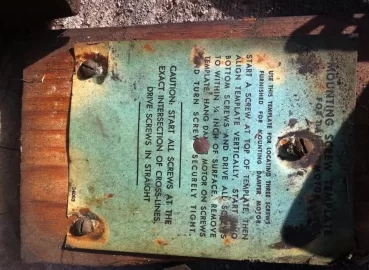

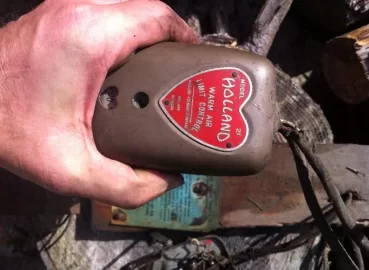

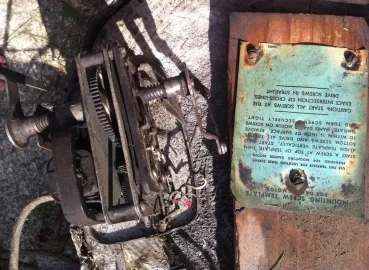

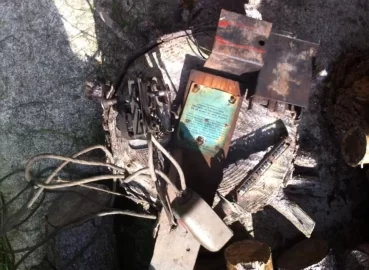

    The honeywell 8043 and 8044 zone valve motors are a direct replacement.He will also need the Erie Motortrol that the motor bolts to.See Pics

    Attached Files:

  19. peakbagger

    peakbagger Minister of Fire

    Joined:
    Jul 11, 2008
    Messages:
    1,493
    Loc:
    Northern NH
    The controls on my similiar era boiler consist of two temperature switches on the boiler water jacket. One switch is an overheat switch that opens up a dump valve to circulate excess heat through one of my zones, I think mine is set at 205 degrees. The other switch is set lower, possibly 195 degrees, it controls the damper motor, when the temperature goes above 185 degrees, the switch opens and the damper motor shuts the damper until the temp drops. The circulator pump was set up to run all the time there was power on the boiler. I installed another temperature switch on the jacket that starts the pump once it goes over 140 degrees. In addition to the switches there are also two safety relief valves, One dumps to the floor and the other sprays in the firebox. The Firebox one is supposed to be set below the one that dumps to the floor but I havent been able to find one set at 27 PSI. My damper uses the asme Honeywell motor but it runs a lever that is hooked to a chain on a damper plate. HS tarm used to use the thermostatic damper that didnt need power to operate.

    A general note is to try not to run the boiler wth the damper closed by limiting the amount of wood you put in the firebox. With the damper open you have a reasonably clean stove, but with it closed you have a "smoke dragon" which is also causing creosote.
