Thermometer pic: Condar & Tel Tru

Post in 'The Gear' started by Knots, Mar 16, 2013.

  1. Knots

    Knots
    Expand Collapse
    Minister of Fire

    Joined:
    Mar 13, 2013
    Messages:
    857
    Likes Received:
    371
    Loc:
    Alfred, Maine
    Background: I'm currently renting a house that I'm heating (attempting to) with an old Portland Stove Foundry, Atlantic 224 while I build a house later this year. So, I was at the the stove shop looking at new stoves and I bought a Condar on an impulse. Being a geek, it bothered me that I did not know how accurate it was, so I shelled out for a Tel Tru.

    I now have $70.00 worth of instrumentation on a $100.00 stove. _g

    Anyway, I want some gauges on the Jotul 'cuz it will be my first new stove and I want an idea what's going on with it.

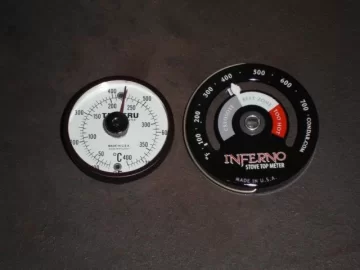

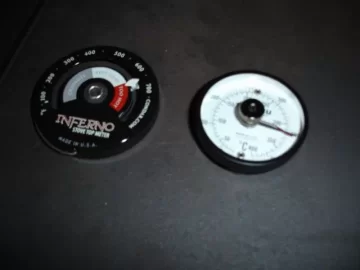

    So, here's a pic of the two side-by-side on the stove while some dead-fall pine brings it a little further up to temp than I want. Sorry for the fuzziness - it was the best I could do. The Condar is reading about 650 and the Tel Tru says 600.


    Collapse Signature Expand Signature

    Helpful Sponsor Ads!





  2. BobUrban

    BobUrban
    Expand Collapse
    Minister of Fire

    Joined:
    Jul 24, 2010
    Messages:
    1,898
    Likes Received:
    1,108
    Loc:
    Central Michigan
    IMO a magnetic coil spring thermometer is an estimate and I use it as such. Regardless if it is inaccurate by 20-50 degrees it remain consistantly that way and gives me a fair point of reference to what is going on inside. For the anal, tel tru is high end stuff. I have one that I used on the competition BBQ pit I built. Cost so much I kept it when I sold the pit for 1500.00 clams. It was just too darn big for a single dude. My plan is to build another that is a bit smaller for personal use and more practical for small backyard parties. The tel tru will be mounted on the front!!

    Collapse Signature Expand Signature
    Jack Fate and ScotO like this.
  3. Knots

    Knots
    Expand Collapse
    Minister of Fire

    Joined:
    Mar 13, 2013
    Messages:
    857
    Likes Received:
    371
    Loc:
    Alfred, Maine
    Yeah - it looks like the Condar is plenty accurate enough. It bothered me that I didn't know - now I do.

    Collapse Signature Expand Signature
  4. charly

    charly
    Expand Collapse
    Guest

    Shoot those two spots with an IR gun,, I know on my Fieview, a few inches left or right on the hot spot , the temperature can drop off a bit.. The gauges might not be as far off as you think...

    jeff_t and Backwoods Savage like this.
  5. Jack Fate

    Jack Fate
    Expand Collapse
    Feeling the Heat

    Joined:
    Jan 17, 2013
    Messages:
    431
    Likes Received:
    123
    Loc:
    Northwest Ohio


    I got a PLC and it also runs less than others (certified calabration)


    But hey thanks I never thought to use it on my weber kettle!

    Got 4 of them 2 got temps 2 don't

    Thanks & Cheers

    Collapse Signature Expand Signature
  6. charly

    charly
    Expand Collapse
    Guest

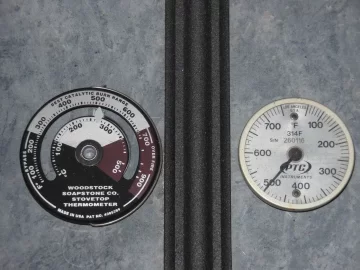

    Here's my Woodstock gauge and my PTC gauge,,, pretty darn close...
    FireView 001.JPG

    Backwoods Savage likes this.
  7. Knots

    Knots
    Expand Collapse
    Minister of Fire

    Joined:
    Mar 13, 2013
    Messages:
    857
    Likes Received:
    371
    Loc:
    Alfred, Maine
    Sorry - I don't have an IR and I'm not spending any more on this! I'll try putting them closer.

    Collapse Signature Expand Signature
  8. Backwoods Savage

    Backwoods Savage
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 14, 2007
    Messages:
    27,815
    Likes Received:
    7,367
    Loc:
    Michigan
    Aw go ahead Knots. You can get one for about $15 at Harbor Freight.

    Collapse Signature Expand Signature
    Tuneighty and raybonz like this.
  9. BobUrban

    BobUrban
    Expand Collapse
    Minister of Fire

    Joined:
    Jul 24, 2010
    Messages:
    1,898
    Likes Received:
    1,108
    Loc:
    Central Michigan
    Better yet Knotts - swap spots on the stove. Then you will be certain if the location is the difference.

    Collapse Signature Expand Signature
  10. Knots

    Knots
    Expand Collapse
    Minister of Fire

    Joined:
    Mar 13, 2013
    Messages:
    857
    Likes Received:
    371
    Loc:
    Alfred, Maine
    This place is gonna be a bad influence on my wallet...:eek:

    Collapse Signature Expand Signature
    n6crv likes this.
  11. Knots

    Knots
    Expand Collapse
    Minister of Fire

    Joined:
    Mar 13, 2013
    Messages:
    857
    Likes Received:
    371
    Loc:
    Alfred, Maine
    Yeah - that just occurred to me. I put them closer together earlier, but there's still about a 40 degree difference. Not bad for some ribbons of wire.

    Collapse Signature Expand Signature
  12. Jack Fate

    Jack Fate
    Expand Collapse
    Feeling the Heat

    Joined:
    Jan 17, 2013
    Messages:
    431
    Likes Received:
    123
    Loc:
    Northwest Ohio
    I did many times & found not a great diff max 50 degree or less

    do like the lazy hand on it ( for max readings)

    and I know you can fabracate a paper clip to do the same on those HF china meters or others


    I will buy an american option if possiable

    but I will admit sometimes we (usa) make some junk too ( damn bean counters )


    cheers all
    -
    6.3+

    Collapse Signature Expand Signature
  13. charly

    charly
    Expand Collapse
    Guest

    Bottom line,,, I wouldn't worry about a 50 degree difference unless you are adamant about running your stove at it's max temp on a continuous basis...

    Jack Fate likes this.
  14. Knots

    Knots
    Expand Collapse
    Minister of Fire

    Joined:
    Mar 13, 2013
    Messages:
    857
    Likes Received:
    371
    Loc:
    Alfred, Maine
    Well, I swapped them this morning. Now the Condar is reading slightly low relative to the Tel Tru. I would guess the Condar is pretty accurate then (assuming the Tel Tru is...um...telling true).


    Collapse Signature Expand Signature
    charly likes this.
  15. BobUrban

    BobUrban
    Expand Collapse
    Minister of Fire

    Joined:
    Jul 24, 2010
    Messages:
    1,898
    Likes Received:
    1,108
    Loc:
    Central Michigan
    My money is on the tel tru being very accurate. For my BBQ pit I take all my therms(tel tru and cheap probe types for the meat itself) and place them in boiling water for an accuracy test. Water boils at a known temp(212F - 99.98C) so it provides and easy method to check thermometer accuracy. Unfortunately I am not sure how to do that with a magnetic?? Maybe hold it in the water with a wire, paper clip or coat hanger if finding out the exactness of the therms accuracy is important to you. For me, accuracy is only important when I am trying to cook perfect brisket or pork shoulders :)

    Collapse Signature Expand Signature
  16. Knots

    Knots
    Expand Collapse
    Minister of Fire

    Joined:
    Mar 13, 2013
    Messages:
    857
    Likes Received:
    371
    Loc:
    Alfred, Maine
    I'm guessing that it's pretty accurate being fresh from the factory. Good enough for wood stove use.

    Collapse Signature Expand Signature
  17. DexterDay

    DexterDay
    Expand Collapse
    Guest

    I would put my money on the Tel-Tru also.

    More coils, protected from any wind or blower interference, on the bottom. And used by many BBQ's world wide.

    Condars are a good instrument also. I have bought 5 different stove top thermos. The Tel-Tru has tested to be the most accurate. When compared with 2 different IR guns.

  18. KodiakII

    KodiakII
    Expand Collapse
    Feeling the Heat

    Joined:
    Jan 17, 2011
    Messages:
    492
    Likes Received:
    99
    Loc:
    Eastern Ontario
    What model of tel tru is that, and where did you get it?

    Collapse Signature Expand Signature
  19. DexterDay

    DexterDay
    Expand Collapse
    Guest

    I got mine direct from Tel-Tru. I.got the extra needle to tell me what my hottest temp was. They are pricey, but they work well.

    Select the 50°/750° and I.got a Single min/max needle added, its $65.07 w/o shipping.

    http://www.teltru.com/p-496-dual-magnet-thermometer-dm.aspx

  20. Knots

    Knots
    Expand Collapse
    Minister of Fire

    Joined:
    Mar 13, 2013
    Messages:
    857
    Likes Received:
    371
    Loc:
    Alfred, Maine
    I got it the same place Dexter did. You have to select the higher temperature model from the drop-down menu.

    Collapse Signature Expand Signature
  21. KodiakII

    KodiakII
    Expand Collapse
    Feeling the Heat

    Joined:
    Jan 17, 2011
    Messages:
    492
    Likes Received:
    99
    Loc:
    Eastern Ontario
    I'll have to find a Canadian dealer, it appears they don't ship directly to Canada.

    Collapse Signature Expand Signature
  22. Knots

    Knots
    Expand Collapse
    Minister of Fire

    Joined:
    Mar 13, 2013
    Messages:
    857
    Likes Received:
    371
    Loc:
    Alfred, Maine
    Must be a national security thing. Critical thermometer technology. ;lol

    Collapse Signature Expand Signature
  23. KodiakII

    KodiakII
    Expand Collapse
    Feeling the Heat

    Joined:
    Jan 17, 2011
    Messages:
    492
    Likes Received:
    99
    Loc:
    Eastern Ontario
    Like the synthetic stock that is on the restricted list! :mad:

    Collapse Signature Expand Signature
  24. Knots

    Knots
    Expand Collapse
    Minister of Fire

    Joined:
    Mar 13, 2013
    Messages:
    857
    Likes Received:
    371
    Loc:
    Alfred, Maine
    Accurate magnetic thermometers (key component for making WMB - Weapons of Mass BBQ). Synthetic stocks. We can not let the Canadians get this!

    Think of what would happen! Yummy beef and people hunting in the rain right on our northern border! It just won't do!

    What's next? Bagged milk coming south?!?
