Thermostat configuration question on an Empress Pellet stove

dhunter_02 Posted By dhunter_02, Aug 16, 2008 at 9:37 PM

Thread Status:
Not open for further replies.
  1. dhunter_02

    dhunter_02
    New Member

    Aug 16, 2008
    2
    0
    Loc:
    Wyoming
    Last year our circuit board went out in our Envior Empress Free standing. We got a new board and tryed to hook up the thermostat and it won't power the stove. We have went out and bought a new digital one but still doesnt seem to work. I've looked at the technical manual and it has a flip switch for either auto on/off, manual or hi/low. Now I dont have anything like that on mine, all i have is two sets of prongs on the back which i think might be it, but also have no idea where it should be bridged at. Now there are two rows, the bottom row has (5) prongs and the top row has (4) prongs and Im looking for it to be the auto on/off setting. If anyone could help me with this I would be greatful. Would be nice to have heat all the time this year before it snows!

  2. seige101

    seige101
    Minister of Fire

    Mar 25, 2008
    621
    79
    Loc:
    Western MA
    There is a jumper on the board it self you must change to change to a different mode. I will snap some pics tomorrow and post them on here. Also look for the newer owners manual it also has the correct settings in there.

  3. apanouli

    apanouli
    New Member

    Sep 13, 2008
    1
    0
    Hi,
    I was wondering if you had those pics of the config for the jumper board. My husband and I have a empress freestanding and our manual has the mode switch but our stove doesn't. We want to set it up with a thermostat.
    Thanks

  4. jawquin

    jawquin
    Member

    Mar 7, 2008
    53
    0
    Loc:
    Quincy, IN
  5. seige101

    seige101
    Minister of Fire

    Mar 25, 2008
    621
    79
    Loc:
    Western MA
    Dooh totally forgot about this thread, will have them for your tomorrow

  6. seige101

    seige101
    Minister of Fire

    Mar 25, 2008
    621
    79
    Loc:
    Western MA

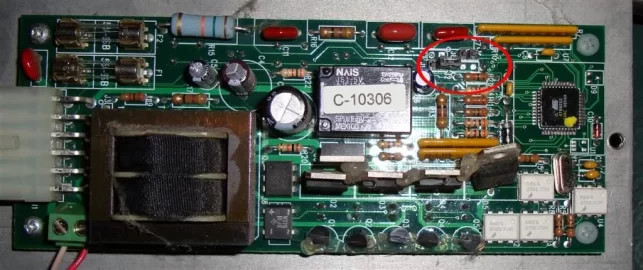

    Here is a picture showing the jumper in the hi-low setting. To go to thermostat setting move the jumper to the set of pins to the right.

    If you need a picture with more detail or resolution let me know, and sorry for the delay!


    Attached Files:
