Water storage load on concrete basement floor?

Post in 'The Boiler Room - Wood Boilers and Furnaces' started by natemth, Mar 9, 2012.

  1. natemth

    natemth
    Expand Collapse
    Member

    Joined:
    Mar 9, 2012
    Messages:
    6
    Likes Received:
    0
    Loc:
    Central, VT
    First Post here. Question for all that are putting in water storage, any considerations to be made regarding the weight of water storage on a concrete basement floor? Going to be building a new house and if placing tanks to hold 500-1000 gallons is something to think about I would get that in the foundation plan.


    Helpful Sponsor Ads!





  2. skfire

    skfire
    Expand Collapse
    Feeling the Heat

    Joined:
    Nov 15, 2010
    Messages:
    365
    Likes Received:
    113
    Loc:
    NEPA
    Most 4"-6" residential slabs poured correctly and on sufficient subgrade would handle avg tank stationary loads.
    If vertical tanks are being utilized, then the usage of steel "spreader" plates is an option(I did).

    If existing slab is deemed insufficient, pouring a reinforced concrete pad(4") may be required.

    If new slab(in case mentioned here), additional reinforcement and better subgrade at localized area of tanks would be easy and cheap.

    Just plan accurately.

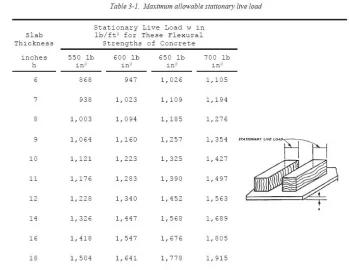

    See attached table for some data.

    Scott


    Attached Files:

    Collapse Signature Expand Signature
  3. huffdawg

    huffdawg
    Expand Collapse
    Minister of Fire

    Joined:
    Oct 3, 2009
    Messages:
    1,212
    Likes Received:
    70
    Loc:
    British Columbia Canada
    I have 2 vertical 500 gal propane tanks ,each one welded to a 22" truck rim. They are sitting on 4 to 6 " of concrete with 1/4 " rebar grid in the pour. The slab itself was poured over 2 high density foam . Underneath that I have 3' of pit run that I compacted every 6 to 8" then 4" of sand on top of that leveled out nice and flat. Not even a crack so far (knock on wood)!

    Huff

    Collapse Signature Expand Signature
  4. natemth

    natemth
    Expand Collapse
    Member

    Joined:
    Mar 9, 2012
    Messages:
    6
    Likes Received:
    0
    Loc:
    Central, VT
    Good then I wasn't thinking I would be overbuilding this. Probably will pour it like I will for the footings under both the girder columns and under the chimney and then I won't have to worry about it. Thanks

  5. skfire

    skfire
    Expand Collapse
    Feeling the Heat

    Joined:
    Nov 15, 2010
    Messages:
    365
    Likes Received:
    113
    Loc:
    NEPA
    pour an extra footer directly under the tank location and you are golden
    scott

    Collapse Signature Expand Signature
  6. 711mhw

    711mhw
    Expand Collapse
    Feeling the Heat

    Joined:
    Dec 7, 2010
    Messages:
    460
    Likes Received:
    104
    Loc:
    Western ME
    Perfect. You might throw a couple of #4 bars 3-4' long in just incase your sub grade is not what you think it is. (about $20).

    Collapse Signature Expand Signature
  7. NP ALASKA

    NP ALASKA
    Expand Collapse
    Member

    Joined:
    Feb 3, 2008
    Messages:
    194
    Likes Received:
    23
    Loc:
    North Pole, ALASKA
    I am curious, how thick of spread plate would you use?

    I am installing 3 tanks, 2-500 gallon propane tanks stacked with saddle configuration and 1-250 gallon propane tank mounted vertically. They will be centrally located together. I was thinking of a 1/2 steel plate for them to sit on and distribute the weight. Is this thick enough? One would be 9' long and 40" wide. The other would be roughly 45" by 45".

    Any thoughts??

    Garage floor 4-6 inches? Didnt build it, but I know the guy that did. He said 4" for sure and probably closer to 6" on the outside edges.

    Collapse Signature Expand Signature
  8. ewdudley

    ewdudley
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 17, 2009
    Messages:
    1,976
    Likes Received:
    308
    Loc:
    Cayuga County NY
    Half inch plate? Holy overkill, Bat Man.

    I wouldn't worry about it whatsoever. Two five hundred gallon tanks ain't jack, you could set them on a sheet of three quarter inch plywood out on the lawn.

    Concrete is very strong in compression and would have to be quite thin or would need to have very poor material underneath it to create a problem, with or without re-bar.

    I've seen plenty of one to four thousand gallon bulk milk tanks over the years that set directly on random milkhouse floors supported only by four, six, or eight posts with little quarter inch thick pads a couple inches square.

    --ewd

    huffdawg likes this.
  9. Fred61

    Fred61
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 26, 2008
    Messages:
    1,965
    Likes Received:
    376
    Loc:
    Southeastern Vt.
    If I were building a new home at this time it wouldn't have enough heat loss to warrent the smallest wood boiler made.
    Build a home that doesn't need that amount of heat input. Take advantage of the sun and the super insulated building designs available.
    Do alot of homework!

    Collapse Signature Expand Signature
  10. skfire

    skfire
    Expand Collapse
    Feeling the Heat

    Joined:
    Nov 15, 2010
    Messages:
    365
    Likes Received:
    113
    Loc:
    NEPA
    1/2" steel plate is way too excessive, I used 1/8".
    Scott​

    Collapse Signature Expand Signature
  11. NP ALASKA

    NP ALASKA
    Expand Collapse
    Member

    Joined:
    Feb 3, 2008
    Messages:
    194
    Likes Received:
    23
    Loc:
    North Pole, ALASKA
    Thanks for all the input.
    Not sure which way I go, I have always been the guy that builds things to with stand an earth quake. Whihc we have pretty regular here in Alaska.

    Thanks

    Collapse Signature Expand Signature
  12. skfire

    skfire
    Expand Collapse
    Feeling the Heat

    Joined:
    Nov 15, 2010
    Messages:
    365
    Likes Received:
    113
    Loc:
    NEPA
    If you truly have seismic considerations and you need restraints put on, then contact me if you need some seismic bracing details, and material lists.

    Regarding "overbuilding" for safety factors, I am with you....sometimes it may only help in sleeping better at nights...but hey.. I'll take that.

    Good luck man.

    Scott

    Collapse Signature Expand Signature
  13. natemth

    natemth
    Expand Collapse
    Member

    Joined:
    Mar 9, 2012
    Messages:
    6
    Likes Received:
    0
    Loc:
    Central, VT
    Sure there are things that could be done differently from what I'm going to do but they can come at a much greater cost. Say you could get spray foam insulation and not have next to no infiltration and a R value as high as you can get, but the price.... forget about it.

    My quick heat loss calcution for the house (that doesn't do a good job with dealing with any concrete that's above grade) is 45,000 btus at peak for the 2000sq ft home. And this doesn't include the garage or dhw. So say 70k btu's at peak for a quick estimate.

    I think a wood boiler is a nice fit for all that. Probably even the 40 size from eko or vigas over the 25

  14. woodsmaster

    woodsmaster
    Expand Collapse
    Minister of Fire

    Joined:
    Jan 25, 2010
    Messages:
    2,781
    Likes Received:
    136
    Loc:
    N.W. Ohio
    I think a 40kw boiler would probably be to big for a 2000 sq' house unless you have some storage to heat. I'll
    bet a 25Kw would be a better fit. I Know my boiler is oversized a lot for my heat load, but I have
    storage and wanted the longer fire box. I also wanted to be able to add on to the house and maybe the shop.

    Collapse Signature Expand Signature
  15. NP ALASKA

    NP ALASKA
    Expand Collapse
    Member

    Joined:
    Feb 3, 2008
    Messages:
    194
    Likes Received:
    23
    Loc:
    North Pole, ALASKA
    I actually have been planning for this type of situation. I have woke up to shakes and found my dresser dancing across the floor before.

    My thought was to use pallet racking and anchor that with unistrut to the wall. Adding feet to metal spread plate and anchor the tanks to it, while anchoring it to the floor.

    Your thoughts?

    Collapse Signature Expand Signature
  16. natemth

    natemth
    Expand Collapse
    Member

    Joined:
    Mar 9, 2012
    Messages:
    6
    Likes Received:
    0
    Loc:
    Central, VT
    Just did another quick and dirty heat loss calc for the garage would be in the neighborhood of 15000 btu's at peak (trying to maintain 50 on 0 degree day), 672 sqft plus the dhw and 500gals of storage.

  17. skfire

    skfire
    Expand Collapse
    Feeling the Heat

    Joined:
    Nov 15, 2010
    Messages:
    365
    Likes Received:
    113
    Loc:
    NEPA
    Weld 4 L brackets to bottom ring of tanks, then bolt through to floor, and then use some longitudinal bracing(do you have a poured wall adjacent?) for sway.

    Scott

    Collapse Signature Expand Signature
  18. NP ALASKA

    NP ALASKA
    Expand Collapse
    Member

    Joined:
    Feb 3, 2008
    Messages:
    194
    Likes Received:
    23
    Loc:
    North Pole, ALASKA
    The wall is not poured but it is 12 inches, double wall construction. I am hoping just secureing it to wall to prevent tip overs as best it can is acceptable. If things get much worse than that Im moving out anyhow. HAHA

    Collapse Signature Expand Signature
