What are These Brackets For?

Post in 'The Hearth Room - Wood Stoves and Fireplaces' started by Sawnami, Oct 10, 2006.

Thread Status:
Not open for further replies.
  1. Sawnami

    Sawnami New Member

    Joined:
    Oct 10, 2006
    Messages:
    9

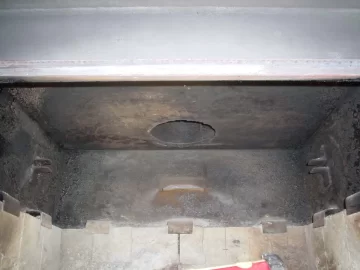

    I've got an old Kodiak fireplace insert that I believe was made by Alaska Stove Company. I'm trying to find out the purpose of the brackets inside of the firebox. They are at the rear and toward the top. They are about 4 1/2" from the top and the side brackets are about 7" from the back. The space between the side brackets is 3/4".

    I've been told that they may be for some sort of baffle to divert heat toward the front of the insert before it finds it's way out of the flue. If it is for a baffle, would it be made of steel and how thick would it be?

    Attached Files:

    Helpful Sponsor Ads!





  2. webbie

    webbie Seasoned Moderator Staff Member

    Joined:
    Nov 17, 2005
    Messages:
    12,290
    Loc:
    Western Mass.
    Looks like slots to hold a steel baffle plate in place.
  3. Roospike

    Roospike New Member

    Joined:
    Nov 19, 2005
    Messages:
    2,859
    Loc:
    Eastern Nebraska
    Glad to see you followed the link over to the Hearth forum i posted for your questions Sawnami. There will be some Kodiak brainers along before too long.

    Did you buy a new home with this pre unit installed ?
  4. Roospike

    Roospike New Member

    Joined:
    Nov 19, 2005
    Messages:
    2,859
    Loc:
    Eastern Nebraska
    Thats what i was thinking ........ I told Sawnami on the chainsaw forum a steel plate baffle or a burn chamber , I dont know much of this brand or age so he was linked to the pros.
  5. Sawnami

    Sawnami New Member

    Joined:
    Oct 10, 2006
    Messages:
    9
    I actually bought it used and installed it in my fireplace last year. I contacted the manufacturer but they weren't real helpful. I thought I'd see if something belonged there that would would improve it's performance.

    Thank you for the link! This looks like a great site.
  6. begreen

    begreen Mooderator Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    47,124
    Loc:
    South Puget Sound, WA
    If you look at the current Kodiak manual you will see a smoke baffle shelf in the cross-sectional view. They've added secondary burn tubes. Without the baffle I would expect that most of the heat from the stove is heading up the chimney.
  7. Sawnami

    Sawnami New Member

    Joined:
    Oct 10, 2006
    Messages:
    9
    Thanks for the information! I emailed the manufacturer again since I am armed with more information than I had the first time I contacted them.

    I don't know if the baffle should be metal or ceramic and how far it extends from the back to the front of the firebox. Hopefully I will get a reply from them.
  8. hardwood715

    hardwood715 Feeling the Heat

    Joined:
    Nov 30, 2005
    Messages:
    410
    Loc:
    Hyde Park, New York
    From looking at the size of those slots. as Craig posted it probably is a steel baffle. At least you have slots to set the plate in, Mine is tack welded to angle irons on both sides and rear of firebox. If you find it is steel, I'm sure you can have a replacement made at any metal fabricator or steel shop. My stove company happens to be a steel manufacuter who stopped making stoves in the 80s, that was suggested to me have ever I need to replace it, My firebox is 24 inches wide, 17 deep, So a good welder would be able to do it
  9. Sawnami

    Sawnami New Member

    Joined:
    Oct 10, 2006
    Messages:
    9
    Good information. Any idea on how much space should be between the front of the firebox and the baffle? The firebox is 22" deep X 27" wide X 16" tall and the flue hole is 6 1/2" in diameter. I've gotten more information in the last two days on this website than I have in the last year!
  10. hardwood715

    hardwood715 Feeling the Heat

    Joined:
    Nov 30, 2005
    Messages:
    410
    Loc:
    Hyde Park, New York
    Now reading your last post, maybe i was mistaken about my firebox size maybe 17 high and 20 deep X 24 wide, regardless, I am at work now but when I get home if anyone hasen't replied I can check to see how much space is from the front to where the baffle starts, I think it is only like 2 fire brick deep, but don't quote me on that, i can see for sure later. I know it isnt much for the reason i was told is the baffle deflects the smoke back towards the firebox, keeping it longer in there to burn off combustibles, I know mine takes a hell of alot of heat from flames and remains sturdy and turns white sometimes when the firebox is at max flame the smoke has to curl around it to leave via the top rear slide damper, I dont have a round flu, mine opens up length of stove identical to fireplace damper size, as mine is an insert.
  11. hardwood715

    hardwood715 Feeling the Heat

    Joined:
    Nov 30, 2005
    Messages:
    410
    Loc:
    Hyde Park, New York
    correction to last post, As mine is an insert i see so is yours, but i guess mine is manufactured differently with the slide damper compared to round flue opening, 1980 date, pre all the regs, ul listed but not epa !
  12. hardwood715

    hardwood715 Feeling the Heat

    Joined:
    Nov 30, 2005
    Messages:
    410
    Loc:
    Hyde Park, New York
    In my stove the baffle sits 9.5 inches from the front , approx 2 fire bricks deep. Hope that gives you an idea, and i was correct firebox is 24W X 17 Deep.
  13. Sawnami

    Sawnami New Member

    Joined:
    Oct 10, 2006
    Messages:
    9
    Thanks much hardwood715 for your persistance in getting some information to me. I think that this will help greatly. I'm going to start looking for some steel plate to make up a baffle with.
  14. BrotherBart

    BrotherBart Hearth.com LLC Mid-Atlantic Division Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    28,068
    Loc:
    Northern Virginia
    Do yourself a favor. Just take the measurements to a steel fab place and get one made. The local iron works made my last replacement, with three bends to match the old one, for $48. Nice heavy plate steel.
  15. webbie

    webbie Seasoned Moderator Staff Member

    Joined:
    Nov 17, 2005
    Messages:
    12,290
    Loc:
    Western Mass.
    Could even make out of 20 ga or so stainless steel with a few bends - it would probably hold up well.

    Yes, go to a local small time fab place
  16. begreen

    begreen Mooderator Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    47,124
    Loc:
    South Puget Sound, WA
    make it out of cardboard first. then make a temporary one out of 22 ga sheetmetal that is cut to match the template. try it out and tweek if necessary. then I'd go for plate steel.
  17. Sawnami

    Sawnami New Member

    Joined:
    Oct 10, 2006
    Messages:
    9
    Man, you guys are great!

    I already thought about making up a template so I can see what will fit through the front opening and sit in the brackets. Thanks for reinforcing my idea. I have several sources for metal around here so I guess I'll shop them and find the best price for the material.
  18. hardwood715

    hardwood715 Feeling the Heat

    Joined:
    Nov 30, 2005
    Messages:
    410
    Loc:
    Hyde Park, New York
    Your welcome, glad I could help, hope it goes well, as posted earlier, I agree most of your heat right now would be going up the chimney without the baffle, friend of mine has exact stove as mine, but has used it since the 80's mine sat for 20 years +, so its like fairly new just old, anyway - he has burned right thru his baffle, and I can tell the difference of heat output from mine and his, he just dosen't care, I try to get him into reading this forum, so he can get into the
    Safe Stove, Safe Home frame of mind!
  19. Sawnami

    Sawnami New Member

    Joined:
    Oct 10, 2006
    Messages:
    9
    Well, cut my template tonight and installed and removed multiple times to make sure that it installed easily. Also remembered to compensate for the actual thickness of the baffle. Going to check on prices and types of materials available tomorrow.
  20. hardwood715

    hardwood715 Feeling the Heat

    Joined:
    Nov 30, 2005
    Messages:
    410
    Loc:
    Hyde Park, New York
    I failed to mention that the front edge of my baffle is tapered, or rounded so to say, probably to help curve the smoke trail towards the damper
  21. Sawnami

    Sawnami New Member

    Joined:
    Oct 10, 2006
    Messages:
    9
    Thanks for the added information.
  22. begreen

    begreen Mooderator Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    47,124
    Loc:
    South Puget Sound, WA
    Is the curve convex or concave? Does it curve outward towards the front from the sides and the back of the stove or inward?
  23. hardwood715

    hardwood715 Feeling the Heat

    Joined:
    Nov 30, 2005
    Messages:
    410
    Loc:
    Hyde Park, New York
    It's curved inward, I should say rounded, kind of like a stair tread bullnose and the flames and exhaust lap around it , draft pulling towards rear of firebox above baffle. My stove exit is rear top slide damper opening approx 30 X 3 square inches
  24. hardwood715

    hardwood715 Feeling the Heat

    Joined:
    Nov 30, 2005
    Messages:
    410
    Loc:
    Hyde Park, New York
    the more I think about it, the more I think what you mean as outward- is what im trying to explain
    If my understanding of convex is right than it curves outward as in a rounded stair down towards the firebox, hence a rounded edge for smoke to follow up and back ____ ) > front of stove
  25. begreen

    begreen Mooderator Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    47,124
    Loc:
    South Puget Sound, WA
    Ah, ok, is the leading edge, facing the opening straight? Or does it have a slight bow towards the front of the stove? How thick is the plate?
