wood furnace modification

Post in 'The Inglenook' started by ckaudio1, Nov 29, 2009.

Thread Status:
Not open for further replies.
  1. ckaudio1

    ckaudio1
    Expand Collapse
    New Member

    Joined:
    Nov 29, 2009
    Messages:
    8
    Likes Received:
    0
    Loc:
    michigan

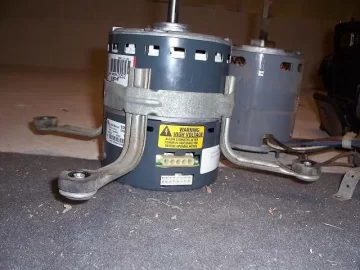

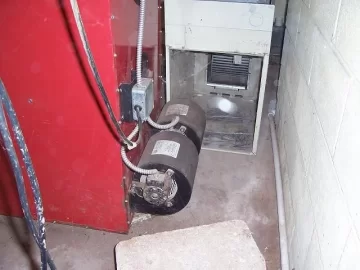

    I aquired a US Stove Co hot shot 1400 series with two seasons of use on it for a trade....... so nothing into it money wise, so why not make it better? I removed the twin factory blowers rated at 6.8 amp for the pair and installed a lennox ecm variable speed blower motor ( full running cfm and pulling only .40 amp now.) I

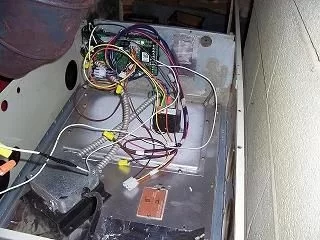

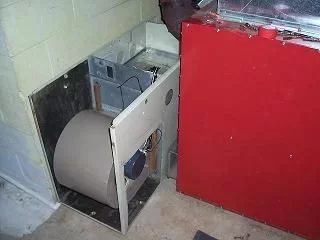

    'm not finished with the install yet as far as tying in the return air and do not have the humidifier pictured yet. For controls I'm using a lennox g61v 2-stage variable speed furnace control board and am using the cooling circuit. The fan limit is now converted to 24 volt and the humidifier powered by the 24 volt y/c coolong circuit. I'm running two stages of air speed with this setup and the ability to run low cfm constant fan.


    Attached Files:

    Helpful Sponsor Ads!





  2. ckaudio1

    ckaudio1
    Expand Collapse
    New Member

    Joined:
    Nov 29, 2009
    Messages:
    8
    Likes Received:
    0
    Loc:
    michigan
    A few more pictures


    Attached Files:

  3. ckaudio1

    ckaudio1
    Expand Collapse
    New Member

    Joined:
    Nov 29, 2009
    Messages:
    8
    Likes Received:
    0
    Loc:
    michigan
    last one for now


    Attached Files:

  4. ckaudio1

    ckaudio1
    Expand Collapse
    New Member

    Joined:
    Nov 29, 2009
    Messages:
    8
    Likes Received:
    0
    Loc:
    michigan

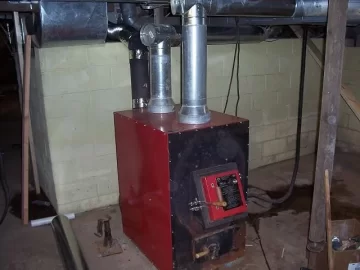

    This is what the stove looked like before I started the modifications. An actual plenum is on top now rather than just two round 7" pipes tying tino ductwork.


    Attached Files:

  5. Cowboy Billy

    Cowboy Billy
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 10, 2008
    Messages:
    885
    Likes Received:
    93
    Loc:
    Britton MI
    Awesome Mod CK!

    I have a Johnsons energy system furnace that looks just like it. I need to do the same thing. I have been complaining for the last two years how much those little inefficient blowers raises my electric bill.

    Billy

    Collapse Signature Expand Signature
  6. ckaudio1

    ckaudio1
    Expand Collapse
    New Member

    Joined:
    Nov 29, 2009
    Messages:
    8
    Likes Received:
    0
    Loc:
    michigan
    Thanks Billy, I'll post some more pics as the progress continues plus some more inbetween pics that I left out. One nice thing about the new setup is that it is whisper quiet while running unlike the older twin ac blowers.
