Woodbox accessory for JD cart

Post in 'The Gear' started by jotul8e2, Dec 18, 2011.

Thread Status:
Not open for further replies.
  1. jotul8e2

    jotul8e2
    Expand Collapse
    Feeling the Heat

    Joined:
    Feb 2, 2008
    Messages:
    413
    Likes Received:
    83
    Loc:
    Ozarks
    I wanted a weather-tight woodbox for my John Deer cart so that I could tow a load up onto my deck, unhitch, and be done until time for another load.

    The first problem encountered was size and mass - it was obvious that at 4'X4'X~2' it would be too heavy to lift - so being too cheap to buy hardware, I made interlocking sliding half dovetail joints at the corner. This allows it to come apart into five more manageable pieces, which also eases summer storage issues.

    Here is the back in place (it opens from the side, so the "back" is the right side in this photo), and the front panel is ready to slide in:

    [​IMG]

    Here one side is installed and the other is ready to slide into place. The sliding dovetails are waxed to easy assembly. Note the angled top for water runoff.

    [​IMG]

    Now the lid goes on. The lid overlaps all four side panels to make it weather-tight. Note the hinge supports are not yet locked into their guides.

    [​IMG]

    Here is the entire unit, from the back, with only the top bar not yet locked into the bracket at the upper right.

    [​IMG]

    The final issue was the support - it has to allow closure of the lid with one hand (the other arm is full of wood, naturally), and not be easily dislodged in case of accident and bring the lid down on my head, hand, whatever. The lid is surprisingly heavy - a 1/2 sheet of 3/8th" plywood plus framing. The support sits in a V-shaped enclosed bracket. There is a channel cut into the bottom of the V so water can drain. Note that it cannot be knocked to either side or backwards, and only with great difficulty could it come forward.

    [​IMG]

    By lifting the lid, the hinged support comes out of the bracket, falls vertically, and allows the lid to close using one hand. For transport I have a simple shoe string loop at the back corner to hold the support (not shown).

    [​IMG]

    I can think of many improvements and simplifications, but they all cost money. I thought someone might be interested.

    Collapse Signature Expand Signature

    Helpful Sponsor Ads!





  2. BrotherBart

    BrotherBart
    Expand Collapse
    Hearth.com LLC Mid-Atlantic Division
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    32,439
    Likes Received:
    9,638
    Loc:
    Northern Virginia
    That is slick. Good work.

    Collapse Signature Expand Signature
  3. Piston

    Piston
    Expand Collapse
    Member

    Joined:
    Dec 4, 2008
    Messages:
    70
    Likes Received:
    19
    Loc:
    Upton, MA
    Nice Job! I like how you planned for ease of assembly/dis-assembly for storage and handling.

    Collapse Signature Expand Signature
  4. firefighterjake

    firefighterjake
    Expand Collapse
    Minister of Fire

    Joined:
    Jul 22, 2008
    Messages:
    17,116
    Likes Received:
    3,569
    Loc:
    Unity/Bangor, Maine
    Very clever . . . a mobile woodbox . . . I like it.

    Collapse Signature Expand Signature
  5. jotul8e2

    jotul8e2
    Expand Collapse
    Feeling the Heat

    Joined:
    Feb 2, 2008
    Messages:
    413
    Likes Received:
    83
    Loc:
    Ozarks
    I should have mentioned that I live on 50 acres of trees and my procedure is to leave wood split and stacked near where it is cut to be picked up as needed. Also, a key design element was a requirement that no tools should be required for assembly/disassembly.

    Collapse Signature Expand Signature
  6. Flatbedford

    Flatbedford
    Expand Collapse
    Minister of Fire

    Joined:
    Mar 17, 2009
    Messages:
    5,257
    Likes Received:
    1,257
    Loc:
    Croton-on-Hudson, suburbs of NYC
    That is cool. Any issues with unhitching when it is loaded? I've always thought a four wheeled wagon would be better for wood storage.

    Collapse Signature Expand Signature
  7. jotul8e2

    jotul8e2
    Expand Collapse
    Feeling the Heat

    Joined:
    Feb 2, 2008
    Messages:
    413
    Likes Received:
    83
    Loc:
    Ozarks
    A four wheeled wagon would certainly be better. But I do not have one. I posted this in case the concept appealed to anyone - it could be adapted to a great many wagons. And undoubtedly improved upon.

    The John Deere cart is designed to be moved with muscle power alone even when loaded, so it has only a small forward weight bias - less than 35 lbs. I would guess on the tongue with the box and a full load. Which means I have to remember to unload from the rear of the cart (or the left side of the box) so it does not tip over on me.

    We had 2" of rain overnight and everything inside is dry. Hooray!

    Collapse Signature Expand Signature
  8. Thistle

    Thistle
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 16, 2010
    Messages:
    4,206
    Likes Received:
    2,234
    Loc:
    Central IA
    That's brilliant. Well done.

    Collapse Signature Expand Signature
  9. WoodNStuff

    WoodNStuff
    Expand Collapse
    Minister of Fire

    Joined:
    Oct 12, 2011
    Messages:
    513
    Likes Received:
    1
    Loc:
    South Central WI
    Great concept. The dovetail corners are a great idea. Strong and tool free!! I'd love to see some pics of it loaded with splits and a series of pics showing how it's used.

    Collapse Signature Expand Signature
  10. jotul8e2

    jotul8e2
    Expand Collapse
    Feeling the Heat

    Joined:
    Feb 2, 2008
    Messages:
    413
    Likes Received:
    83
    Loc:
    Ozarks

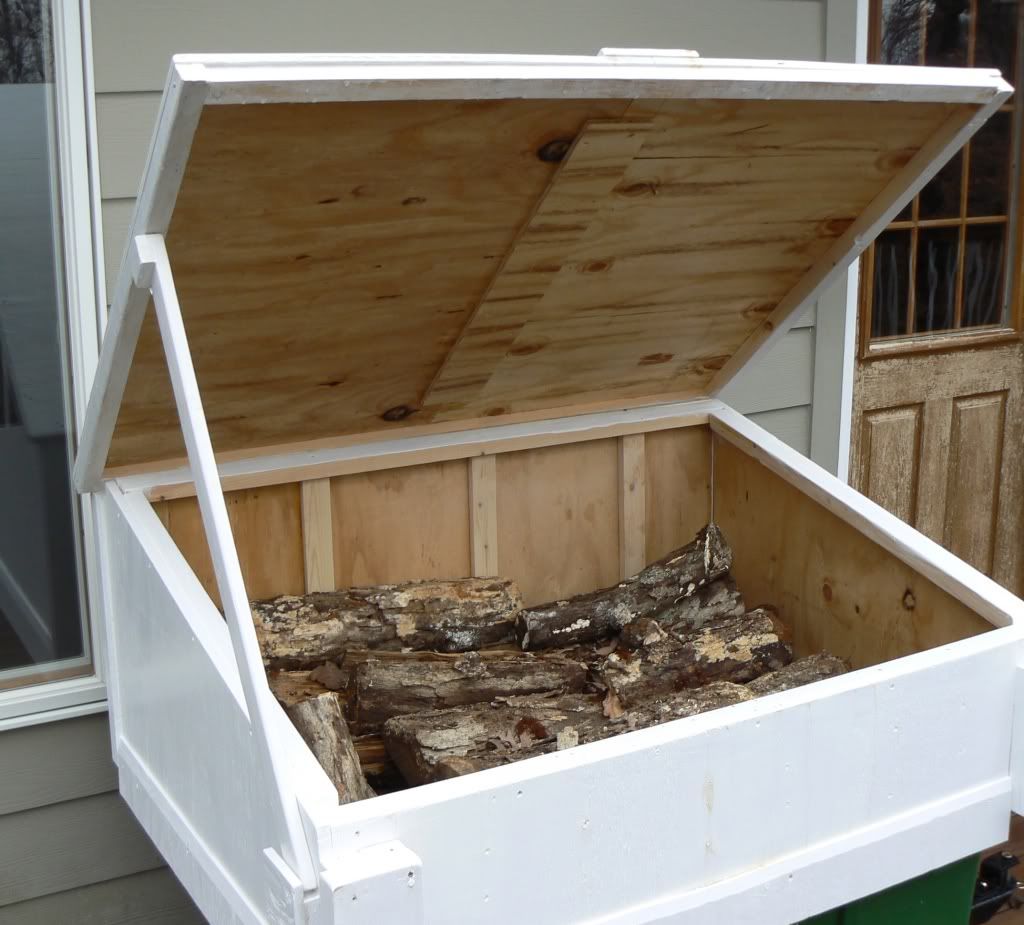

    OK. Here is a partial load with the lid open:

    [​IMG]

    Here we are "at home". I had the luxury of designing and building the deck myself, so I included the 4'6" wide ramp just for this purpose. The deck is also wide enough to allow me to pull the trailer up, park it, unhitch, and turn the old John Deere 140 around to come back down.

    [​IMG]

    The height of the front of the box was determined by my own arm's reach into the back corners.

    Collapse Signature Expand Signature
  11. WoodNStuff

    WoodNStuff
    Expand Collapse
    Minister of Fire

    Joined:
    Oct 12, 2011
    Messages:
    513
    Likes Received:
    1
    Loc:
    South Central WI
    Jotul8e2, these pics really put it all into perspective. Very nice! Very functional! And that ramp up to the deck, that's some real advance planning.

    Collapse Signature Expand Signature
  12. seeyal8r

    seeyal8r
    Expand Collapse
    Feeling the Heat

    Joined:
    Jan 20, 2011
    Messages:
    273
    Likes Received:
    8
    Loc:
    North Central Oklahoma
    I can think of a million applications. Awesome Job. I need to build one of these for my little trailer.

    Collapse Signature Expand Signature
  13. Flatbedford

    Flatbedford
    Expand Collapse
    Minister of Fire

    Joined:
    Mar 17, 2009
    Messages:
    5,257
    Likes Received:
    1,257
    Loc:
    Croton-on-Hudson, suburbs of NYC
    That is an great system!

    Collapse Signature Expand Signature
  14. Pallet Pete

    Pallet Pete
    Expand Collapse
    Guest

    You have inspired me way to go man now my wife can blame you for my next project :lol:

    Merry Christmas
    Pete

  15. gzecc

    gzecc
    Expand Collapse
    Minister of Fire

    Joined:
    Sep 24, 2008
    Messages:
    4,394
    Likes Received:
    855
    Loc:
    NNJ
    Similar idea, not as pretty. Scrounged all the parts for around $100. Top is a hinged chain link fence gate. The best part is, I can pull up to it and lift 3 point into the tongue and be off. The cover is an old inflatable pool liner.


    Attached Files:

    Collapse Signature Expand Signature
  16. snowleopard

    snowleopard
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 9, 2009
    Messages:
    1,495
    Likes Received:
    2
    Two Red-Green awards in one day on this forum! This is extremely slick.

    However, I could not help noticing that someone left the chalk-line chalk bottle out of alignment on your workbench shelves. I thought you'd want to know. :)

    Collapse Signature Expand Signature
  17. jotul8e2

    jotul8e2
    Expand Collapse
    Feeling the Heat

    Joined:
    Feb 2, 2008
    Messages:
    413
    Likes Received:
    83
    Loc:
    Ozarks
    I'm with you there. My box came in at a bit under $30, mainly because I didn't have as much left over XPX as I thought. Some of the pieces came from an old cedar deck. The lid hinges are off an old door and I know I've had them not less than 20 years. What is the point of saving all that old stuff if you never use it?

    As for the chalk bottle being off line, that is Titebond glue - the only thing that holds my world together.

    Collapse Signature Expand Signature
  18. amellefson

    amellefson
    Expand Collapse
    Member

    Joined:
    Jan 3, 2011
    Messages:
    122
    Likes Received:
    2
    Loc:
    Southern WI
    White! It's got to be yellow to match th Deere. Maybe it's white to avoid copyright infringement? :)

    Collapse Signature Expand Signature
  19. jotul8e2

    jotul8e2
    Expand Collapse
    Feeling the Heat

    Joined:
    Feb 2, 2008
    Messages:
    413
    Likes Received:
    83
    Loc:
    Ozarks
    Or maybe because I had a 1/2 gal. can of white exterior latex on hand?

    JD yellow would be cool, though.

    Collapse Signature Expand Signature
  20. amellefson

    amellefson
    Expand Collapse
    Member

    Joined:
    Jan 3, 2011
    Messages:
    122
    Likes Received:
    2
    Loc:
    Southern WI
    I figured that. I would have done the exact same thing.
