Zones for Pros

Post in 'The Boiler Room - Wood Boilers and Furnaces' started by ewdudley, Feb 14, 2012.

  1. ewdudley

    ewdudley
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 17, 2009
    Messages:
    1,975
    Likes Received:
    308
    Loc:
    Cayuga County NY

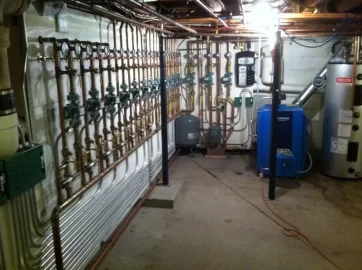

    Thought you all might enjoy a photo of nicely zoned install. The work of a true professional is indeed inspiring.

    The mix temperature for each zone is individually controlled, and even if one pump fails at least the rest of the house will remain comfortable until the repairman can deal with the emergency.


    Attached Files:

    Helpful Sponsor Ads!





  2. Morgan

    Morgan
    Expand Collapse
    Member

    Joined:
    Apr 24, 2010
    Messages:
    111
    Likes Received:
    16
    Loc:
    PEI, Canada
    Very nice craftsmanship!

  3. infinitymike

    infinitymike
    Expand Collapse
    Minister of Fire

    Joined:
    Aug 23, 2011
    Messages:
    1,807
    Likes Received:
    555
    Loc:
    Long Island, NY
    Beautiful work.
    How big is the house?
    Why so many zones.
    Did you do the install?
    Do you have any other pics?

    Collapse Signature Expand Signature
  4. ewdudley

    ewdudley
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 17, 2009
    Messages:
    1,975
    Likes Received:
    308
    Loc:
    Cayuga County NY
    Workmanship is pretty nice.
    Huge from what I gather.
    I believe it's called "milking the job".
    Not hardly.
    No, this one was lifted from HeatingHelp, where the pros hang out.

  5. Pat53

    Pat53
    Expand Collapse
    Minister of Fire

    Joined:
    Aug 21, 2010
    Messages:
    604
    Likes Received:
    54
    Loc:
    UP Mich
    Must have a monsterous electric bill !!

    Collapse Signature Expand Signature
  6. bigburner

    bigburner
    Expand Collapse
    Feeling the Heat

    Joined:
    Aug 28, 2010
    Messages:
    438
    Likes Received:
    4
    That is hard to do even from scratch! I done system or two with that many pumps, one of them wrapped around three sides of the room. House was 8,000 SQ ft. My guess is the low temp zones in the fore ground are piped to a pex manifold some where else. That helps keep the boiler room nice and clean. I am sure it works fine but with a lot of zones calling, with a P/S that first [in picture] zones is going to see some pretty cool water. Before some one else points it out, the HX on the floor is not in the preferred vertical position. I think that my electric bill goes up about a hundred bucks a month during the heating season. I think I currently have 19 pumps on my system. about half cycle on demand.

  7. in hot water

    in hot water
    Expand Collapse
    New Member

    Joined:
    Jul 31, 2008
    Messages:
    895
    Likes Received:
    2
    Loc:
    SW Missouri

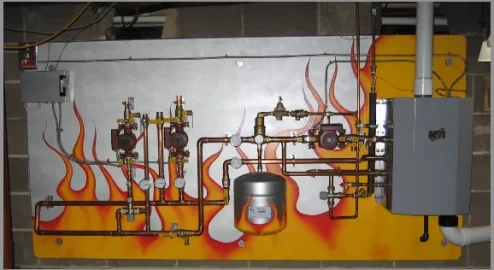

    On the wild side! a body shop owners system.


    Attached Files:

  8. kabbott

    kabbott
    Expand Collapse
    Member

    Joined:
    Nov 19, 2007
    Messages:
    384
    Likes Received:
    0
    Loc:
    Hampstead,Maryland
    Love it, wish I could airbrush...
