EKO 40 Fan Wiring?

[Bricks]

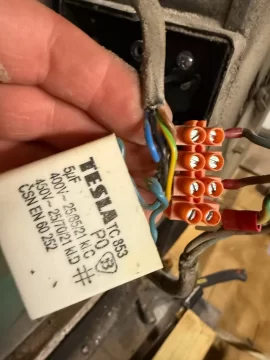

I am really feeling stupid removed my blower fan for cleaning on my EKPO 40 did not get back to reinstalling the blower for a couple of weeks. Took pictures of fan side of wring with capacitor not a problem but for the luv of me cannot remember which connections power in are connected too there are 4 lugs , any one know?

Thank You



[Bricks]

Anyone or a way to figure which lugs to use so I don`t short something out?



[Bricks]

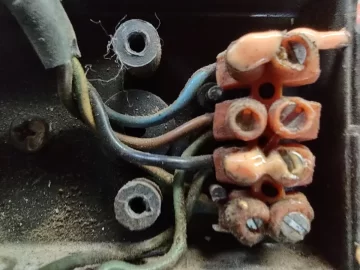

As many electricians I have talked to most don`t have a clue the closest was one where power goes to the top blue wire and bottom neutral which only gives me a low-speed blower thought I would attach a pic see if that helps. These wires are the fan side.



[ihookem1]

Does anyone have a wiring diagram for an EKO 25? The picture up above has different color codes. I have had the EKO for 14 seasons after i'm done this spring . My wires fell off and I am lost . I wire it up the way I swear was the right way, but the fan goes backward. I rewire and that works fine. I wire it another way and blow a fuse in the controller . Now I have that fixed,,, however, I cant get the fan to shut off. However again sometimes it works properly. Does anyone have a picture of their circuit box, capacitor wires and fan?



[DSSA]

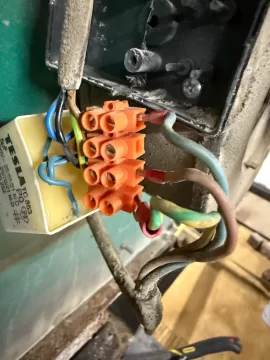

I realize this is a really old thread and Im sure youve figured it out by now, but here is the wiring on the 2008 Eko 40 I just picked up at the fan:
