Adding open indictator light to my zone valves

Post in 'The Boiler Room - Wood Boilers and Furnaces' started by MrEd, Nov 18, 2010.

  1. MrEd

    MrEd New Member

    Joined:
    May 9, 2008
    Messages:
    426
    Loc:
    Rural New England
    Hello, I have 6 zone valves in my cellar, near the oil boiler, and my tarm is 50 feet away in another room.

    I'd like to add little (red?) indicator lights so that I can visually tell if a zone valve is open or not. If possible I would add on right near each zone valve, but also run pairs of wires to a "status panel" near my tarm so that when I am tending the fire, I can tell which and how many zones are calling for heat.

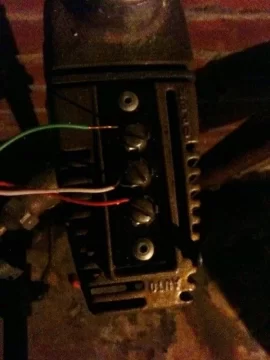

    My zone valves are pretty standard, picture attached...what is the simplest type of bulb I could put across which wires to see the on/off status?

    Attached Files:

    Helpful Sponsor Ads!





  2. sparke

    sparke Minister of Fire

    Joined:
    Jul 6, 2006
    Messages:
    565
    Loc:
    Maine
    You can tell by the control wiring it is 24V. I would check local electrical supply store (for contractors) and see if they have or can order 24V LED's with pigtails (leads) or any indicator lamp for that matter but LED's wont burn out. Then I would just wire them to the two contacts that are energized when the zone valve is open... either use a meter or look for an electrical diagram on the valve.
  3. MrEd

    MrEd New Member

    Joined:
    May 9, 2008
    Messages:
    426
    Loc:
    Rural New England
    yup, its 24V AC, my mistake, was using my electrical tester set on DC and wasn't getting any readings that made sense, now I see this will be a relatively simple and inexpensive modification to make if I find the right LED's at radio shack...thanks everyone.
  4. ISeeDeadBTUs

    ISeeDeadBTUs Guest

    I can't remember the brand of my relay box, but it has a light that indicates which of 6 zones are 'on'.
  5. willworkforwood

    willworkforwood Feeling the Heat

    Joined:
    Jan 20, 2009
    Messages:
    459
    Loc:
    Central Ma
    You might want to consider using temp sensors instead of just on/off switches. A number of folks on the forum have done lots of slick things, and had good results with them (just search on sensors). I haven't used them myself because everything is compact with my boilers, and so all I need are the inexpensive "frothing" thermometers attached to the zone pipes (along with a bunch of others). I can tell you for certain that you can learn lots of things about your system by observing the various temps. For me this has resulted in being able to make helpful changes, solely based on studying those temps.
  6. Nofossil

    Nofossil Moderator Emeritus

    Joined:
    Oct 4, 2007
    Messages:
    3,398
    Loc:
    Addison County, Vermont
    You can just take a standard LED and a resistor (about 3K ohm should be about right) and connect them in series across the motor terminals.
  7. RobC

    RobC Minister of Fire

    Joined:
    Jul 28, 2009
    Messages:
    531
    Loc:
    Foxboro MA
  8. Jersey Bill

    Jersey Bill Member

    Joined:
    Jan 21, 2008
    Messages:
    132
    Loc:
    Central NJ
    I think that the indicators really help a lot when you are trying to understans what is going on in the system. In your case they will only tell that your system is calling for the zone valve.
    When I do a custom panel, I get zone valves with an end switch. I use the end switch to light another LED to show the valva actuated. In the control panel I line up the lights so you can see if the system is calling, AND the verification that the zone valve operated, or maybe its stuck on.

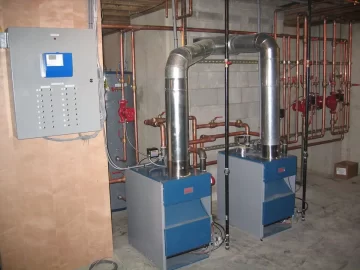

    Here is a penel that I did with 16 heating zones, 3 loop temps, and a Tekmar control. I also built the air conditioning control into the panel as well.

    Attached Files:
