Anybody use a Diy bed liner kit for your truck ?

Post in 'DIY and General non-hearth advice' started by Pallet Pete, Sep 21, 2012.

  1. Pallet Pete

    Pallet Pete Guest

    I have done so much research into diy bedliners that I have discovered they all seem good if you prep right. I would however like others to weigh in with there experiences on this topic. Duplicolor makes two bed liners one cheap low end and the other higher end with kevlar for strength. My hitch on my restoration was so rusty that I ground it down used rust converter and then rust encapsulator paint then top coated with three layers of Duplicolor Bed Armor with Kevlar. It sure seems to be strong and my hitch looks like new too ! The Ranger is going to get the floors coated with bed coating in place of the carpet then have deep rubber mats where the feet go just cuz we live in Michigan land of salt ,snow and of course spring and fall mud. I am sick of cleaning the carpet's ;lol. The truck bed is going to get bed lined s well but I would like to know what you guys used and how it worked out before I go farther as they all seem to be right in the same price range .


    Duplicolor Bed Armor 100 usd
    Duplicolor Bed Coating 59 usd

    Rustoleum Professional Truck Bed Coating 100 usd
    Rustoleum Truck Bed Coating 59 usd

    Gator Bed Coating 119 usd

    Herculiner 89 usd

    Bondo Bed Liner Kit 115 usd

    Pete

    Helpful Sponsor Ads!





  2. jeepmedic

    jeepmedic Burning Hunk

    Joined:
    Mar 7, 2012
    Messages:
    111
    Loc:
    Cashton, WI
    I did herculiner in the inside of my old Jeep. We did all the prep work, and it has not held up well. I cant imagine it working very well for a truck bed that actually gets used like a truck.

    Some other jeep guys I know have used Raptorliner with excellent success. I personally have not used it.

    I used the cheap spray can Duplicolor liner on the the kick panels on my 4 door jeep, and it held up well, but I dont think it was good enough for doing a truck bed.

    Honestly, we had our Ram truck Linex'd professionally and that stuff is indestructible. Concrete, dozens of cords of wood, gravel...and not even a scratch in it. The bed even has dents in it, but the Linex has held up awesome over the past 4 years we have had it. Only downside is its about $400-500 bucks for a truck bed :(
  3. festerw

    festerw Burning Hunk

    Joined:
    Nov 16, 2009
    Messages:
    184
    Loc:
    Cambridge Springs, PA
  4. MasterMech

    MasterMech Guest

    Closer to $600 here and LineX isn't sold around here. Rhino and Ultimate are big here. Have had both, prefer the Rhino, held up better. The Ultimate in both of my current trucks will peel from scrapes with mowers and other machinery. Stands up well to concrete, wood, mulch, etc. but I'm real careful with a shovel in the bed.

    I use the Rust Oleum rattle can bed liner and once cured, it works pretty good for light duty stuff like kick panels and floors. Use it in tool boxes and turned the lid of my parts washer into a usable table surface with it. Would recommend you seriously consider a professional spray on for daily use in a truck bed.
  5. Shaun

    Shaun Member

    Joined:
    Dec 30, 2005
    Messages:
    38
    Loc:
    Wolcott, CT
    I used the Herculiner in my Silverado bed. From everything I read, the prep was the most important part. So I took my time and scuffed the whole bed. The Herculiner went on very easily and dried. Just over 2 years old, and it still looks like it did when I put it on. And it has taken the abuse. The most abuse it has taken to date is when I hauled over 25 tons of 3/8" crushed stone. All that loading and unloading of the stone and there isn't a chip in the liner.
  6. Eatonpcat

    Eatonpcat Minister of Fire

    Joined:
    Jul 24, 2011
    Messages:
    2,070
    Loc:
    Eaton Township, Ohio
    That's a lot of shoveling Shaun!:cool:
  7. bcfarms

    bcfarms New Member

    Joined:
    Sep 27, 2012
    Messages:
    13
    Loc:
    Chaplin, CT
    I recommend the SEM Rock-it liner kit. It is a spray in kit and comes with everything you need minus an air compressor. I used it on my mason dump and it has held up really well. I routinely get 3 tons of stone loaded in it at the quarry and the only places that there is any chipping is where I have hit it with a sharp edge of metal going to the scrap yard or where I missed prepping the bed in a couple of spots.

    I found that the kit didn't cover quite as much as I was hoping but I sprayed it on pretty thick. I highly recommend masking off the entire truck when you go to spray. I didn't and getting the overspray off was extremely difficult.
  8. bcfarms

    bcfarms New Member

    Joined:
    Sep 27, 2012
    Messages:
    13
    Loc:
    Chaplin, CT

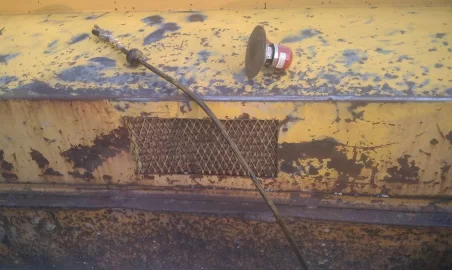

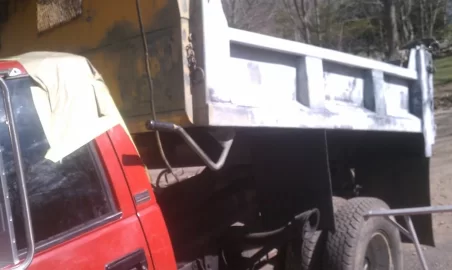

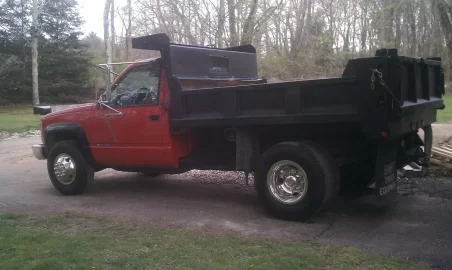

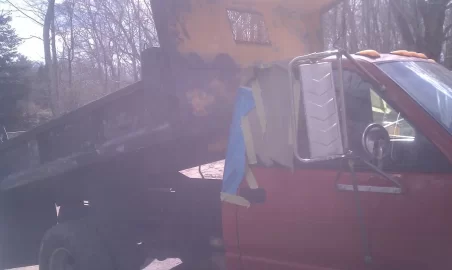

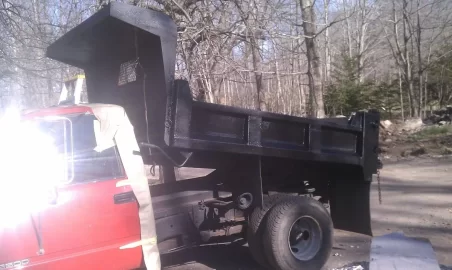

    IMAG1842.jpg IMAG1843.jpg IMAG1845.jpg IMAG1874.jpg IMAG1876.jpg
