Before the Osburn

wg_bent Posted By wg_bent, Nov 22, 2005 at 3:40 PM

Thread Status:
Not open for further replies.
  1. wg_bent

    wg_bent
    Minister of Fire

    Nov 19, 2005
    2,248
    6
    Loc:
    Poughkeepsie, NY

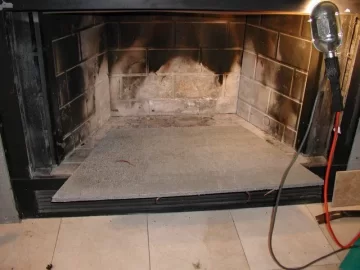

    Here's a pic of my Majestic 42" fireplace before the new tile, hearth and Osburn 1800i


    Attached Files:

    clemsonfor and Dairyman like this.
  2. wg_bent

    wg_bent
    Minister of Fire

    Nov 19, 2005
    2,248
    6
    Loc:
    Poughkeepsie, NY
    First - code specifies that you must put in a chimney liner in a 0-clearance fireplace chimney since it is not rated for 2100 degrees. I purchased a forever-flex liner.
    Second - The Majestic chimney is WAY oversize in order to get either the Osburn or the Napoleon to draft properly.

    You did get me thinking a bit though about the floor of the Majestic. I looked at it more carefully after seeing your post and decided that it was somewhat damaged from heat, and your right about the sheet metal floor under the fireproof material. So, here's my solution. I decided to distribute the weight of the Osburn (315 lbs) using a layer of 1/2 inch cement board (see the cement board cut slightly undersize to fit) . Then under the floor I'll add two supports made out of peices of cement board or possibly some steel of some sort. I haven't worked that out yet. The important part is to not impeed the air flow in the majestic. As I continue to install I'll add pictures of the install procedure here. Thanks for the thoughts. I'm sure my install will be better because of your point.

    Warren


    Attached Files:

  3. wg_bent

    wg_bent
    Minister of Fire

    Nov 19, 2005
    2,248
    6
    Loc:
    Poughkeepsie, NY

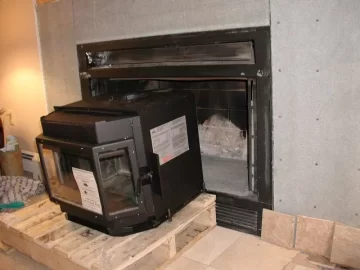

    Here's the Osburn almost ready to go in.

    The effort to get that beast up 2 steps into my home was really serious. And this ain't even close to the heaviest stove out there!!!


    Attached Files:

  4. wg_bent

    wg_bent
    Minister of Fire

    Nov 19, 2005
    2,248
    6
    Loc:
    Poughkeepsie, NY
    I'm trying to follow code to the best of my ability. Now, having said that, when I was in high school my father heated with a Reginald wood stove for years (then switched to coal). It was basically a Reginald 602 copy (the classic small box stove). Vermont castings Aspen is another version of that design. He vented through a throat plate into a masonary chimney, and it worked fine.

    Tomorrow I'll probably get the liner and the stove installed. The batteries in the digital camera are a chargin now!! :)

    I'll post more tomorrow.

    Warren

  5. wg_bent

    wg_bent
    Minister of Fire

    Nov 19, 2005
    2,248
    6
    Loc:
    Poughkeepsie, NY

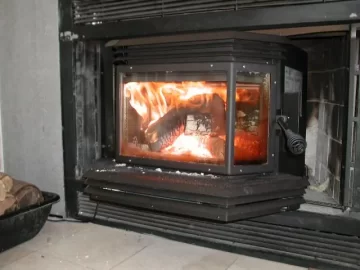

    Here's the my Osburn installed. Don't have the surround yet, so that's why it not in. so far so good, I do think I have to get the nack of firing it though. I'll keep you all posted. It sure kick out a lot of heat!


    Attached Files:

  6. wg_bent

    wg_bent
    Minister of Fire

    Nov 19, 2005
    2,248
    6
    Loc:
    Poughkeepsie, NY
    Yes, it was quite hard. The Majestic opening is about 21.75" and the stove is 19.75. The thing that saved me is the Majestic gets bigger inside. Still hard to maneuver. What I did is attach the offset adapter to the flex liner adapter. The liner is quite springy, so I took advantage of that. I used a hydrolic jack to spring the liner up into the Majestic chimney, an pushed the stove under it. The lowered the jack. Then pushed the stoves opening under the offset adapter input, and the pipe just popped into place. (The Osburn flue output is female so this worked great) I then sealed around the pipe with some refractory cement.

    Warren

  7. wg_bent

    wg_bent
    Minister of Fire

    Nov 19, 2005
    2,248
    6
    Loc:
    Poughkeepsie, NY
    O.K. It's been a long project but it's finally finished (minus the darned gold trim on the door...Hey Obadiah's how about that trim peice!!!!????)

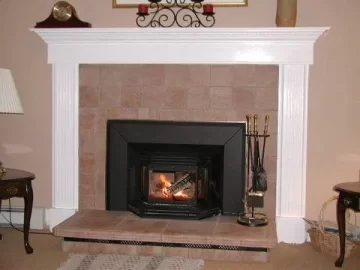

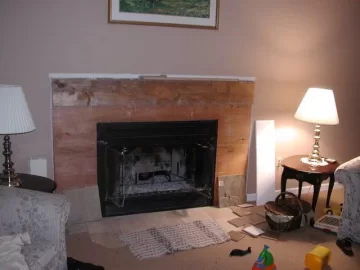

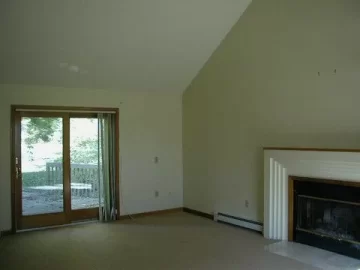

    So here's the official before and after.

    Almost hard to believe it's the same room eh?


    Attached Files:

  8. Corie

    Corie
    Minister of Fire

    Nov 18, 2005
    2,430
    1
    Loc:
    Halifax, VA
    Man, that came out really nice. I love seeing all these finished installs coming out fantastic!

  9. elkimmeg

    elkimmeg
    Guest

    Nice Job I know its too late but 1/2 " copper pipe under the stove to act as rollers. They would have helped you fit and measure things for trial and error approach. It would alow you to roll it in and out. I would leave them in place and place a couple drywall screws in
    to prevent it rolling out. Remove your trim suround the screws and dis connect the flue for cleaning. You then could roll it out and roll it back in place

  10. crow

    crow
    New Member

    Dec 4, 2005
    88
    0
    Loc:
    Ohio
    Nice install !
    Very cool to see the pics in progress!

  11. Shane

    Shane
    Minister of Fire

    Nov 21, 2005
    1,831
    3
    Loc:
    Casper Wyoming
    I don't remember this thread. Strange. One question Warren, did you check with the ZC mfg and make sure it is ok to block the convection vents on that fireplace? Alot of times the air circulating through the convection chamber is what partially cools the unit.

  12. wg_bent

    wg_bent
    Minister of Fire

    Nov 19, 2005
    2,248
    6
    Loc:
    Poughkeepsie, NY
    you can't tell from the picture, but it is vented. Look at the bottom of the new hearth. See the black line across just under the horizontal hearth surface? That's the lower air intake and is actually larger in square inches than the lower air vent of the Majestic. The upper is on the slant of the surround.

    It took a lot of thinking to get that all right.

  13. Shane

    Shane
    Minister of Fire

    Nov 21, 2005
    1,831
    3
    Loc:
    Casper Wyoming
    Ok I see now. That's a good idea and looks great.

  14. MountainStoveGuy

    MountainStoveGuy
    Minister of Fire

    Jan 23, 2006
    3,654
    2
    Loc:
    Boulder County
    Thats a fantastic install job. Every thing is well balaced, looks like it should be in a catalog!
