Cumberland Castle Auger Motor Replacement?

[Don2222]

Hello

Has anyone replaced one of these bad boys? How many RPMs is it?
http://www.acehardware.com/product/index.jsp?productId=12650509&affcode=507364&cid=PPC:507364&searchdef=2353607&k_clickid=0c412b7a-54a3-49c8-3a54-000043b44cb0&002=2353607&006=21084901741&007=Search&008=&009=b&012=castle pellet stove&021=29517681471
Linix Part # YN70-15-8-01
The YN means reversible and the 70 stands for 70 Millimeter
1250 is the speed but not sure if that is RPM?
http://www.eastsources.com/motor/70mm.htm

Why do they have 3 wires one for CCW and one for CW rotation?

Can a standard gearbox auger motor be retrofitted?

ORDERING REPLACEMENT PARTS for Cumberland Stoves from Ardisam
Parts can be obtained from the store where the stove was
purchased or direct from the factory. To order from the
factory- call, write or e-mail to:
Ardisam, Inc.
1160 Eighth Avenue,
Cumberland, Wisconsin 54829
1-800-345-6007
E-mail: [email protected]

Page 23 in manual - part # for auger motor
Part 31 part # 720107 Description - gearmotor

Castle pellet stove manual
http://www.pelletstovecleaning.com/...llet-stove-owners-and-maintenance-manual.html

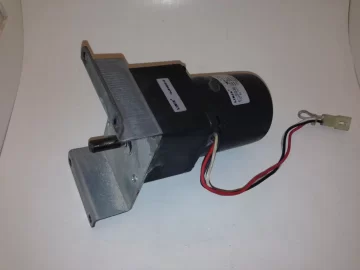

See pics below.



[SmokeyTheBear]

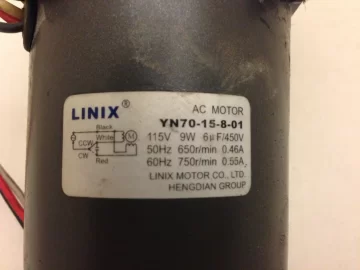

Don look at the information on the motor plate. White and black = CCW Red and black = CW on 60~ it is a 750RPM motor



[Don2222]

Don look at the information on the motor plate. White and black = CCW Red and black = CW on 60~ it is a 750RPM motor

Thanks Smokey
Well, I guess a standard 1 RPM gearbox motor would not work without changing the control panel and auger and rewiring the stove! LOL



[Don2222]

Hello

I have to get the part from the factory. They ship UPS and it takes 4 Biz days!



[SmokeyTheBear]

Hello

I have to get the part from the factory. They ship UPS and it takes 4 Biz days!

Does that motor fasten on to a reduction gear system?



[smwilliamson]

Dealing with this right now on a red Hudson River Saratoga. The red saratoga stove used this motor too, then went to a standard motor the next year when the black model came out. The motor was mounted to a gear box #70JB360G10
I cannot get the motor to run so figuring out the ratio on the gear box is sorta a guess. Motor has 360 written on it and gear box says 360 in the middle or serial. Manaufacturer page is: http://www.linixmotor.com/6-2-Speed-Reducer.html
so Im guessing if the motor is 750 rpm into a 1:360 gearbox...thats about 2 rpm. Gonna mount a 2 RPM Gleason Avery and see if I can get it to work with some creative rewiring.



[Don2222]

Dealing with this right now on a red Hudson River Saratoga. The red saratoga stove used this motor too, then went to a standard motor the next year when the black model came out. The motor was mounted to a gear box #70JB360G10
I cannot get the motor to run so figuring out the ratio on the gear box is sorta a guess. Motor has 360 written on it and gear box says 360 in the middle or serial. Manaufacturer page is: http://www.linixmotor.com/6-2-Speed-Reducer.html
so Im guessing if the motor is 750 rpm into a 1:360 gearbox...thats about 2 rpm. Gonna mount a 2 RPM Gleason Avery and see if I can get it to work with some creative rewiring.

Dealing with this right now on a red Hudson River Saratoga. The red saratoga stove used this motor too, then went to a standard motor the next year when the black model came out. The motor was mounted to a gear box #70JB360G10
I cannot get the motor to run so figuring out the ratio on the gear box is sorta a guess. Motor has 360 written on it and gear box says 360 in the middle or serial. Manaufacturer page is: http://www.linixmotor.com/6-2-Speed-Reducer.html
so Im guessing if the motor is 750 rpm into a 1:360 gearbox...thats about 2 rpm. Gonna mount a 2 RPM Gleason Avery and see if I can get it to work with some creative rewiring.

Will a standard gearbox motor fit and bolt in? Most of those motors are either 650 or 750 RPM down to 2 RPM.
