Fired up Pellet Stove last night & Auger was Dead as a Door Nail !!!! Yellow 4 Troubleshoot Light no

Post in 'The Pellet Mill - Pellet and Multifuel Stoves' started by Don2222, Oct 6, 2011.

Thread Status:
Not open for further replies.
  1. Don2222

    Don2222 Minister of Fire

    Joined:
    Feb 1, 2010
    Messages:
    7,146
    Loc:
    Salem NH
    Hello

    The maintenance light came on with a Yellow 4 troubleshoot code!!
    Tried running the stove manually and when the red auger light came on the auger did not move!!! Ah ha !!

    In this case the nice USER troubleshooting chart in the owner's manual was no help!!
    The pellets would just not feed one bit and I had dumped 2 bags of pellets into the hopper!!

    So, I got the wiring diagram and tested 2 snap switches and the Flow Switch.

    First I pulled the AC plug from the wall outlet.
    Took off the back screen buy loosening the bolts and pulling up and out.

    The snap switches are a easy. See pic
    They open if there is an over temperature condition that would melt the plastic parts in the stove.
    Just pull the clips off and put the meter leads on. Then see if the meter reads Zero ohms!

    Both of mine read Zero (Good) but when I put the wires back on I made sure that they made good contact!!!

    Then I remove the 2 bolts and pulled out the Flow switch after disconnecting the 2 wires and plastic tube.
    The flow switch measure air flow in the exhaust to assure the exhaust blower is working properly.


    I put the meter on the contacts. Meter read Zero.
    Then I began sucking air into my mouth with my lips on the spigot, I could hear the vacuum switch pop and meter went to zero ohms!
    Good

    If any of these switches fail or have a bad connection the Auger shuts down and the stove will stop!

    So I put everything back and turned and fired up the stove, when the Red Auger light came on the Auger turned!!

    Summary
    The slight aging of the safety switches caused a bad connection and stopped the stove from working!!
    Also temperature changes from winter to summer and fall can help to seperate the connection!

    No parts needed and saved the $100 to start service call !!!

    Attached Files:

    Helpful Sponsor Ads!





  2. smoke show

    smoke show Guest

    good job, Don
  3. Don2222

    Don2222 Minister of Fire

    Joined:
    Feb 1, 2010
    Messages:
    7,146
    Loc:
    Salem NH
    Thanks Smoke Show.

    Somehow I think if I called in the big service call for $100, they would of fixed it but then either replaced a few parts for more money or wiggled the wires to get it working and would not know for sure what was wrong.

    This way we all know what was wrong in case if it happens again! I am sure it will!

    Attached Files:

  4. coobie

    coobie Member

    Joined:
    Jan 20, 2010
    Messages:
    108
    Loc:
    southern michigan
    Don,great info.I got your PM also,Thanks again.coobie
  5. Don2222

    Don2222 Minister of Fire

    Joined:
    Feb 1, 2010
    Messages:
    7,146
    Loc:
    Salem NH
    Hello Coobie

    I finally found what seems to be really good stuff for all the stove's snap disc contacts and other contacts to really prevent these problems!!
    Carbon Conductive Grease!!

    Carbon Conductive Greese from Allied Electronics in Ft Worth Texas made by CG Chemicals!
    https://www.alliedelec.com/search/productdetail.aspx?SKU=70125869

    Attached Files:

  6. PoolGuyinCT

    PoolGuyinCT Feeling the Heat

    Joined:
    Jan 17, 2012
    Messages:
    364
    Loc:
    Plymouth CT
    "The but sucking air into my mouth with my lips on the spigot..."

    i must be exhausted, as i had to read that 4 or 5 times..

    nice troubleshootin'


    ray
  7. Don2222

    Don2222 Minister of Fire

    Joined:
    Feb 1, 2010
    Messages:
    7,146
    Loc:
    Salem NH
    Thanks ray, I fixed the English!

    Don
  8. Don2222

    Don2222 Minister of Fire

    Joined:
    Feb 1, 2010
    Messages:
    7,146
    Loc:
    Salem NH
    Hello

    Well I got the grease today. It is very black!

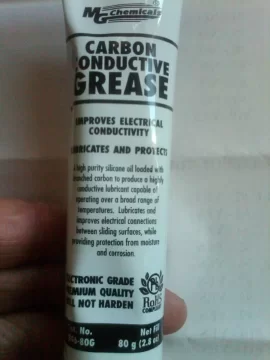

    Label
    MG Chemicals
    Improves Electrical Conductivity
    Lubricates and protects

    A high purity silicone oil loaded with branched carbon to produce a highly conductive lubricant capable of operating over a broad range of temperatures. Lubricates and improves electrical connections between sliding surfaces, while providing protection against mosture and corrosion.

    Electronic Grade
    Premium Quality
    Will Not Harden

    Attached Files:

  9. Don2222

    Don2222 Minister of Fire

    Joined:
    Feb 1, 2010
    Messages:
    7,146
    Loc:
    Salem NH
    Hello

    Well in the warm weather tonight while the stove was down, I unplugged the AC and took out the room blower and pulled out the Carbon Conductive Grease on the Astoria and greased those safety switches!!

    Also did the quick disconnects on the main fuse to the power cord.
    Also did the Low Limit Exhaust Sw on the left side of the stove but not shown here.

    See pics - Just like BrillCream - Just a little dab will do ya!

    Hi Limit Hopper Snap Disc - Electrical connection see yellow arrow

    Room Blower Limit Snap Disc - Electrical connection see yellow arrow

    Vacuum Exhaust Flow Switch - Electrical connection see yellow arrow

    Attached Files:

Thread Status:
Not open for further replies.

Share This Page
