Flush mount monitoring panel

mikefrommaine Posted By mikefrommaine, Dec 4, 2012 at 3:10 PM

  1. mikefrommaine

    mikefrommaine
    Guest 2.
    NULL

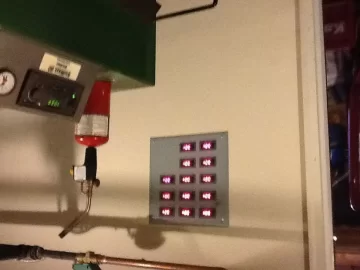

    Figure you guys would appreciate this. Cant get my wife to come downstairs to admire my handiwork!

    Sorry for the poor quality pic, ipad doesnt do well in low light


    Attached Files:

  2. avc8130

    avc8130
    Minister of Fire 2.
    NULL


    Dec 6, 2010
    1,047
    95
    Loc:
    God's Gift to Gassification
    I can applaud your handywork...but we need explanations! This will clearly just lead to more questions.
    ac

  3. Fred61

    Fred61
    Minister of Fire 2.
    NULL


    Nov 26, 2008
    2,018
    386
    Loc:
    Southeastern Vt.
    So you've got the boiler on the ceiling. I was wondering what was keeping that torch in place then it came to me --- magnets!

    Gasifier likes this.
  4. flyingcow

    flyingcow
    Minister of Fire 2.
    NULL


    Jun 4, 2008
    2,543
    329
    Loc:
    northern-half of maine
    Well since Fred explained it, now i understand, impressive install!! Original at best.

  5. Fred61

    Fred61
    Minister of Fire 2.
    NULL


    Nov 26, 2008
    2,018
    386
    Loc:
    Southeastern Vt.
    I was so giddy with my wise ass remarks I forgot to congratulate you on a nice job.

  6. mikefrommaine

    mikefrommaine
    Guest 2.
    NULL


    I didn't trust the downdrafter concept so I put the boiler in upside down, that way it was sure to draft right.

    lotawood, Gasifier and jjs777_fzr like this.
  7. dogwood

    dogwood
    Minister of Fire 2.
    NULL


    Mar 22, 2009
    693
    21
    Loc:
    Western VA
    Beautiful job. What does each gauge monitor?

    Mike

  8. JP11

    JP11
    Minister of Fire 2.
    NULL


    May 15, 2011
    1,448
    520
    Loc:
    Central Maine
    I see you are finally putting those tanks to use. I assume that's what you're set up to watch. I love mine..

  9. mikefrommaine

    mikefrommaine
    Guest 2.
    NULL


    Nothing yet, still have a bunch of soldering to do to extend the leads. But I will have probes all over the system. Six for the tanks, Boiler supply and return, all sides of the two diverting valves, house supply and return headers etc. I'll be able to see what's going on without walking around feeling the pipes to see how warm they are.

  10. mikefrommaine

    mikefrommaine
    Guest 2.
    NULL


    Yeah the storage was why I finally did the panel. Don't have the tanks hooked up yet. I have run the lines into the boiler room and have the tanks filled and holding 60 psi. Still another week or two before I make the final hookup.

  11. JP11

    JP11
    Minister of Fire 2.
    NULL


    May 15, 2011
    1,448
    520
    Loc:
    Central Maine
    Was cleaning them bad? Mine seemed to stink FOREVER, and I had a lot of rust flakes. Yours had been used.. so probably not the corrosion inside.

  12. mikefrommaine

    mikefrommaine
    Guest 2.
    NULL


    Not too bad filled them and added a gallon of simple green to each. I then hooked a circulator up and circulated between the tanks for a couple days. Followed by a couple rinses.

  13. Gasifier

    Gasifier
    Minister of Fire 2.
    NULL


    Apr 25, 2011
    3,152
    793
    Loc:
    St. Lawrence River Valley, N.Y.
    Nice job Mike! I love the panel. Really nice work. But that pic. I have to see it rightside up man! Click edit, then...............


  14. taxidermist

    taxidermist
    Minister of Fire 2.
    NULL


    Mar 11, 2008
    1,034
    15
    Loc:
    Fowlerville MI
    Nice work. Give us the low down on what you used I have seen other post with these temp gauges and I think this is my next project.

    Rob

  15. mikefrommaine

    mikefrommaine
    Guest 2.
    NULL


    Like others I used the sure electronic temperature Panel meters. Here is a current eBay listing

    http://www.ebay.com/itm/Digital-LED-Thermometer-Temperature-Auto-Car-Meter-C-F-/230854309893?pt=LH_DefaultDomain_0&hash=item35bffd3805

    My biggest problem was finding the right box that could fit all the meters that wasn't too big that I would bump into it. I settled on a structured media panel. I cut out the slots with a dremel tool, took a while since the box is metal. The box has a cut out for an outlet in the bottom right so the bottom row can only have two meters. Had to paint the cover grey to look right to me.

    http://www.amazon.com/Enclosure-with-Cover-14-White/dp/B00022749G/ref=sr_1_3?ie=UTF8&qid=1355081497&sr=8-3&keywords=media+panel

    For power I used an old wall wart. Just make sure it outputs do voltage I found some in my junk drawer that output 24 vac.

    http://www.amazon.com/AC-DC-ADAPTER-12VOLTS-300mA-2-1mm/dp/B0071P4JVI/ref=sr_1_3?s=electronics&ie=UTF8&qid=1355082274&sr=1-3&keywords=Wall+wart+12+vdc

  16. mikefrommaine

    mikefrommaine
    Guest 2.
    NULL


    There are some media panels that are hinged which would make the wiring easier. Couldn't find one locally though.

  17. taxidermist

    taxidermist
    Minister of Fire 2.
    NULL


    Mar 11, 2008
    1,034
    15
    Loc:
    Fowlerville MI
    Thanks Mike
